ATEN 2-Port 8K HDMI Splitter

2-Port 8K HDMI Splitter

Key Features

• EDID Sync™ – avoids boot-up display issues & optimizes resolutions
• One HDMI source shares two 8K @ 60Hz / 4K @ 120Hz displays
• LPCM 7.1, Dolby® Digital & DTS-HD Master Audio™
• Supports VRR & ALLM

Description

The VS5812 is a 2-Port 8K HDMI Splitter engineered to deliver state-of-the-art visual performance from a single source to dual displays. Compact, robust, and effortless to set up, the VS5812 is the perfect choice for premium home theaters, high-end gaming setups, professional studios, and commercial AV environments seeking uncompromised 8K performance. Supporting resolutions up to 4K@120Hz and 8K@60Hz, the VS5812 unlocks unprecedented clarity and detail, bringing ultra-realistic images to life with breathtaking sharpness and precision. Featuring EDID Sync™, the splitter ensures HDMI and HDCP 2.3-compliant visual brilliance at all times. Enjoy vivid, lifelike visuals with vibrant color depth, supported by HDR10+, Dolby Vision™, VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and Deep Color.

EDID Sync™ Smart Display Optimization
Automatically optimizes resolutions and prevents display issues for flawless display presentation

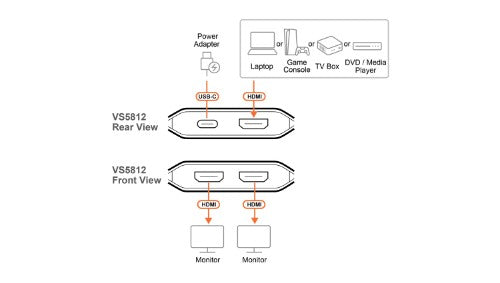

Extreme Dual-Display Resolution Distribution
Shares one HDMI source across two displays, delivering simultaneous 8K @ 60Hz and 4K @ 120Hz visuals

Variable Refresh Rate (VRR)
Synchronizes frame rate to eliminate screen tearing and stutter for ultra-smooth gameplay

Auto Low Latency Mode (ALLM)
Automatically switches to game mode, dramatically reducing input lag for responsive control

HDMI 3D/Deep Color, HDR10+, HDCP 2.3 Compatible
Guarantees stable performance, broad compatibility, and superior image quality

Master-Class Audio Immersion
Full support for LPCM 7.1, Dolby® Digital & DTS-HD Master Audio™ delivers theatrical-quality surround sound

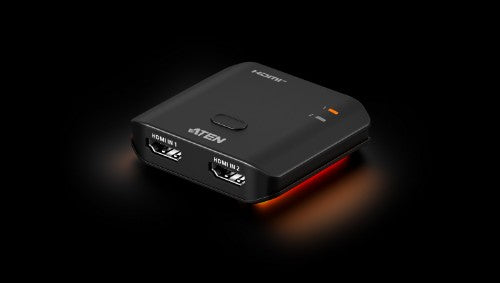

Pushbutton Output Control
Instantly enables or disables HDMI out 2 with a press of the pushbutton for intuitive, hands-on display management

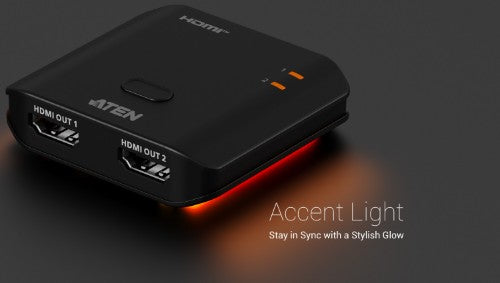

Aesthetic Compact Form
Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting

Specifications

Ports & interfaces
Video ports quantity	3
Video port type	HDMI

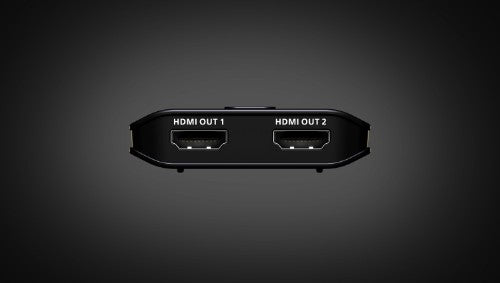

Video out	2x HDMI
Features
Housing material	Polycarbonate (PC)
Maximum refresh rate	60 Hz
LED indicators	Yes
Maximum resolution	7680 x 4320 pixels
HDCP	Yes
Maximum operating distance	1.5 m
Product colour	Black
HD type	8K Ultra HD
HDCP version	2.3
Data transfer rate	48 Gbit/s
Country of origin	China
Power
Output current	1 A
USB powered	Yes
Output voltage	5 V
Weight & dimensions
Weight	30 g
Width	56.5 mm
Depth	61 mm
Height	15.2 mm
Packaging content

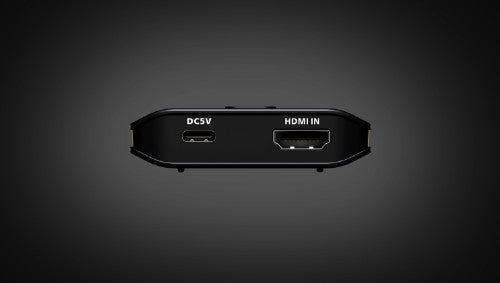

Cables included	USB Type-A to USB Type-C
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Video
Maximum refresh rate	60 Hz
Maximum resolution	7680 x 4320 pixels
HDCP	Yes
Colour
Product colour	Black
Indication
LED indicators	Yes
Technical details
Housing material	Polycarbonate (PC)
Video out	2x HDMI
Maximum operating distance	1.5 m
Logistics data
Products per master (outer) case	20 pc(s)
Harmonized System (HS) code	85437090
Country of origin	China
