ATEN 19" LCD Console (USB - PS/2 VGA)

ATEN

ATEN 19" LCD Console (USB - PS/2 VGA)

Read reviews
SKU: CL1000N-ATA-AU
Your price $999.31
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

19" LCD Console (USB - PS/2 VGA)

Key Features

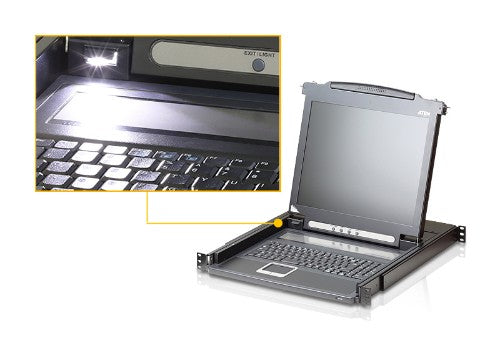

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17" or 19” LED-backlit LCD monitor – in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Supports input video resolutions up to 1920 x 1200@60 Hz

Description

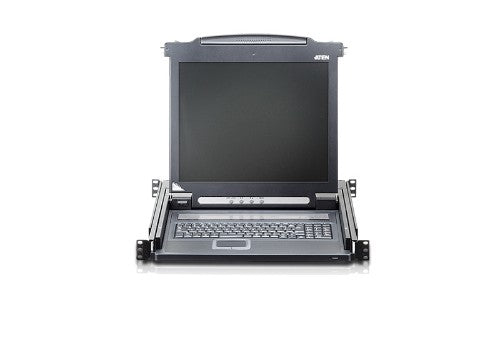

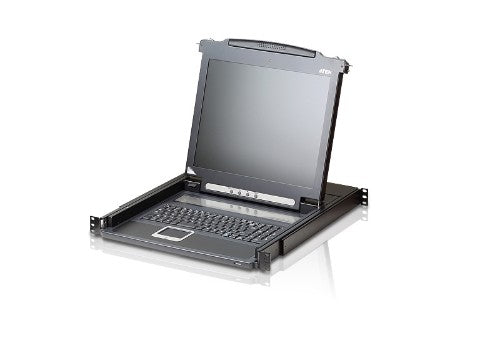

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" or 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing.
1x CL1000M or CL1000N with Standard Rack Mount Kit
1x 2L-5202UP Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x LIN2-418K-E12G Power Cord
1x User Instructions

Specifications

Display
Display LCD
Display diagonal 48.3 cm (19")
Technical details
Number of computers controlled 1
LED indicators Yes
Rack mounting Yes
Rack capacity 1U
Operating relative humidity (H-H) 0 - 80%
Maximum resolution 1280 x 1024 pixels
Product colour Black
Cables included KVM
Push button Yes
Ports & interfaces
Video port type VGA
Mouse port type PS/2
Keyboard port type PS/2
VGA (D-Sub) ports quantity 1
Keyboard
Keyboard layout QWERTY
Keyboard language US English
Power
Input current 1 A
Power consumption (typical) 24 W
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 11.6 kg
Width 483 mm
Height 44 mm
Depth 585.2 mm
Packaging data
Package width 668 mm
Package depth 718 mm
Package height 135 mm
Package weight 14.2 kg
Packaging content
Manual Yes
Rack mount kit Yes
AC adapter included Yes
Cables included KVM
Logistics data
Master (outer) case width 668 mm
Master (outer) case length 718 mm
Master (outer) case height 135 mm
Master (outer) case gross weight 14.2 kg
Products per master (outer) case 1 pc(s)
Master (outer) case net weight 11.6 kg
Brand
ATEN
SKU
CL1000N-ATA-AU
