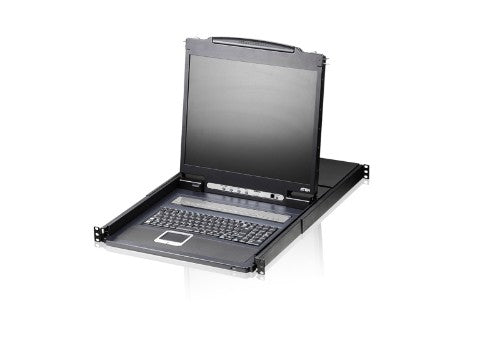

16-Port 19" LCD KVM Switch (USB - PS/2 VGA)
Key Features

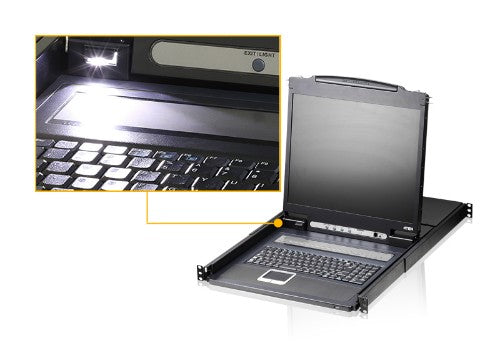

- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- A single console controls up to 256 computers by cascade to 2 levels and connect up to 16 switches
- Integrated KVM console with 19" LED-backlit LCD panel
- Dual Interface – supports computers with PS/2 or USB keyboards and mice
- Multiplatform support – Windows 2000/XP/Vista, Linux, Mac, and Sun
- Supports USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
- Superior video quality – up to 1280 x 1024 @ 75 Hz; DDC2B
- Convenient computer switching via front panel push buttons, hotkeys, or multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Broadcast mode – operations simultaneously performed on all selected computers
- Hot pluggable – add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Rack mountable
- Optional rack mount kits available including easy installation options
- Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
Description
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.
1x CL1316 LCD KVM Switch with Rack Mount Kit
2x 2L-5202U Custom KVM Cable Cable (1.8m)
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Specifications
| Display |
|---|
| Response time |
5 ms |
| Display number of colours |
16.78 million colours |
| Display |
LCD |
| Display diagonal |
48.3 cm (19") |
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
170° |
| Pixel pitch |
0.294 x 0.294 mm |
| On Screen Display (OSD) |
Yes |
| Display resolution |
1280 x 1024 pixels |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Technical details |
|---|
| Daisy chain |
Yes |
| Number of computers controlled |
16 |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Operating relative humidity (H-H) |
0 - 80% |
| Maximum resolution |
1920 x 1200 pixels |
| Material |
Metal, Plastic |
| Hot-Plug support |
Yes |

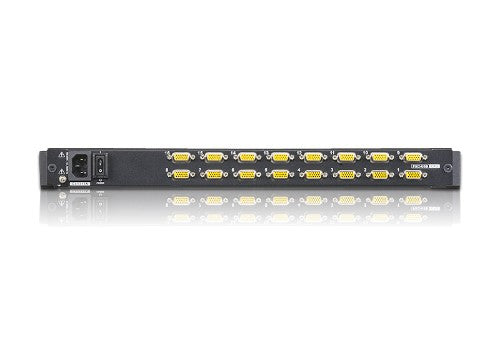

| Connector type |
SPHD |
| Product colour |
Black |
| Cables included |
AC, KVM |
| Keyboard |
|---|
| Hot keys |
Yes |
| Keyboard layout |
QWERTY |
| Keyboard language |
US English |
| Built-in touchpad |
Yes |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50 - 60 Hz |
| Input current |
1 A |
| Power consumption (typical) |
26.1 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
13.3 kg |
| Width |
689 mm |
| Height |
44 mm |
| Depth |
483 mm |
| Packaging data |
|---|
| Package width |
668 mm |
| Package depth |
833 mm |
| Package height |
135 mm |
| Package weight |
16.3 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
AC, KVM |
| Logistics data |
|---|
| Master (outer) case width |
668 mm |
| Master (outer) case length |
833 mm |
| Master (outer) case height |
135 mm |
| Master (outer) case gross weight |
16.3 kg |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case net weight |
13.3 kg |
