ATEN 0U Basic PDU with Surge Protection

ATEN

ATEN 0U Basic PDU with Surge Protection

Read reviews
SKU: PE0216SG-AT-G
Your price $287.10
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

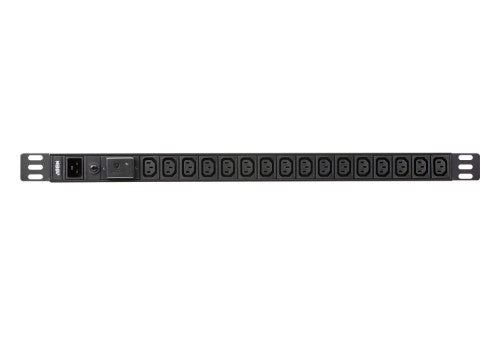

0U Basic PDU with Surge Protection

Key Features

  • Space saving – 0U rack mount design
  • IEC or NEMA outlet models
  • Overcurrent protection
  • Surge protection
  • Aluminum material
  • Works with data centers, server rooms, and telecom equipment

Description

ATEN's Basic PDU family is extended with 0U members containing 16 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.
1 x power distribution unit
1 x power cord
1 x L-shaped mounting kit
1 x user instructions

Specifications

Design
PDU types Basic
Product colour Black
Certification CE A CE,LVD
Rack capacity 0U
Housing material Aluminium
Ports & interfaces
Power plug C20 coupler
AC outlets quantity 16 AC outlet(s)
AC outlet types C13 coupler
Features
Cable length 3 m
Certification CE A CE,LVD
Surge protection Yes
Ergonomics
Cable length 3 m
Power
Nominal input voltage 100-240 V
Maximum current 16 A
Load capacity 3840 VA
Power protection features Over current
Surge protection Yes
AC input frequency 50-60 Hz
Certificates
Certification CE A CE,LVD
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 3000 m
Weight & dimensions
Weight 1.66 kg
Width 715.6 mm
Depth 44.4 mm
Height 60 mm
Package width 187 mm
Package depth 730 mm
Package height 166 mm
Package weight 2.08 kg
Packaging content
Cables included AC
Manual Yes
Packaging data
Package width 187 mm
Package depth 730 mm
Package height 166 mm
Package weight 2.08 kg
Logistics data
Master (outer) case width 187 mm
Master (outer) case length 730 mm
Master (outer) case height 166 mm
Master (outer) case gross weight 2.08 kg
Products per master (outer) case 1 pc(s)
Master (outer) case net weight 1.66 kg
Brand
ATEN
SKU
PE0216SG-AT-G
