Atdec TH-1040-CTSW monitor mount / stand Black, White

Medium display mount, Max weight: 25kg, VESA up to 200x200

Key Features

• Adjustable telescopic pole up to 1800mm
• Also available in White
• Can be upgraded to a dual display back-to-back or dual vertical configurations
• Can be extended via additional 1m pole (TH-1040-EXT-1000-1H)
• Versatile display position adjustments
• Advanced cable management
• All mounting hardware included

Description

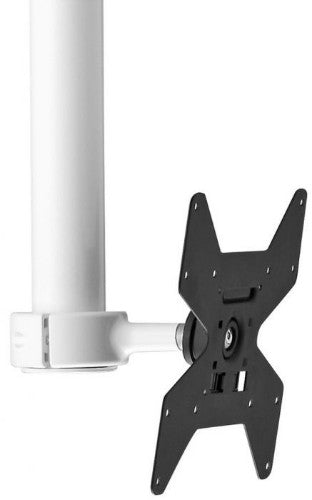

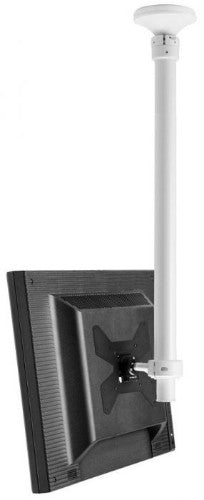

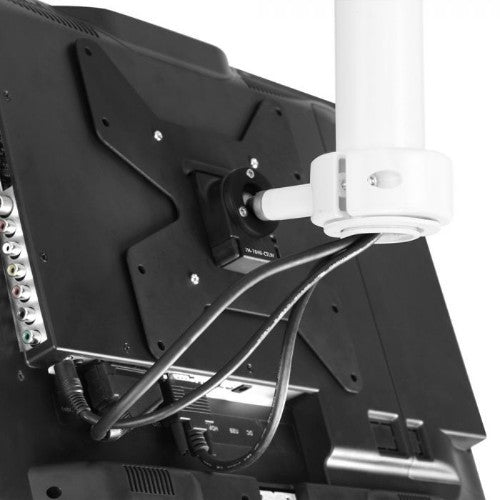

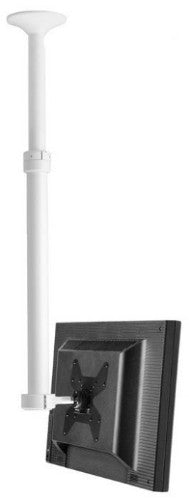

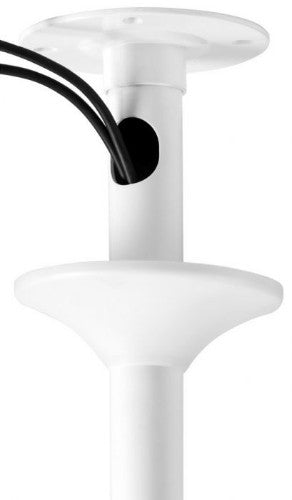

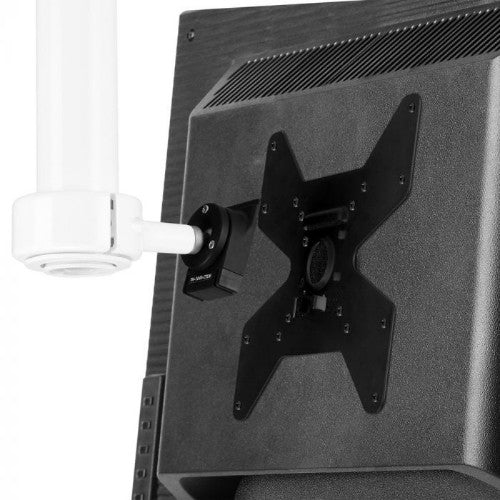

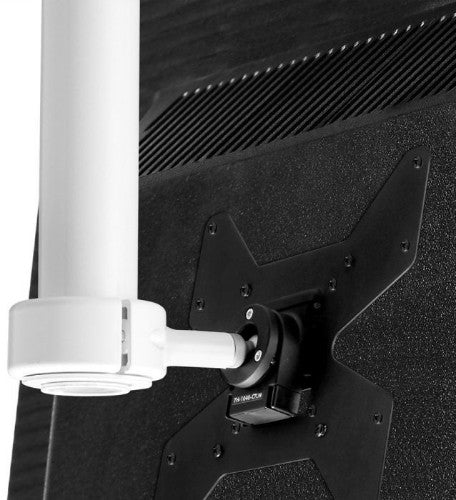

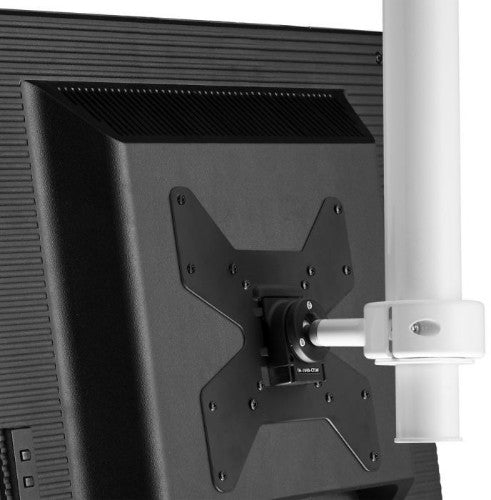

The TH-1040-CTSW is a cutting edge ceiling mount offering superior display versatility, combined with enhanced safety features and hassle-free installation. The "donut" mounting head effortlessly rotates the screen through 360 degrees around the pole and to maximise display impact the VESA Ball Mount can infinitely adjust display position by 20 degrees in any direction. Display height is also customised with the telescopic pole adjustments. Installation is simple, with in-built safety features to prevent the unlikely event of the telescopic poles separating. Once installed, you're guaranteed a clean and professional finish by fully internal cable management, a dress cover to hide the ceiling connection and a clean pole without screw holes. You can also customize this mount to support two screens in a back to back (TH-1040-CT-B2B sold separately). or dual-vertical configuration (TH-1040-CT-DV sold separately ).

Specifications

Mounting
Maximum weight capacity	25 kg
Panel mounting interface	75 x 75,100 x 100,200 x 100,200 x 200
Number of displays supported	1
Mounting type	Ceiling
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	200 x 200 mm
Ergonomics
Cable management	Yes
Tilt angle range	-20 - 20°
Angle of rotation	360°
Pan range	-20 - 20°
Design
Product colour	Black, White
Housing material	Aluminium, Steel
Orientation	Landscape/Portrait
Technical details
Cable management	Yes
Weight & dimensions
Package width	240 mm
Package depth	555 mm
Package height	100 mm
Package weight	5.5 kg
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	570 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	17 kg
Other features
Mounting type	Ceiling
