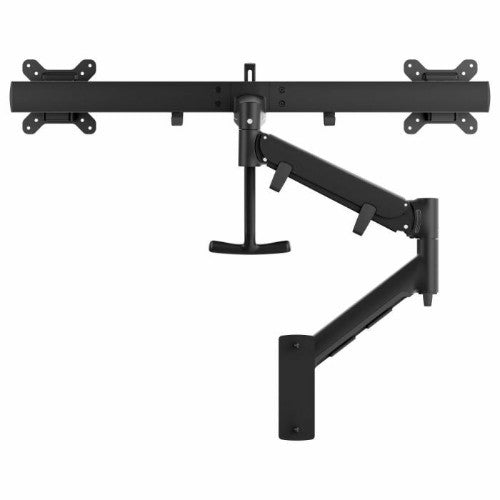

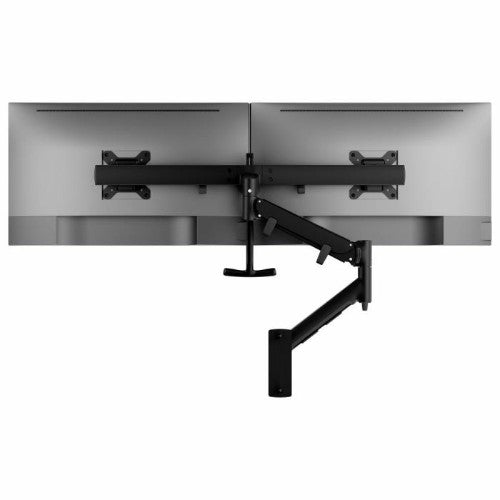

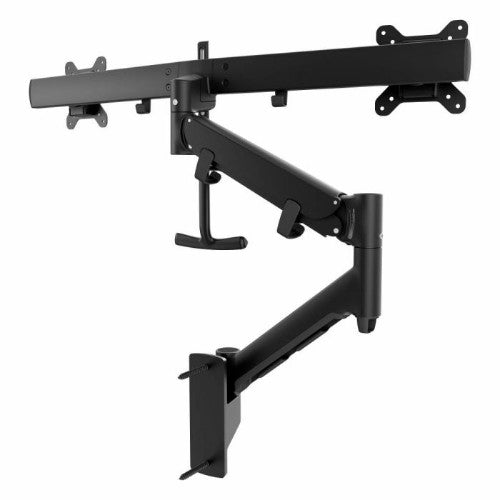

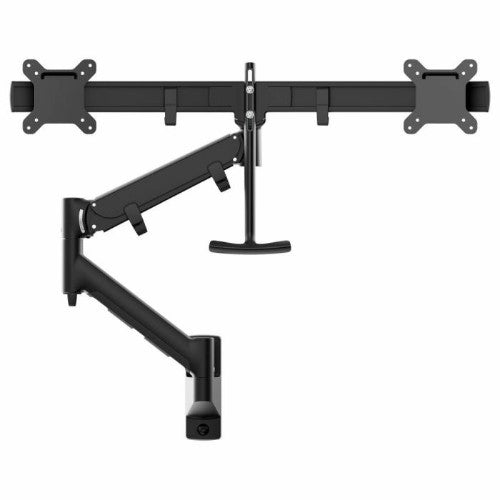

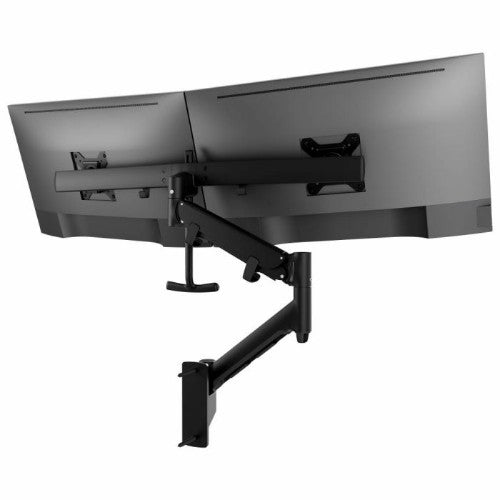

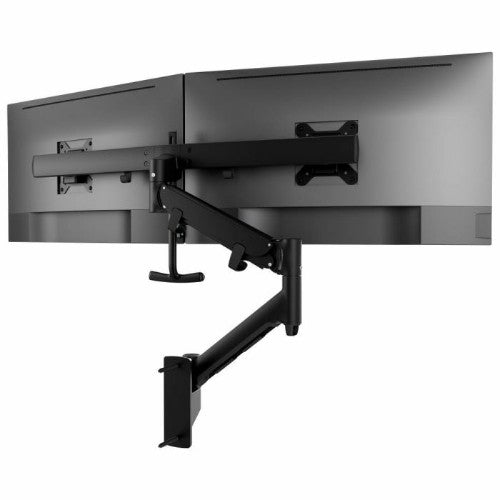

Atdec AWMS-RHXW-B monitor mount / stand 68.6 cm (27") Wall Black

-20°/ 20°, 180°/360°, (2-7kg) per monitor, VESA 75 x 75, 100 x 100, Black

Key Features

• Assymetric touchscreen & monitor combo
• Point of Service applications
• Bulk packaging for mass installation
• Dynamic arm for focal distance control
• Individual tilt & pan capabilities
• Landscape to portrait monitor rotation
• Easy installation at scale
• Visual tension gauge for fast multi-setups
• Generous & accessible cable management
• Quick release/attachment mechanism for fast installation

Description

Tandem wall mount
AWMS-RHXW mounts two monitors in tandem from a secure wall fixing. This configuration is typically requested for education, medical, and point of service (POS) applications.

Screens mounted to this solution are often assymetric, with one a touchscreen input device and the other a simple output display. AWMS-RHXW accomodates uneven loads to 11lb (5kg) differential. A convenient handle enables easy adjustment of the arm, for optimal focal distance and ergonomics. Each monitor has independent tilt, pan, and rotation. The nature of the tandem crossbar ensures the mounted devices remain aligned regardless of movement frequency.

Specifications

Mounting
Maximum weight capacity (per display)	7 kg
Maximum weight capacity	7 kg
Maximum screen size	68.6 cm (27")
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	2
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Screws
Distance to the wall (min)	9 cm
Distance to the wall (max)	70.8 cm
Maximum weight capacity (per curved/ultra-wide display)	2 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Height adjustment	Yes
Swivel angle	180°
Tilt angle range	-20 - 20°
Number of arms	2
Height adjustment type	Manual
Tilt adjustment	Yes
Swivelling	Yes
Design
Easy to install	Yes
Product colour	Black
Housing material	Aluminium
Orientation	Landscape/Portrait
Made with recycled materials	Yes
Packaging data
Quantity per pack	1 pc(s)
Manual	Yes
Packaging content
Manual	Yes
VESA mount included	Yes
Technical details
Cable management	Yes
Warranty period	10 year(s)
Other features
Made with recycled materials	Yes
Warranty period	10 year(s)
Mounting type	Wall
Mounting	Screws
