Atdec AWMS-46W35-B monitor mount / stand 46 cm (18.1") Black Wall

18.1", 40°/ -15°, 180°, (12kg) flat monitors, (8kg) curved monitors, VESA 75 x 75, 100 x 100, Black

Key Features

• Improves ergonomics of any workplace and saves valuable desk space
• Modular, adaptable and upgradeable design
• Easy to install and re-configure with quick display release and arm fixing mechanism
• Built-in optional arm rotation limiters to prevent interference with walls, partitions or other displays
• Made of durable aluminum that can be easily recycled at the end of life
• Advanced cable management
• Choice of desk mounting options

Description

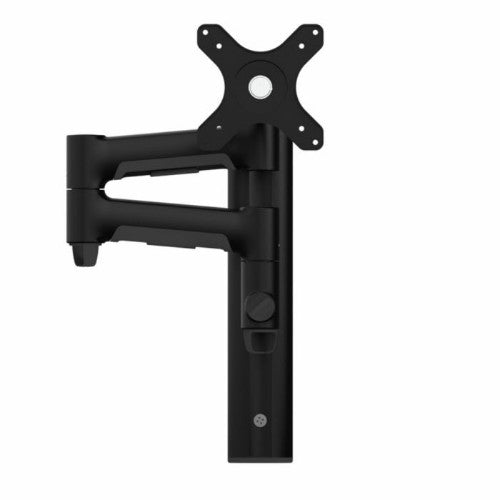

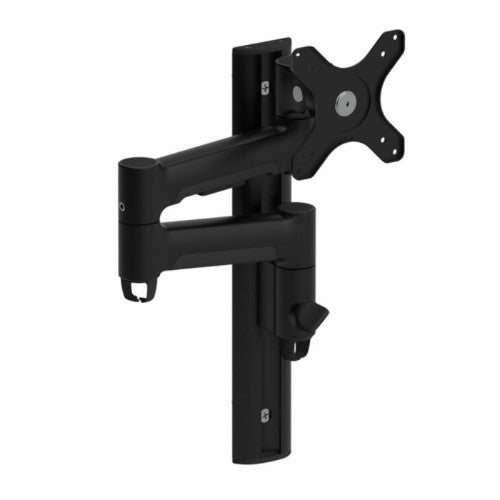

Single monitor arm channel wall mount
The Atdec AWMS-46W35 is a single 18.1" monitor arm attached to a 13.7" wall channel. This solution is part of the Atdec modular range and consists of the following individual components:

1 x AWM-A46 arm and 1 x AWM-W35 wall channel.

It offers an enhanced range of motion and height adjustability. Perfect for public display, point of sale (POS) and medical environments. Touch screen compatible.

Upgrades: The display mounting head can be replaced with the Atdec notebook holder AWM-HN (sold separately). Extended wall channel height provides support for an additional display, notebook or tablet.

Specifications

Mounting
Maximum weight capacity (per display)	12 kg
Maximum weight capacity	12 kg
Maximum screen size	46 cm (18.1")
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Screws
Distance to the wall (min)	11 cm
Distance to the wall (max)	44.7 cm
Maximum weight capacity (per curved/ultra-wide display)	8 kg
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Height adjustment	Yes
Swivel angle	180°
Tilt angle range	40 - -15°
Number of arms	2
Height adjustment type	Manual
Tilt adjustment	Yes
Swivelling	Yes
Design
Easy to install	Yes
Product colour	Black
Housing material	Aluminium
Orientation	Landscape/Portrait
Recycled material	Yes
Technical details
Cable management	Yes
Warranty period	10 year(s)
Packaging content
Manual	Yes
VESA mount included	Yes
Packaging data
Manual	Yes
Quantity per pack	1 pc(s)
Other features
Mounting type	Wall
Mounting	Screws
