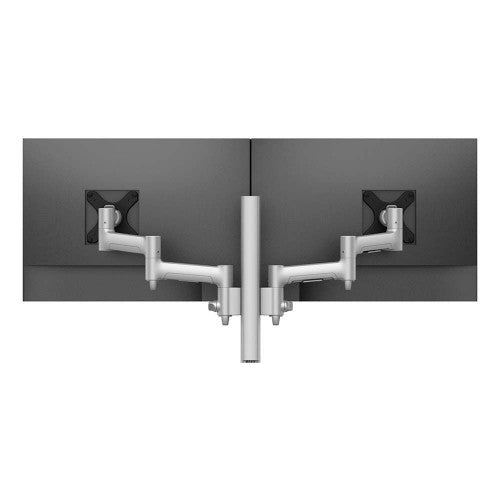

Atdec AWMS-2-4640 46 cm (18.1") Desk White

Dual 18.11" monitor arms on 15.75" post, 2x 18.1" arm, 1x 15.7” post, 1x F-clamp desk fixing, 0-12kg, VESA 75x75, 100x100, 360° pole, - 25°-45°, 0-318mm Height

Key Features

• Improves ergonomics of any workplace and saves valuable desk space
• Modular, adaptable and upgradeable design

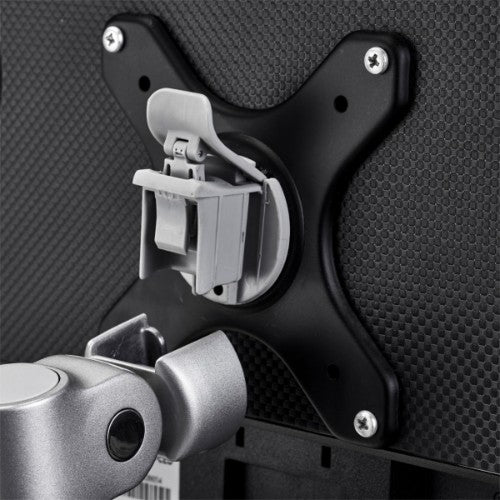

• Easy to install and re-configure with quick display release and arm fixing mechanism
• Built-in optional arm rotation limiters to prevent interference with walls, partitions or other displays
• Made of durable aluminum that can be easily recycled at the end of life
• Advanced cable management
• Choice of desk mounting options
• Available in Silver, Black or White finish

Description

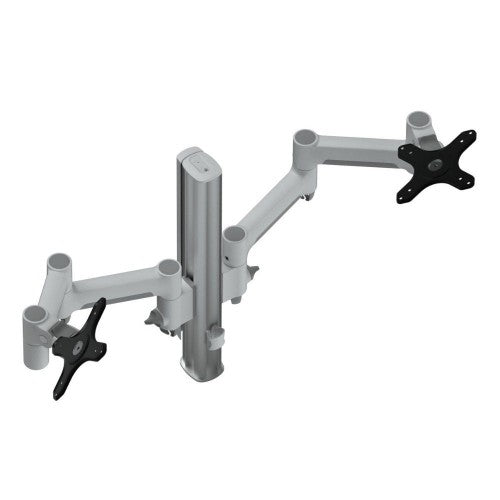

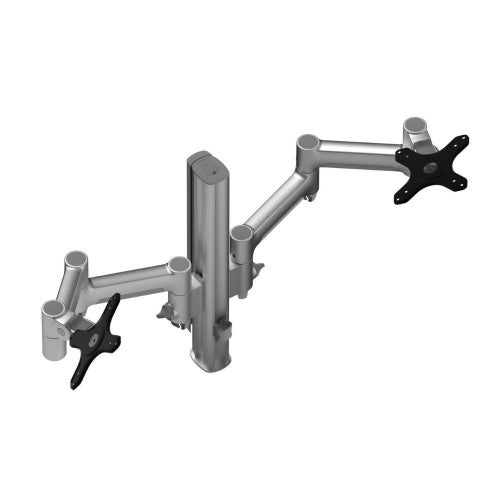

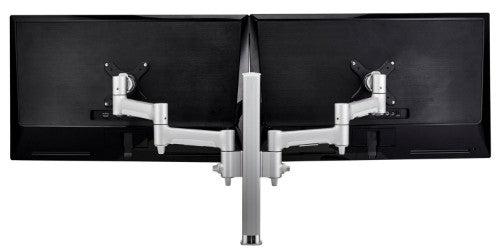

The AWMS-2-4640 is a dual 18” arm combination attached to a 15.7” post. The two arms can be installed in a dual row side-by-side or back-to-back configuration. Display height, optimal viewing angle and orientation can be set to individual requirements. Built from lightweight and yet durable aluminum, the mount can be easily recycled at the end of its life.

This solution is part of the Atdec modular family and consists of the following individual components:

1 x AWM-P40G post and 2 x AWM-A46 display arms.
Choose your preferred desk fixing option (not included)

Ideal for: Displays up to 32” in a landscape or portrait orientation. The two 18” arms can be installed in a side-by-side or back-to-back configuration in any of the four channels of the 15.7” post. Perfect for screen real estate-demanding applications and multi-user environments in applications where display height does not require frequent adjustment.

Upgrades: One or both display mounting heads can be replaced with the AWM-HN notebook holder (sold separately).
Curved, deep and offset VESA displays exert additional leverage on the mount. This extra force can exceed mount capacity, even with a display within the stated weight range.

Specifications

Mounting
Maximum weight capacity (per display)	7.9 kg
Maximum weight capacity	12 kg
Maximum screen size	46 cm (18.1")
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Bolt-through
Maximum weight capacity (per curved/ultra-wide display)	12 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 318 mm
Tilt angle range	-25 - 45°
Angle of rotation	360°
Number of arms	2
Height adjustment type	Manual
Rotating	Yes
Design
Product colour	White
Housing material	Aluminium
Orientation	Landscape/Portrait
Other features
Mounting type	Desk
Mounting	Bolt-through
