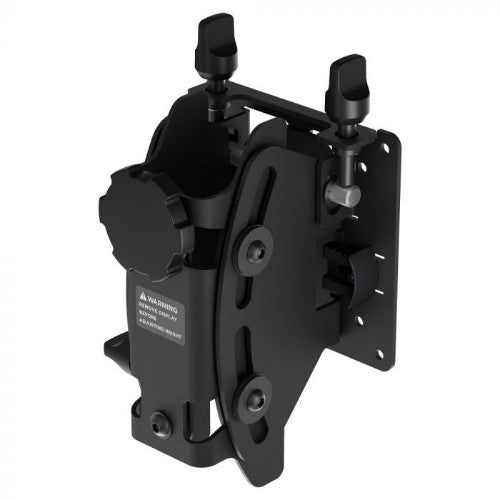

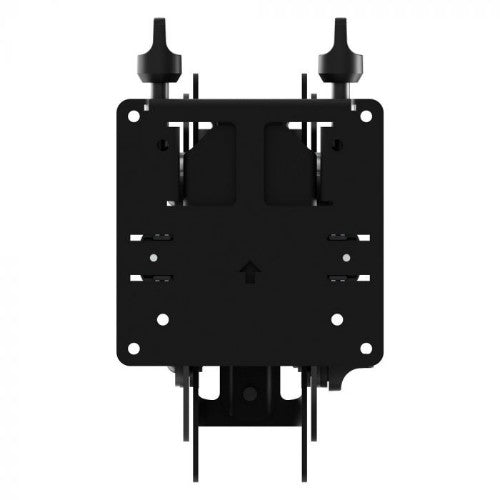

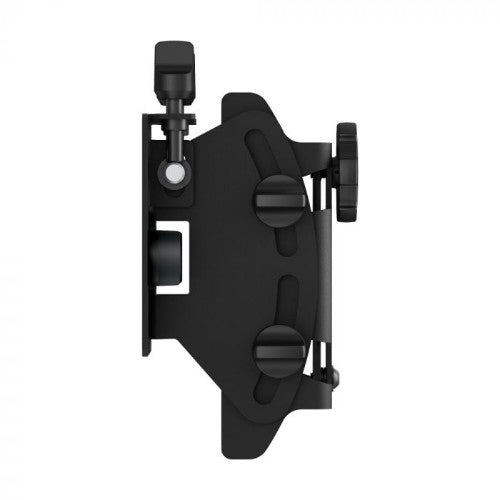

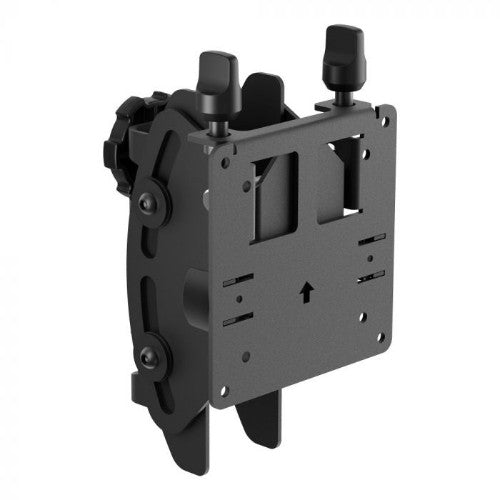

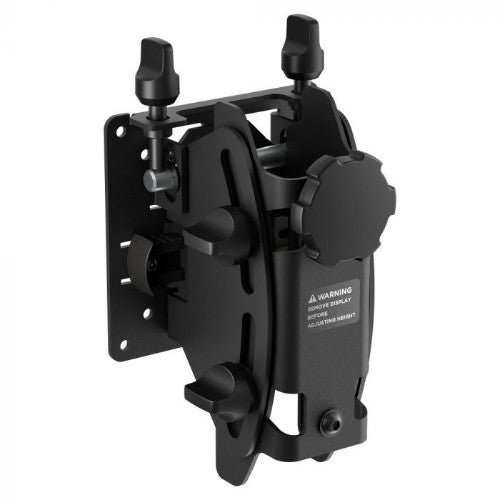

Atdec AWM-BT-B monitor mount accessory

Super heavy duty tilt head

Description

AWM-BT is a super heavy-duty VESA head for mounting large and deeply curved monitors, including super ultrawide, to 55". It is part of the AWM family and should be assembled with an AWM post, most commonly the AWM-P40G or AWM-P75G.

This head suits all Samsung 49" displays and is designed for robust versatility. In addition to tilt adjustment -8° to +12° back and forward, this head has micro adjustments that are particularly useful for mounting two stacked ultrawide displays. Fine height adjustment of -0.2" to +0.2" (+/-6mm) and tilt adjustment -3° to +3° enables precise positioning and elimination of gaps where two displays are stacked.

This head has VESA 75x75 and 100x100. Steel construction. 10 year warranty.

Specifications

Mounting
Product type	Device plate
Maximum screen size	139.7 cm (55")
Minimum screen size	61 cm (24")
Number of displays supported	1
Maximum weight capacity	25 kg
Panel mounting interface	75 x 75,100 x 100 mm
Tilt angle range	-8 - 12°
Product colour	Black
Features
Product type	Device plate
Maximum screen size	139.7 cm (55")
Minimum screen size	61 cm (24")
Number of displays supported	1
Maximum weight capacity	25 kg
Panel mounting interface	75 x 75,100 x 100 mm
Tilt angle range	-8 - 12°
Product colour	Black
Technical details
Product colour	Black
Maximum weight capacity	25 kg
Panel mounting interface	75 x 75,100 x 100 mm
Tilt angle range	-8 - 12°
Colour
Product colour	Black
