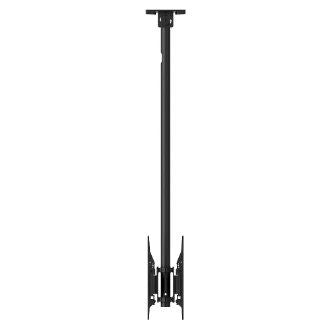

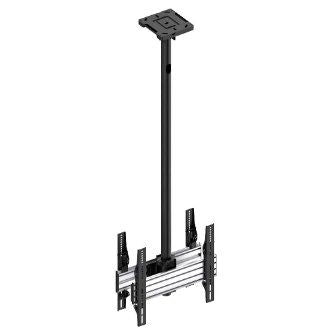

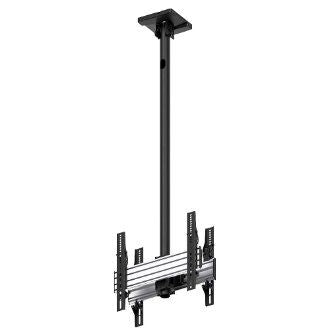

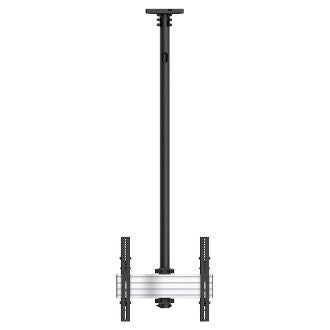

Atdec ADBS-B2B-4TC signage display mount Black

Ceiling mount for two back-to-back displays on 59.05" (1.5m) pole, tilt brackets, up to 50kg, Black

Description

A pre-configured digital signage solution using the ADB family of products.

This solution is for two back-to-back displays, each up to 110lb (50kg), suspended from the ceiling. The displays mount to tilting brackets so the displays can be angled downward (typically) for visibility by pedestrians. This solution is most often used in retail, hospitality, and public spaces for advertising, wayfinding, and quick service restaurant menus.

Atdec provides modular solutions for digital signage that enable us to mount virtually any combination of screens in every configuration you can imagine. You are welcome to consider pre-configured solutions or contact us for a custom specification. Atdec mounts are designed for installers and operators, with features to expedite set up and simplify display access and maintenance.

Retail fitout, Pro AV, and design partners rely on Atdec's rigorous design and testing processes, and robust product operation over a long service life. See more digital signage solutions and contact us for engineering support.

Specifications

Mounting
Maximum weight capacity (per display)	25 kg
Mounting type	Ceiling
Maximum weight capacity	50 kg
Number of displays supported	2
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400,800 x 200,800 x 400
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 400 mm
Ergonomics
Tilt angle range	-15 - 5°
Tilt adjustment	Yes
Design
Product colour	Black
Housing material	Aluminium, Steel
Technical details
Orientation	Landscape/Portrait
Compatible pole diameter (max)	15 m
