50" - 100", up to 90.7kg, VESA 100 x 100 to 800 x 600, Tilt +5° / -10°, Pan +/- 90°, Rotation +/- 5˚, Steel, Black
Key Features
- Arm extension to 39” (980mm) from wall
- Lateral shift during installation
- Pan, up/down tilt, and rotational adjustment with display mounted
- Integrated cable management
- VESA mounting pattern 100x100 to 800x600
- Pre-assembled for quick and easy installation
Description

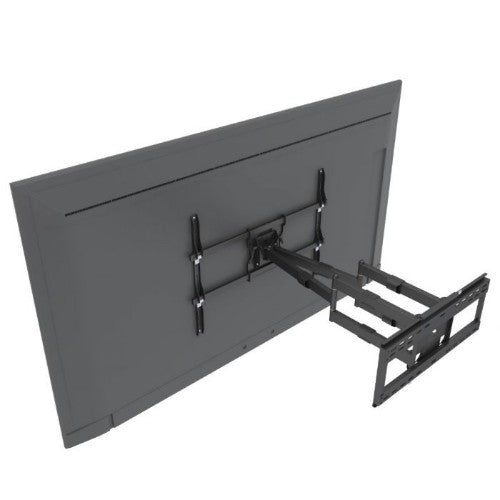

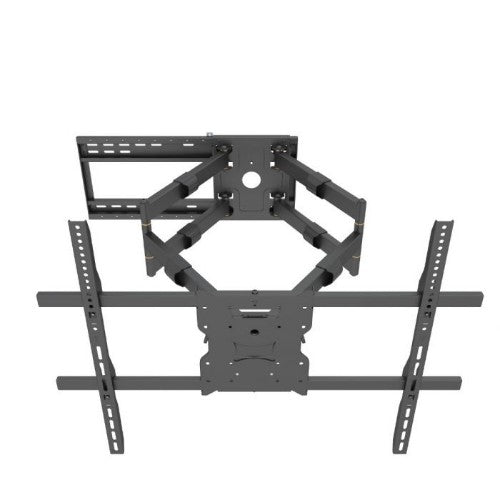

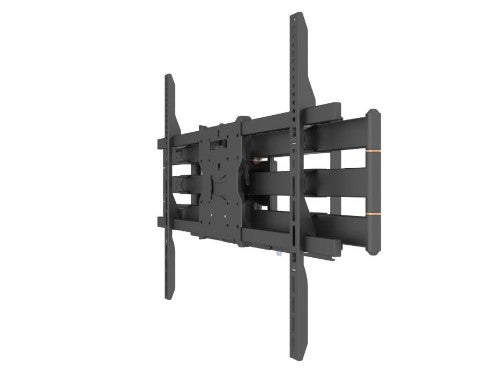

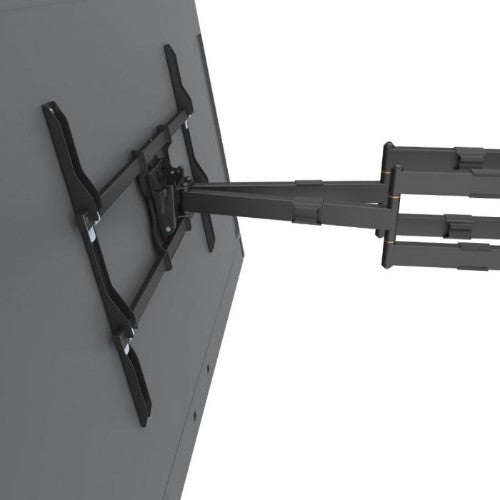

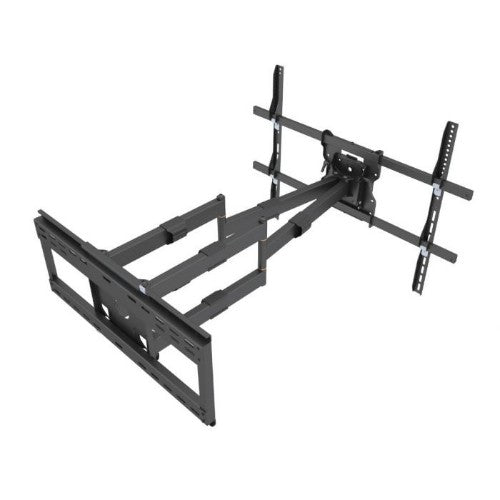

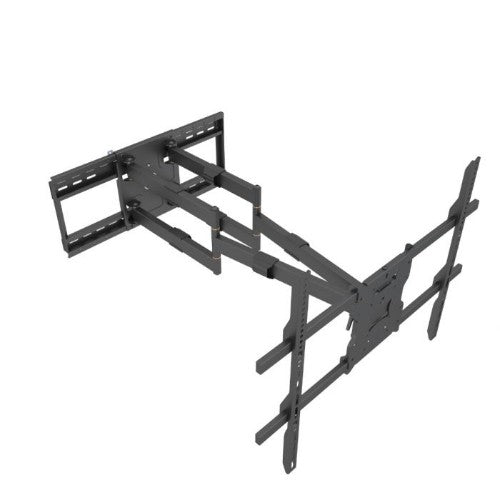

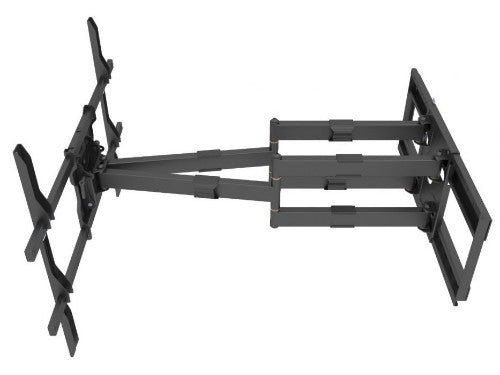

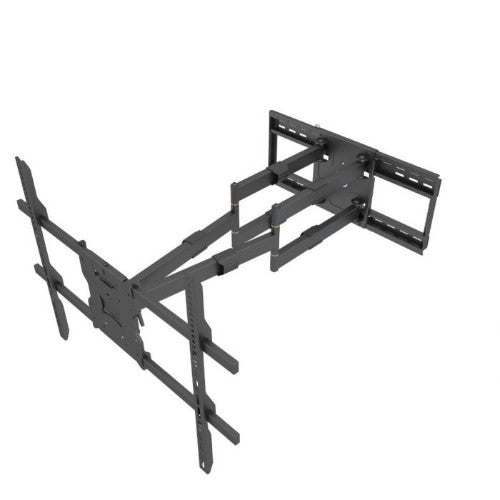

AD-WM-9080 is designed for large and/or heavy displays, in installations requiring full motion and extremely long arm extension. AD-WM-9080 enables the lateral shift of the centre of the display, upward and downward tilt, and rotational display adjustment – plus almost a metre extension from the wall. The mount accommodates use on stud walls with 24” stud spacing.
This mount is rated for 200lbs (90.7kg) displays and a recommended size of 50” to 100”. When used with displays at the lower end of the size range, even greater freedom of movement is available.
AD-WM-9080’s flexibility starts with precise display positioning, due to its +/- 7.9” (+/- 200mm) lateral shift capability. Lateral shift is done during installation or while the display is dismounted. Once installed, the AD-WM-9080 sits 4” (110mm) from the wall and can extend to a maximum distance of 39” (980mm). The mounted display can pan +/- 90°, tilt +5° to -10° upward and downward, and rotationally adjust +/- 5° for optimal audience viewing. Standard VESA patterns 100x100 to 200x200 are expanded on with universal mounting patterns to 800x600. These features make AD-WM-9080 one of the most versatile and adaptive full motion wall mounts available.
Constructed primarily of steel for heavy duty operation and long service life, AD-WM-9080 is finished in black and has integrated cable management. It suits commercial, retail, domestic, and light industrial environments, and serves virtually all applications. Curved and displays with offset VESA exert different force that may affect the stated weight range - contact Atdec with any questions. 10 year warranty.
Designed for easy installation, AD-WM-9080 arrives pre-assembled with all display mounting fasteners. Wall mounting hardware is not included.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Maximum weight capacity |
90.7 kg |
| Minimum screen size |
127 cm (50") |
| Maximum screen size |
2.54 m (100") |
| Panel mounting interface |
100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,400 x 600,400 x 800,600 x 200,600 x 400,800 x 200,800 x 400,800 x 600 |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
800 x 600 mm |
| Ergonomics |
|---|
| Height adjustment |
No |
| Tilt angle range |
-10 - 5° |
| Angle of rotation |
5° |
| Pan range |
-90 - 90° |
| Cable management |
Yes |
| Distance to the wall (min) |
11 cm |
| Distance to the wall (max) |
98 cm |
| Rotating |
Yes |
| Tilt adjustment |
Yes |
| Design |
|---|
| Product colour |
Black |
| Cable management |
Yes |
| Housing material |
Steel |
| Technical details |
|---|
| Mounting type |
Wall |
| Orientation |
Landscape |
| Extension arm (max) |
98 cm |
| Easy to install |
Yes |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Packaging data |
|---|
| Package width |
348 mm |
| Package depth |
1065 mm |
| Package height |
117 mm |
| Package weight |
20.3 kg |
| Quantity per pack |
1 pair(s) |
| Mounting kit |
Yes |
| Other features |
|---|
| Mounting type |
Wall |
