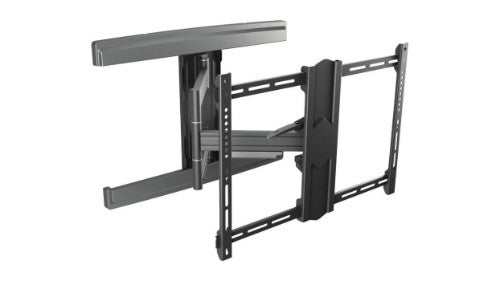

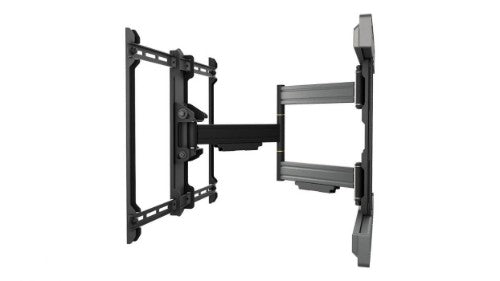

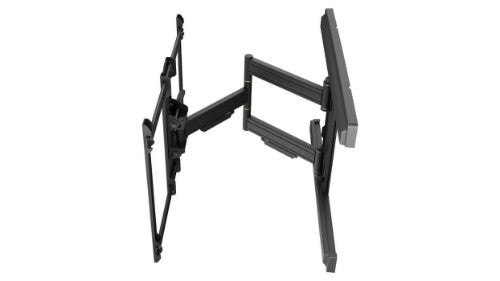

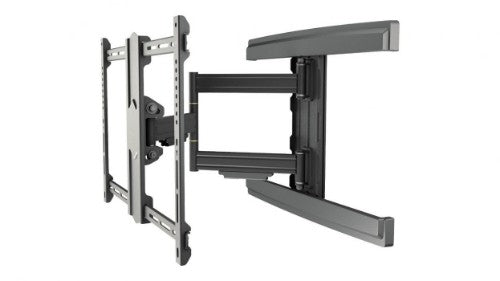

Atdec AD-WM-5060 TV mount/stand 177.8 cm (70") Grey

32” - 70”, max. VESA 800 x 600, max. 50 kg, 2° / -15° Tilt, +/- 90 ̊ Pan, +/- 3 ̊ Rotation

Key Features

• Slim mount with 70mm (2.8”) profile from wall
• VESA patterns in landscape and portrait orientations
• Lateral, up/down tilt, and rotational adjustment
• Integrated cable management
• Pre-assembled for quick and easy installation

Description

AD-WM-5060 delivers extreme flexibility, allowing the mounted display to be adjusted laterally, up/down, and rotationally. It is universal to suit most applications that require full motion adjustment, supporting VESA patterns for landscape and portrait orientation.

Once installed, the AD-WM-5060 holds the display snug against the wall with profile 70mm (2.8”). It will extend to a maximum range of 650mm (25.6”). The mounting allows a full 180° lateral range, with easy +/-90° adjustment to face your audience wherever they are seated.

Extending this flexibility further, the mount allows +2° to -15° up/down tilt, and +/-3° rotational adjustment. Mounted at your desired height, AD-WM-5060 ensures your screen is always facing exactly where you require.

AD-WM-5060 is sleek and constructed of aluminium, with steel and plastic parts, and has integrated cable management. The unit is available in black, to blend unobtrusively with the decor when extended. It suits commercial, domestic, and light industrial environments, and is particularly useful in collaboration spaces where delegates need close-up review of shared documents, and in meeting rooms with multiple seating areas.

Designed for easy installation, AD-WM-5060 arrives pre-assembled with all display mounting fasteners. Wall mounting hardware is not included.

Specifications

Mounting
Mounting type	Wall
Maximum weight capacity	50 kg
Minimum screen size	81.3 cm (32")
Maximum screen size	177.8 cm (70")
Panel mounting interface	200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 200,600 x 400
Number of displays supported	1
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	800 x 600 mm
Ergonomics
Tilt angle range	-15 - 2°
Angle of rotation	3°
Pan range	-90 - 90°
Cable management	Yes
Distance to the wall (min)	7 cm
Distance to the wall (max)	65 cm
Rotating	Yes
Tilt adjustment	Yes
Design
Product colour	Grey
Cable management	Yes
Housing material	Aluminium, Plastic, Steel
Technical details
Mounting type	Wall
Quantity per pack	1 pc(s)
Packaging content
Mounting kit	Yes
Screw nuts included	Yes
Packaging data
Package width	546 mm
Package depth	726 mm
Package height	95 mm
Package weight	13.6 kg
Package type	Box
Mounting kit	Yes
Logistics data
Master (outer) case width	560 mm
Master (outer) case length	745 mm
Master (outer) case height	210 mm
Master (outer) case gross weight	2.89 kg
Products per master (outer) case	2 pc(s)
Other features
Mounting type	Wall
