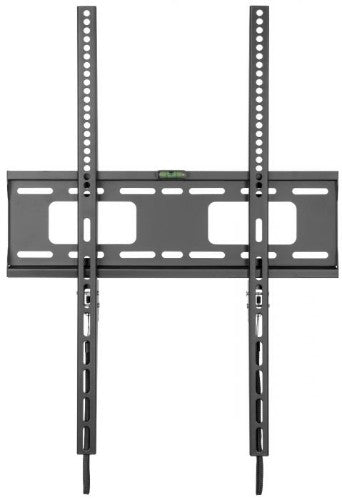

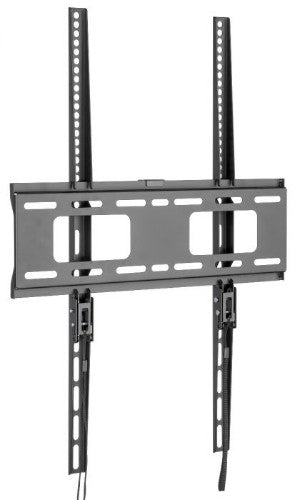

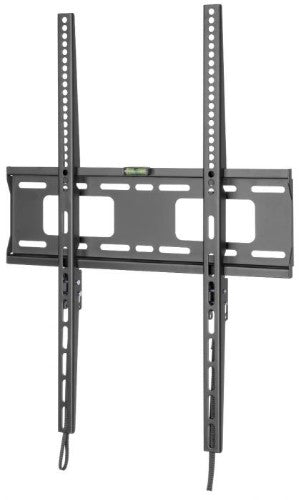

Atdec AD-WFP-5040 TV mount Black

Max load 50 kg., VESA up to 400x600

Key Features

• Display is mounted in portrait orientation
• Display portrait VESA not supported by AD-WT/AD-WF-5040
• Smaller screen sizes

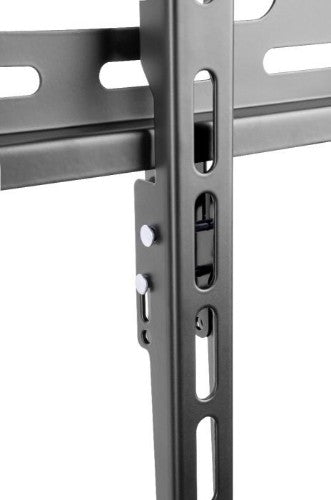

• Theft resistant design with lockable display brackets (fits 4.5mm padlock, not included)
• Easy, safe & tidy installation

Description

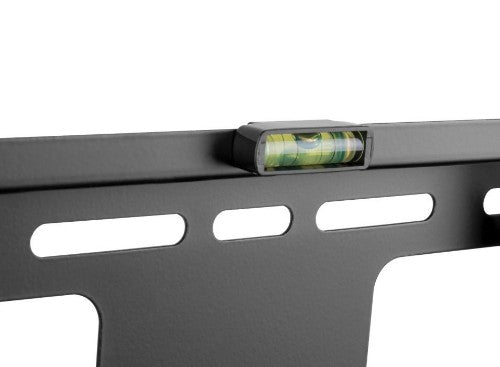

AD-WFP-5040 Portrait display format. Max load 50kg. VESA up to 400x600. This wall mount is for portrait mounting smaller displays. The AD-WFP-5040 suits VESA 100x100 to 400x600. Consider whether your portrait VESA requirements are supported by the AD-WF-5040 or AD-WT-5040 – where they are not, use the AD-WFP-5040. The AD-WFP-5040 mounts displays in portrait orientation, offset 27mm (1.06”) from the wall. The AD-WT-5040 is suitable for commercial, domestic, and most light industrial environments. AD-WT-5040 suits most types of wall construction (with appropriate hardware*) and embodies Atdec’s easy-installation ethos. The product includes a spirit level and has slotted mounting holes. Hardware to mount the display is included. * wall mount hardware not included

Specifications

Mounting
Mounting type	Wall
Maximum weight capacity	50 kg
Panel mounting interface	100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,200 x 600,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 400
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Ergonomics
Distance to the wall (max)	2.7 cm
Design
Product colour	Black
Housing material	Steel
Technical details
Mounting type	Wall
Quantity per pack	1 pc(s)
Packaging data
Package width	156 mm
Package depth	660 mm
Package height	41 mm
Package weight	2.08 kg
Quantity per pack	1 pair(s)
Logistics data
Master (outer) case width	33.5 cm
Master (outer) case length	67.7 cm
Master (outer) case height	18.5 cm
Master (outer) case gross weight	17.4 kg
Products per master (outer) case	8 pc(s)
Other features
Mounting type	Wall
