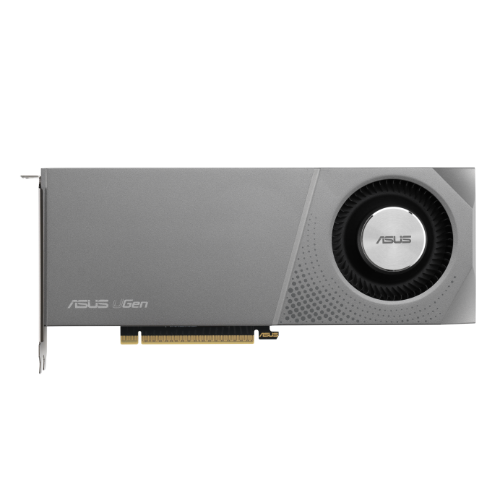

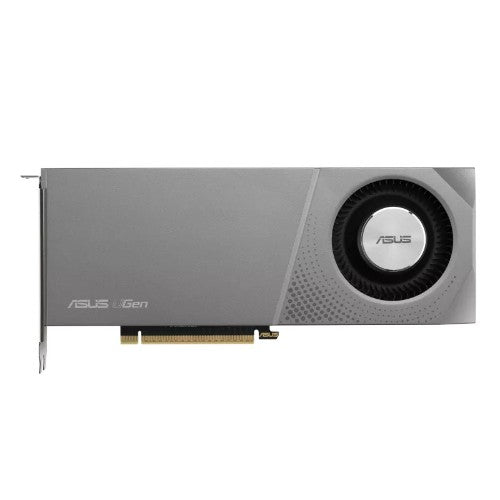

ASUS UGen Intel® Arc™ Pro B70 32 GB GDDR6 with ECC, Xe2-HPG Architecture, PCIe Gen 5x16, 2-slot, Blower Design, ready for Workstation and AI workload

ASUS UGen Intel® Arc™ Pro B70 32 GB GDDR6 with ECC, Xe2-HPG Architecture, PCIe Gen 5x16, 2-slot, Blower Design, ready for Workstation and AI workload

Description

ASUS UGen Intel® Arc™ Pro B70 32 GB GDDR6 with ECC

•ASUS UGen Intel® Arc™ Pro B70 32 GB features Intel Xe2 architecture (32 Xe-Cores, 256 XMX AI engines) delivering up to 367 TOPS (INT8) at 310W TBP
•2-slot form factor optimized for multi-GPU density
•Scales to a 4-card system with 128GB total VRAM, enabling models up to 120B parameters
•Compatibility with major AI frameworks and tools: vLLM (XPU), llama.cpp (SYCL / Vulkan), Ollama, PyTorch (IPEX), OpenVINO, oneAPI, and Vulkan
•Compatible with ASUS Zenni Claw

SPECIFICATIONS
Model
UGen-Arc-Pro-B70-32G

Model Name
UGEN-ARC-PRO-B70-32G

Graphic Engine
Intel Xe2 Architecture

Xe-cores
32

Engine Clock
Graphics Max Dynamic Clock: 2800 MHz

Memory
32 GB GDDR6 (ECC)

Memory Speed
19 Gbps

Memory Bandwidth
608 GB/s

Memory Interface
256-bit

GPU TFLOPS (FP32)
22.94

GPU Peak TOPS (Int8)
367

Total Board Power
310 W

Recommended PSU
750 W

Power Connectors
12v-2x6

Maximum Display Support
4

Interface
3 × DisplayPort 2.1 (UHBR13.5)
1 × HDMI 2.1b

Resolution
7680 x 4320 @ 120Hz

OpenGL
Up to 4.6

OpenCL
3.0

oneAPI
Yes

OpenVINO Support
Yes

DirectX Support
Yes

Vulkan Support
1.3

Slot
2

Dimensions
267 mm x 111 mm

Weight
1.1 KG

Supported OS
Windows 11, Linux

Accessories
1 x Adapter Cable (1 to 2)

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Maximum Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
