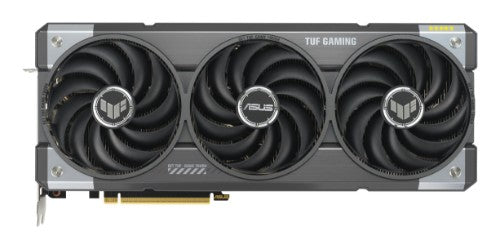

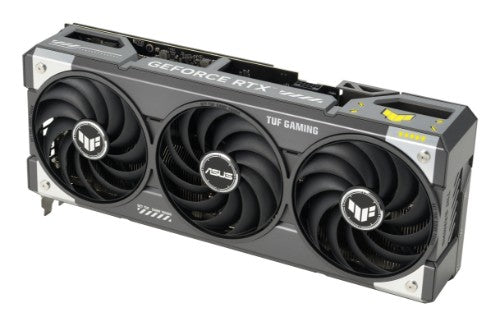

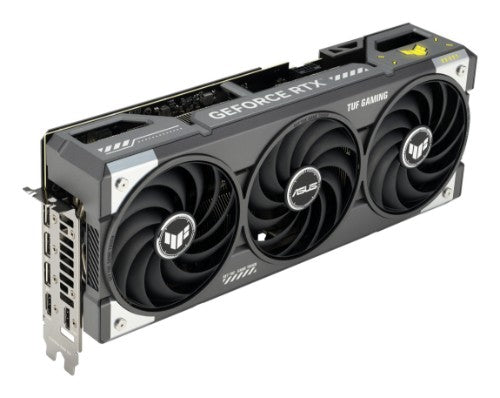

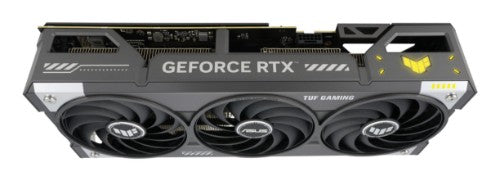

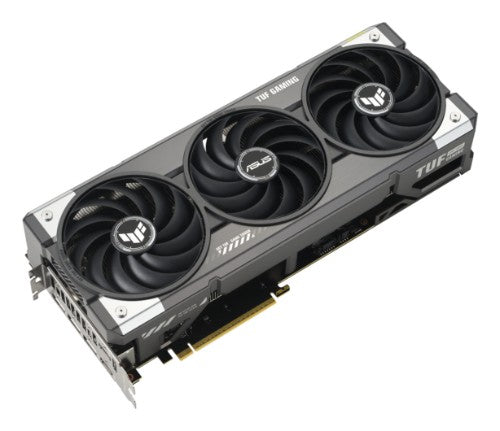

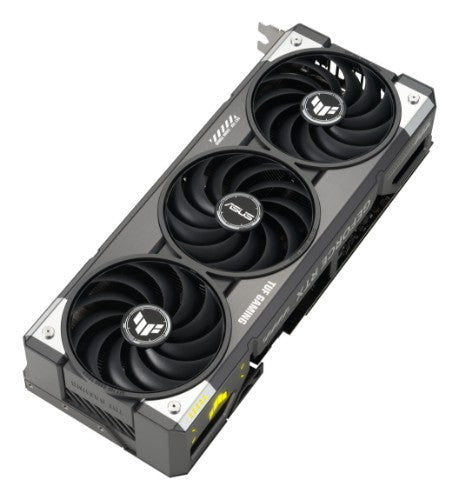

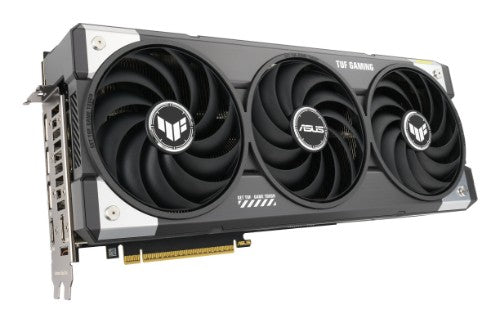

ASUS TUF Gaming TUF-RTX5070TI-16G-GAMING NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7

NVIDIA GeForce RTX 5070 Ti 16GB GDDR7

Description

Game TUF. Built to Last.
ASUS TUF Gaming GeForce RTX™ 5070 Ti
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5070 Ti, designed to withstand the harshest conditions and deliver unparalleled performance.

TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.

TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.

Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.

Specifications

Processor
Graphics processor	GeForce RTX 5070 Ti
Maximum resolution	7680 x 4320 pixels
Graphics processor family	NVIDIA
CUDA	Yes
Processor boost clock speed	2452 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	8960
Memory
Discrete graphics card memory	16 GB
Graphics card memory type	GDDR7
Memory bus	256 bit
Data transfer rate	28 Gbit/s
Ports & interfaces
Interface type	PCI Express 5.0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	3
Mini HDMI ports quantity	0
HDMI version	2.1b
Mini DisplayPorts quantity	0
DisplayPort version	2.1b
USB Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Performance
NVIDIA G-SYNC	Yes
TV tuner integrated	No
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
HDCP version	2.3
Overclocked (OC) edition	No
Design
Number of fans	3 fan(s)
Illumination colour	Multi
Illumination	Yes
Cooling type	Active
Form factor	Full-Height/Full-Length (FH/FL)
Number of slots	3.125
Product colour	Black
Bracket height	Full-Height (FH)
Cooling technology	ASUS Axial-tech
SFF ready	No
Power
Minimum system power supply	850 W
Supplementary power connectors	1x 16-pin
Weight & dimensions
Weight	1.62 kg
Height	140 mm
Depth	62.5 mm
Length	329 mm
Packaging data
Package type	Box
Package width	420 mm
Package depth	226 mm
Package height	87 mm
Package weight	2.41 kg
Manual	Yes
Packaging content
Manual	Yes
