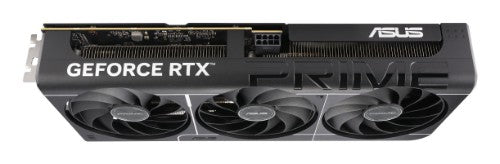

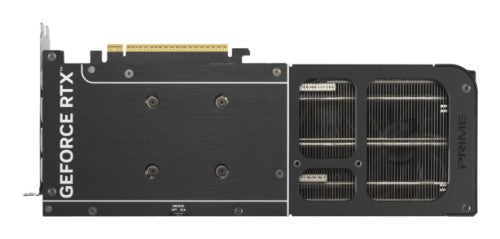

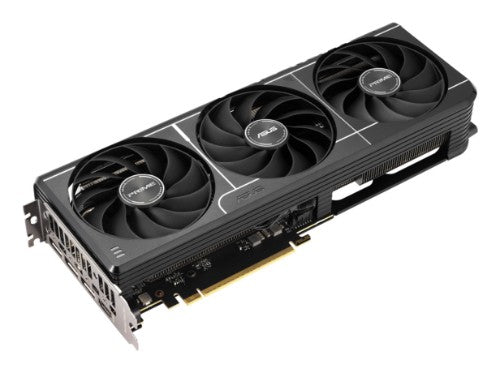

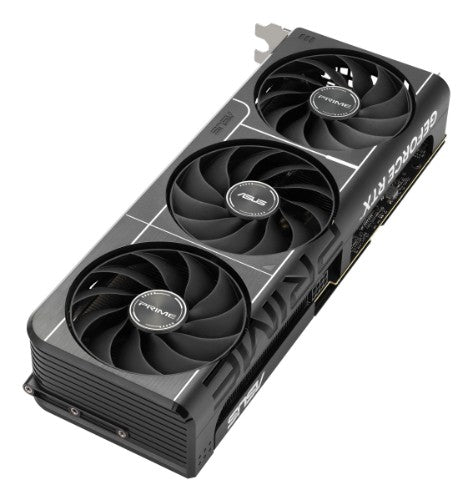

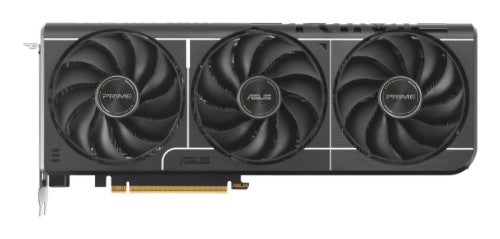

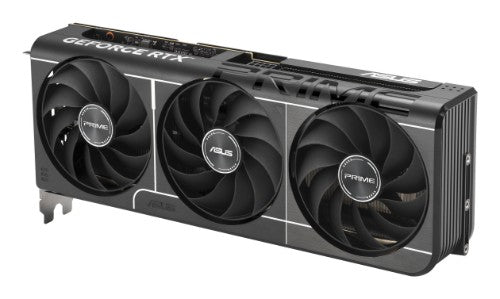

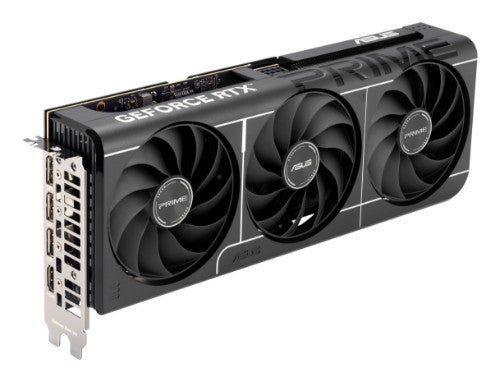

NVIDIA GeForce RTX 5060 Ti 16GB GDDR7, 2.5-slot, 772 TOPs, PCI Express 5.0, OpenGL 4.6, 28 Gbps, 128-bit, 550W
Description
Primed for PowerExperience Primal performance with the Prime GeForce RTX 5060 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Specifications
| Processor |
|---|
| Graphics processor |
GeForce RTX 5060 Ti |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor family |
NVIDIA |
| CUDA |
Yes |
| Processor boost clock speed |
2617 MHz |
| Stream processors |
4 |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| CUDA cores |
4608 |
| Processor frequency (OC mode) |
2647 MHz |
| Memory |
|---|
| Discrete graphics card memory |
16 GB |
| Graphics card memory type |
GDDR7 |
| Memory bus |
128 bit |
| Data transfer rate |
28 Gbit/s |

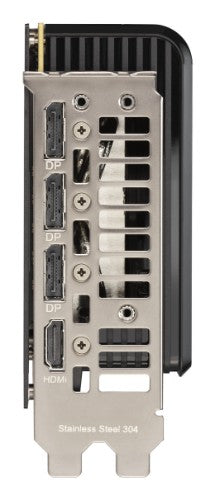

| Ports & interfaces |
|---|
| Interface type |
PCI Express 5.0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| DVI-I ports quantity |
0 |
| DVI-D ports quantity |
0 |
| DisplayPorts quantity |
3 |
| Mini HDMI ports quantity |
0 |
| HDMI version |
2.1b |
| Mini DisplayPorts quantity |
0 |
| DisplayPort version |
2.1b |
| USB Type-C ports quantity |
0 |
| Thunderbolt 3 ports quantity |
0 |
| Performance |
|---|
| NVIDIA G-SYNC |
Yes |
| Virtual Reality (VR) ready |
Yes |
| OpenGL version |
4.6 |
| HDCP |
Yes |
| Dual Link DVI |
No |
| HDCP version |
2.3 |
| NPU performance up to |
759 TOPs |
| Overclocked (OC) edition |
Yes |
| Design |
|---|
| Number of fans |
3 fan(s) |
| Illumination |
No |
| Cooling type |
Active |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of slots |
2.5 |
| Product colour |
Multicolour |
| Bracket height |
Full-Height (FH) |
| Cooling technology |
ASUS Axial-tech |
| SFF ready |
Yes |
| Power |
|---|
| Minimum system power supply |
550 W |
| Supplementary power connectors |
1x 8-pin |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
898 g |
| Height |
120 mm |
| Depth |
50 mm |
| Length |
304 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
405 mm |
| Package depth |
233 mm |
| Package height |
88.5 mm |
| Package weight |
1.49 kg |
