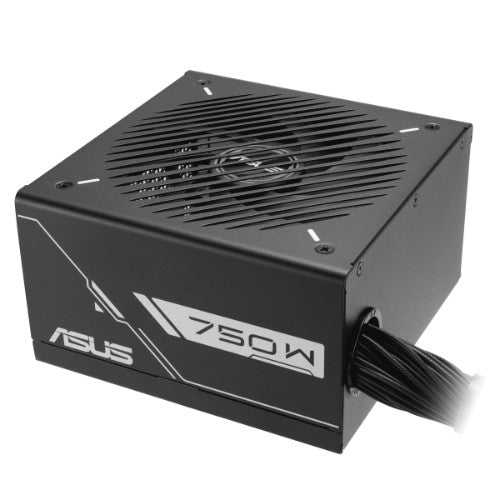

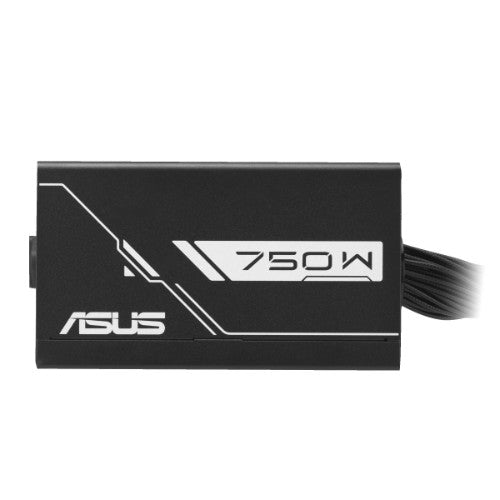

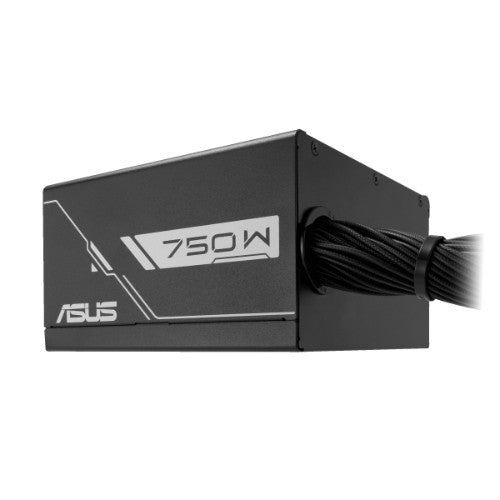

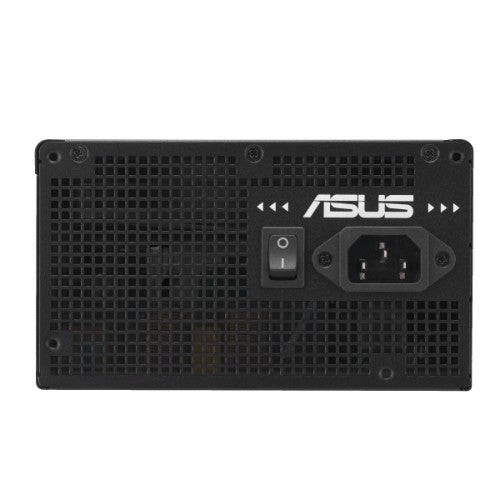

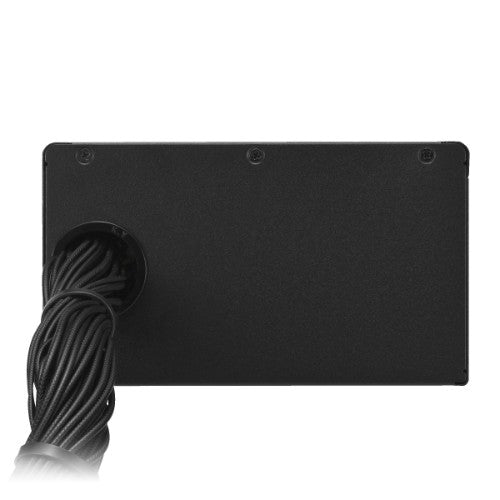

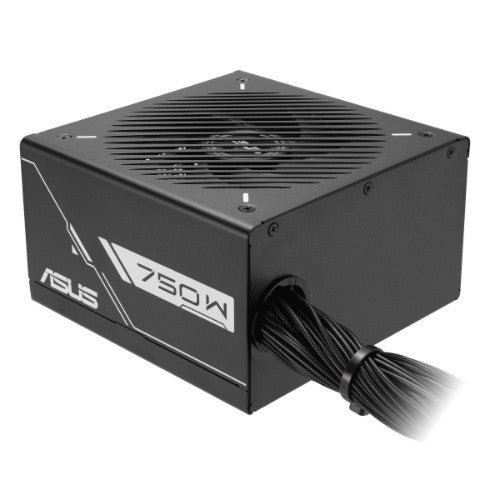

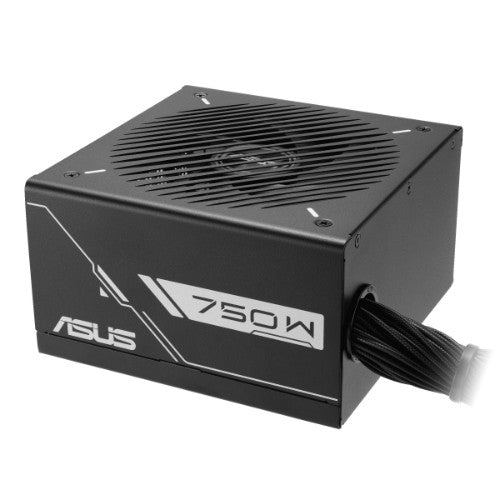

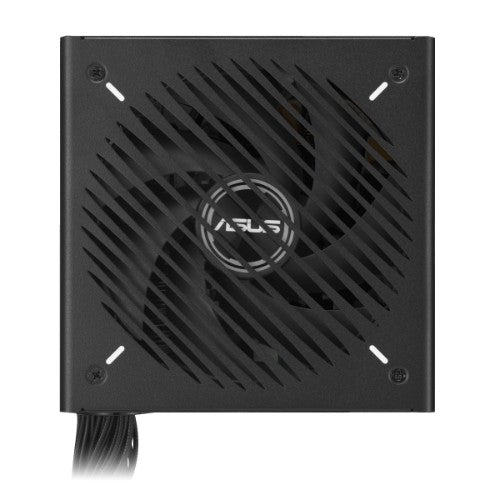

750W, 80+ Bronze, ATX12V, Active PFC, 100-240Vac, 2.2 kg
Key Features
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components
- Etched cables can be bent easily during installation
- 6-year warranty included
Description
ASUS Prime 750W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.Prime PerformanceWith 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
Specifications
| Cooling |
|---|
| Fan diameter |
13.5 cm |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Cooling type |
Active |
| Performance |
|---|
| On/off switch |
Yes |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Bronze |
| Purpose |
PC |
| Bearing technology |
Ball bearing |
| Mean time between failures (MTBF) |
120000 h |
| Design |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
| Product colour |
Black |
| Fan diameter |
13.5 cm |
| Illumination |
No |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Cooling type |
Active |
| Power |
|---|
| Total power |
750 W |
| AC input voltage |
100 - 240 V |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+5V) |
120 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
12.5 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
2.5 A |
| Power protection features |
Over current, Over power, Over voltage, Short circuit, Under voltage |
| Ports & interfaces |
|---|
| Motherboard power cable length |
60 cm |
| SATA power cable length |
120,400 mm |
| Peripheral (Molex) power cable length |
120,400 mm |
| CPU power cable length |
80 cm |
| Motherboard power connector |
20+4 pin ATX |
| Number of SATA power connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| PCI Express power connectors (8-pin) |
3 |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express connector |
Yes |
| Cabling type |
Non-Modular |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
150 mm |
| Height |
86 mm |
| Weight |
1.92 kg |
| Packaging data |
|---|
| Package width |
340 mm |
| Package depth |
196 mm |
| Package height |
115 mm |
| Package type |
Box |
| Package weight |
3 kg |
| Certificates |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
