ASUS nVidia T1 GeForce RTX™ 5070 12GB GDDR7 OC Edition, 988 TOPs, 6144 CUDA, 28Gbps, 192-bit, PCIe 5.0, 2.5-Slot

ASUS nVidia T1 GeForce RTX™ 5070 12GB GDDR7 OC Edition, 988 TOPs, 6144 CUDA, 28Gbps, 192-bit, PCIe 5.0, 2.5-Slot

Description

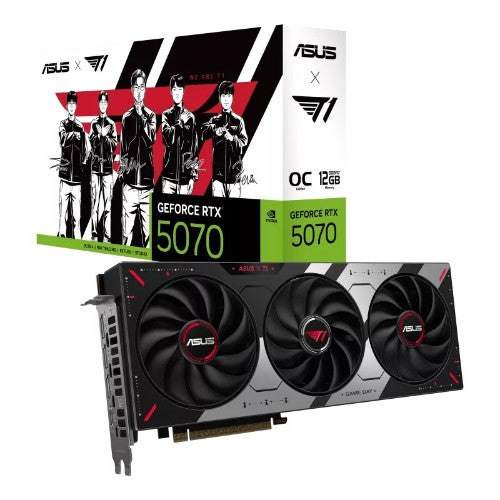

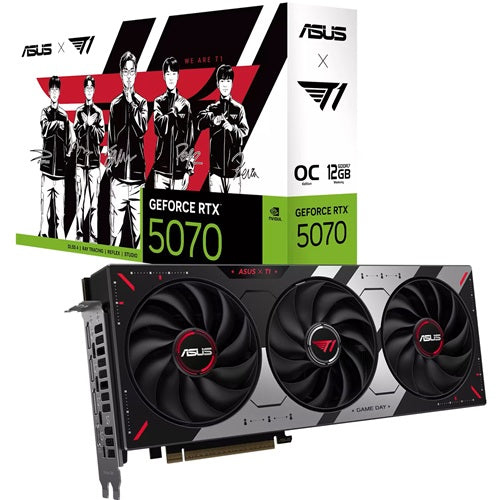

ASUS nVidia T1 GeForce RTX™ 5070 12GB GDDR7 OC Edition

ASUS has collaborated with T1, the World Champions, to create the ASUS T1 GeForce RTX™ 5070 graphics card. This version embodies T1's never-say-die spirit, featuring silkscreen prints of T1 players and the T1 logo on both the backplate and the front, alongside industry-leading performance and cooling technology from ASUS.


SPECIFICATIONS
Model
T1-RTX5070-O12G-GAMING

Graphic Engine
NVIDIA® GeForce RTX™ 5070

AI Performance
988 TOPs

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
12GB GDDR7

Engine Clock
OC mode: 2595MHz
Default mode: 2572MHz (Boost Clock)

CUDA Core
6144

Memory Speed
28 Gbps

Memory Interface
192-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x T1 Collab Magnet
1 x T1 Collab Sticker
1 x Speedsetup Manual
1 x Thank You Card
1 x Adapter Cable (1 to 2)

Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
305 x 126 x 50 mm
12 x 5 x 2 inch

Recommended PSU
750W

Power Connectors
1 x 16-pin

Slot
2.5 Slot

AURA SYNC
ARGB

SFF Ready
Compatible

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage' feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
