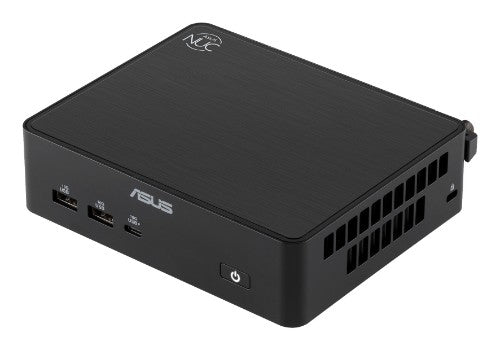

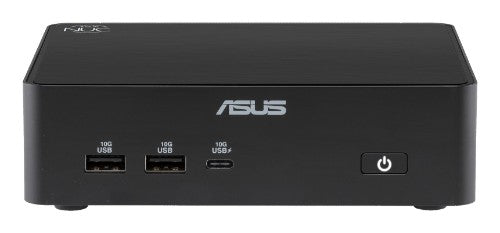

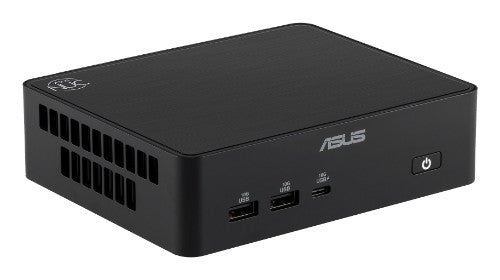

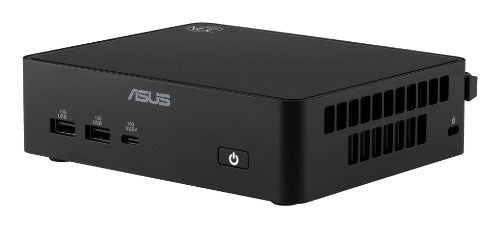

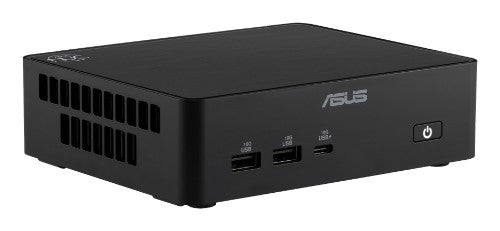

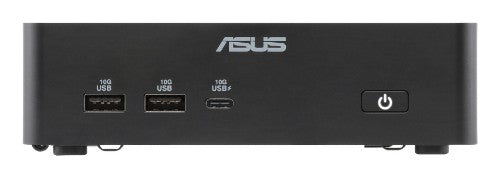

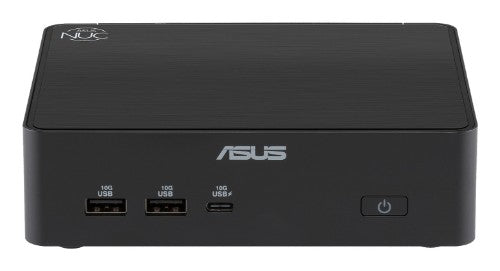

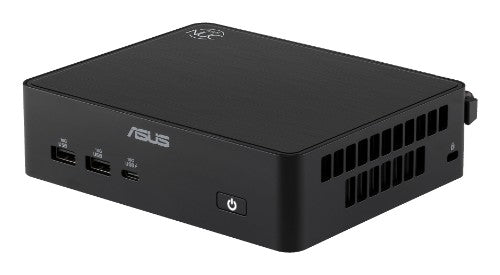

Intel Core Ultra X9 378H, 64GB DDR5, 2 x SO-DIMM DDR5, WLAN, LAN, no OS
Key Features
- Powered by up to Intel Core Ultra X9 CPU, Arc B390 GPU, and NPU 5, it enables AI-accelerated hybrid computing, delivering up to 180 TOPS for real-time Edge AI
- Up to 96 GB LPDDR5x 9600 MT/s with 20% faster speed and 50% lower power, plus dual-fan cooling for sustained peak performance
- Wi-Fi 7, Bluetooth 6.0, and dual 2.5G LAN provide low-latency, redundant, and secure connectivity for enterprise and Edge AI
- Built-in firmware TPM 2.0 provides enterprise-grade data protection and compliance, enabling IT professionals to securely manage devices and scale services with ease
- Compact 5×4 chassis with Tool-less 2.0 design supports dual M.2 Gen5/Gen4 SSDs, maximizing airflow, flexibility, and performance
- Rugged modular build with long-life availability and rich I/O, including RS-232 and PCIe x1, for POS, IoT, and industrial deployment
Description
Faster, Smarter, More Secure For the AI-Driven EnterpriseThe ASUS NUC 16 Pro mini PC features up to the latest Intel® Core™ Ultra X9 series 3 processor featuring Intel Arc™, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory—all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI® ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Specifications
| Motherboard |
|---|
| Processor socket |
FCBGA2540 |
| Processor |
|---|
| Built-in processor |
Yes |
| Processor model |
378H |
| Processor boost frequency |
5 GHz |
| Processor threads |
16 |
| Processor socket |
FCBGA2540 |
| Processor family |
Intel Core Ultra X9 |
| Processor cores |
16 |
| Processor manufacturer |
Intel |
| Processor cache |
18 MB |
| Performance cores |
4 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core base frequency |
2 GHz |
| Efficient-core base frequency |
1.6 GHz |
| Low Power Efficient-cores |
4 |
| Low Power Efficient-core Max Turbo Frequency |
3.6 GHz |
| Low Power Efficient-core Base Frequency |
1600 MHz |
| Processor generation |
Intel® Core™ Ultra (Series 3) |
| Memory |
|---|
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Memory channels |
Dual-channel |
| Maximum internal memory |
128 GB |
| Internal memory |
64 GB |
| Internal memory installed |
Yes |
| Video |
|---|
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Storage |
|---|
| Supported storage drive types |
SSD |
| Storage drive sizes supported |
M.2 |
| Storage drive interface |
M.2 |
| Number of storage drives supported |
2 |
| Maximum storage capacity |
8 TB |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| Storage drives installed |
No |
| M.2 SSD size |
2280 (22 x 80 mm) |
| Graphics |
|---|
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel Arc B390 |
| Performance |
|---|
| Processor socket |
FCBGA2540 |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Network |
|---|
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet LAN |
Yes |
| Wi-Fi |
Yes |
| Bluetooth version |
6.0 |
| Bluetooth |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| VGA (D-Sub) ports quantity |
0 |
| USB 2.0 ports quantity |
0 |
| HDMI version |
2.1 |
| HDMI ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| Design |
|---|
| VESA mounting |
Yes |
| Product type |
Mini PC barebone |
| On/off switch |
Yes |
| Cooling type |
Active |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Processor special features |
|---|
| Low Power Efficient-cores |
4 |
| Low Power Efficient-core Max Turbo Frequency |
3.6 GHz |
| Low Power Efficient-core Base Frequency |
1600 MHz |
| Colour |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Cooling type |
Active |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Management features |
|---|
| On/off switch |
Yes |
| Power |
|---|
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 92% |
| Weight & dimensions |
|---|
| Width |
144 mm |
| Depth |
117 mm |
| Height |
42 mm |
| Other features |
|---|
| Internal memory |
64 GB |
