Apc Easy Ups On-Line Srv 3000Va 2700W Rm 230V With Rail Kit
Description

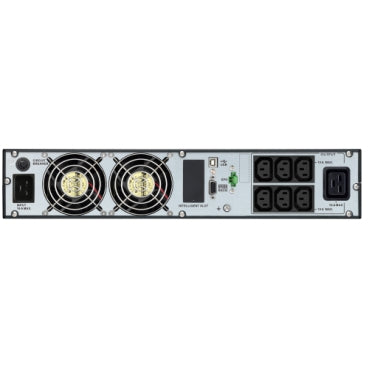

APC Easy UPS On-Line, 3kVA/2700W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/ rail kit
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

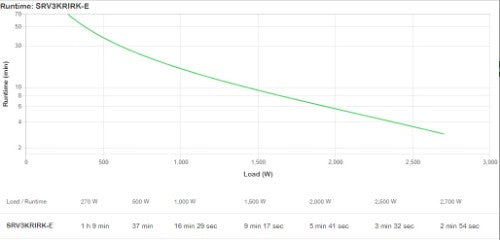

Run time for load 2400 W 4min 24s
Min-max: 240-2400 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 2700 W
Rated power in VA 3000 VA
Input Connection Type IEC 60320 C20
Output connection type 6 IEC 60320 C13, 1 IEC 60320 C19
Number of rack unit 2U
Cable length 1.48 m
Number of cables 1
Provided equipment 1 IEC 60320 C19 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 1 rack mounting brackets, 1 rack mounting support rails user manual
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 910 Btu/h
IP degree of protection IP20
Mounting mode- Rack mounted
Replacement Battery -APCRBCV202
Compatible NMC- AP9544, SRVSMB001, VGL9901I
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
2700 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
230 V |
| Surge energy rating |
945 J |
| Crest factor |
3:1 |
| Input frequency |
40 - 70 Hz |
| Performance |
|---|
| Waveform |
Sine |
| Noise level |
50 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
2700 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
230 V |
| Surge energy rating |
945 J |
| Waveform |
Sine |
| Crest factor |
3:1 |
| Noise level |
50 dB |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| SmartSlot |
Yes |
| AC outlet types |
IEC 60320 |
| Power plug |
C20 coupler |
| SmartConnect port |
No |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Battery voltage |
72 V |
| Design |
|---|
| Rack capacity |
2U |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Warranty period |
2 year(s) |
| Packaging content |
|---|
| Management card included |
No |
| Weight & dimensions |
|---|
| Width |
438 mm |
| Depth |
632 mm |
| Height |
86 mm |
| Weight |
28.5 kg |
| Package width |
570 mm |
| Package depth |
794 mm |
| Package height |
228 mm |
| Package weight |
32.5 kg |
| Packaging data |
|---|
| Package width |
570 mm |
| Package depth |
794 mm |
| Package height |
228 mm |
| Package weight |
32.5 kg |
| Management card included |
No |
| Logistics data |
|---|
| Warranty period |
2 year(s) |
