Apc Easy Ups On-Line Srv 3000Va 2700W 230V With Extended Runtime BattERy Pack
Description

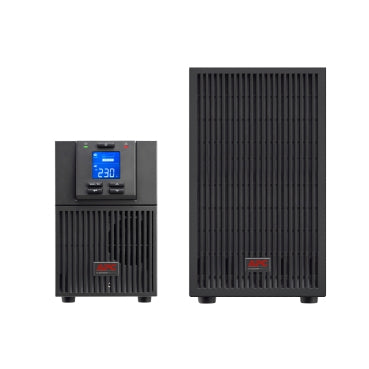

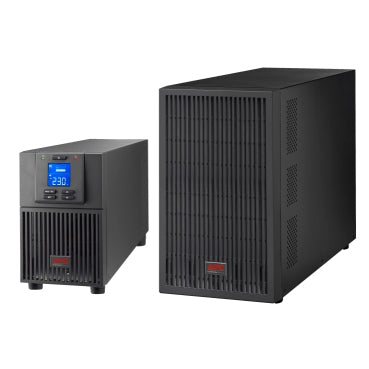

APC Easy UPS On-Line, 3kVA/2700W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended runtime
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Main Input Voltage 230 V AC 1 phase
Input voltage 220 V, 240 V
Input Connection Type IEC 60320 C20
Input voltage limits 105…300 V 40% load, 180...285 V full load
Network frequency 40...70 Hz auto sensing
Output voltage 230 V AC 1 phase
Output voltage 220 V, 240 V
Rated power in W 2700 W
rated power in VA 3000 VA
Output connection type 6 IEC 60320 C13, 1 IEC 60320 C19
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Harmonic distortion 3 %
Maximum configurable power in VA 3000 VA
Maximum configurable power in W 2700 W
UPS type On-Line
Wave type Sine wave
Efficiency 90 % (full load)
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Output power |
2700 W |
| Input operation voltage (min) |
105 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
230 V |
| Surge energy rating |
600 J |
| Crest factor |
3:1 |
| Input frequency |
40 - 70 Hz |
| Performance |
|---|
| Response time |
4 ms |
| Waveform |
Sine |
| Noise level |
50 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
3 kVA |
| Response time |
4 ms |
| Output power |
2700 W |
| Input operation voltage (min) |
105 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
230 V |
| Surge energy rating |
600 J |
| Waveform |
Sine |
| Crest factor |
3:1 |
| Noise level |
50 dB |
| Input frequency |
40 - 70 Hz |
| Heat dissipation |
910 BTU/h |
| Ports & interfaces |
|---|
| USB port |
Yes |
| SmartSlot |
Yes |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| SmartConnect port |
No |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
5.5 h |
| Battery voltage |
72 V |
| Design |
|---|
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Warranty period |
2 year(s) |
| Packaging content |
|---|
| Management card included |
No |
| Weight & dimensions |
|---|
| Width |
425 mm |
| Depth |
425 mm |
| Height |
336 mm |
| Weight |
46.2 kg |
| Package width |
565 mm |
| Package depth |
565 mm |
| Package height |
465 mm |
| Package weight |
49.9 kg |
| Packaging data |
|---|
| Package width |
565 mm |
| Package depth |
565 mm |
| Package height |
465 mm |
| Package weight |
49.9 kg |
| Management card included |
No |
| Logistics data |
|---|
| Warranty period |
2 year(s) |
