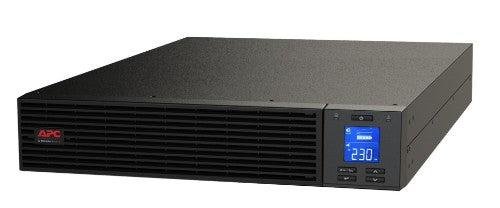

Easy UPS On-Line SRV RM, 2000 VA, 230V, w / Rail Kit
Key Features
- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

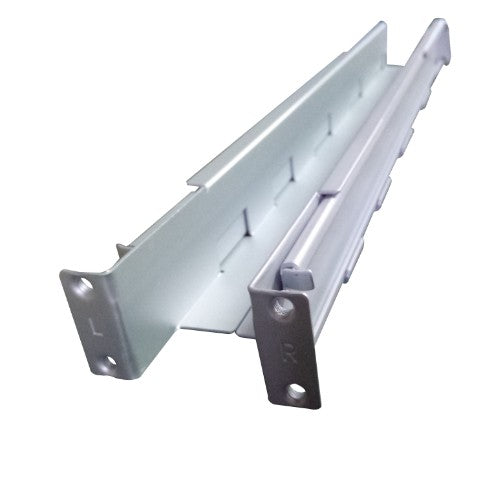

- Includes: CD with software, Rack Mounting support rails, User Manual
Description
APC Easy UPS On-Line SRV RM 2000 VA 230V with Rail Kit.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, Rack Mounting support rails, User Manual.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1600 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
600 J |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| ECO mode |
Yes |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
2 kVA |
| Output power |
1600 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
600 J |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Audible alarm(s) |
Yes |
| ECO mode |
Yes |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| SmartSlot |
Yes |
| AC outlet types |
IEC 60320 |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| Serial ports quantity |
1 |
| Battery |
|---|
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Rackmount |
| Product colour |
Black |
| Certification |
CE, IEC 62040-1-1, IEC 62040-1-2
REACH |
| LED indicators |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 14763.6 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Compliance certificates |
RoHS |
| Certificates |
|---|
| Certification |
CE, IEC 62040-1-1, IEC 62040-1-2
REACH |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Weight & dimensions |
|---|
| Width |
437 mm |
| Depth |
462 mm |
| Height |
86 mm |
| Weight |
18.2 kg |
| Battery width |
55.1 cm |
| Battery depth |
59.9 cm |
| Battery height |
14.2 cm |
| Battery weight |
20.7 kg |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
