Apc Easy Ups On-Line Srv 2000Va 1800W Rm 230V With Extended Runtime BattERy Pack. Rail Kit
Description

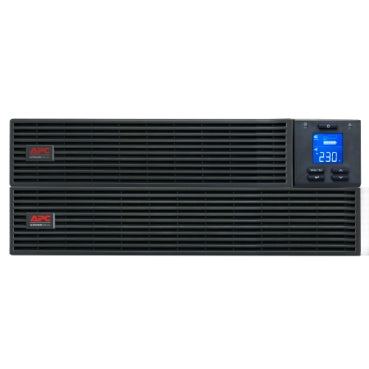

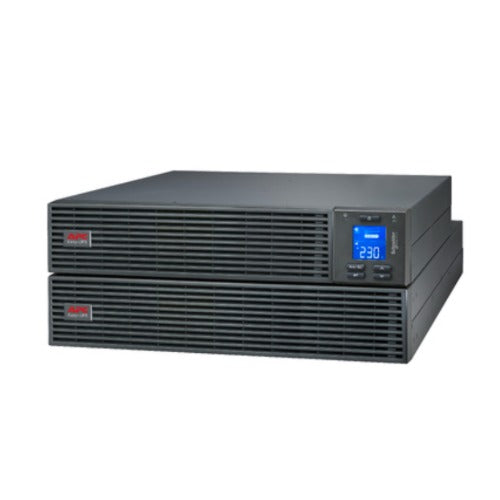

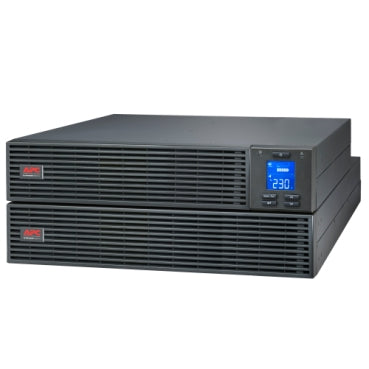

APC Easy UPS On-Line, 2000VA/1800W, Rackmount 4U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, W/ rail kit
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

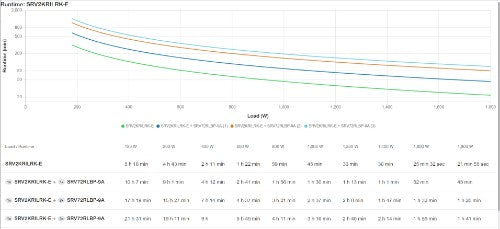

Run time for load 1600 W 22min 17s
Min-max: 160-1800 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Product or component type
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 1800 W
Rated power in VA 2000 VA
Input Connection Type IEC 60320 C14

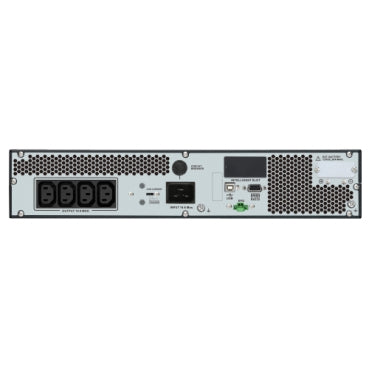

Output connection type 4 IEC 60320 C13
Number of rack unit 4U
Number of cables 1

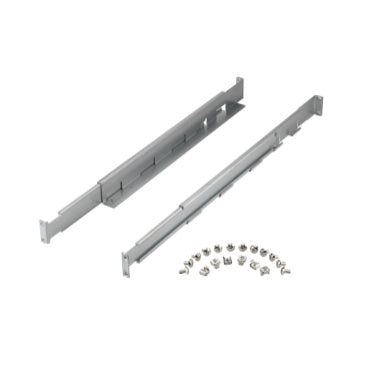

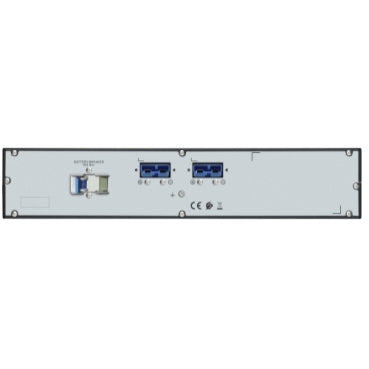

Provided equipment, 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C19 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 2 rack mounting brackets, 2 rack mounting support rails, 1 external battery pack, 1 battery cable
Ambient air temperature for operation0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 745 Btu/h
IP degree of protection IP20
Mounting mode- Rack mountable
Replacement Battery -SRV72RLBP-9A
Compatible NMC- AP9544, SRVSMB001, VGL9901I
Compatible Mounting- SRVRK1
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1800 W |
| Input operation voltage (min) |
105 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
230 V |
| Surge energy rating |
600 J |
| Crest factor |
3:1 |
| Input frequency |
40 - 70 Hz |
| Performance |
|---|
| Waveform |
Sine |
| Noise level |
53 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1800 W |
| Input operation voltage (min) |
105 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
230 V |
| Surge energy rating |
600 J |
| Waveform |
Sine |
| Crest factor |
3:1 |
| Noise level |
53 dB |
| Input frequency |
40 - 70 Hz |
| Heat dissipation |
745 BTU/h |
| Ports & interfaces |
|---|
| SmartSlot |
Yes |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| SmartConnect port |
No |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
5.5 h |
| Battery voltage |
72 V |
| Design |
|---|
| Rack capacity |
4U |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Warranty period |
2 year(s) |
| Packaging content |
|---|
| Management card included |
No |
| Weight & dimensions |
|---|
| Width |
437 mm |
| Depth |
632 mm |
| Height |
172 mm |
| Weight |
51.4 kg |
| Package width |
700 mm |
| Package depth |
600 mm |
| Package height |
480 mm |
| Package weight |
66.2 kg |
| Packaging data |
|---|
| Package width |
700 mm |
| Package depth |
600 mm |
| Package height |
480 mm |
| Package weight |
66.2 kg |
| Management card included |
No |
| Logistics data |
|---|
| Warranty period |
2 year(s) |
