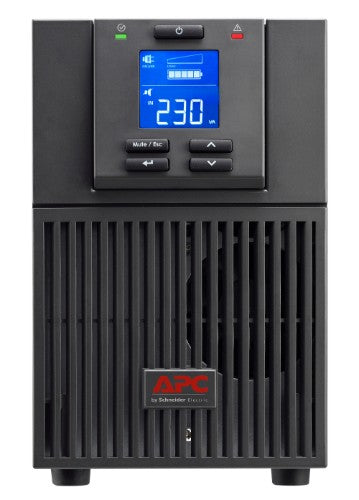

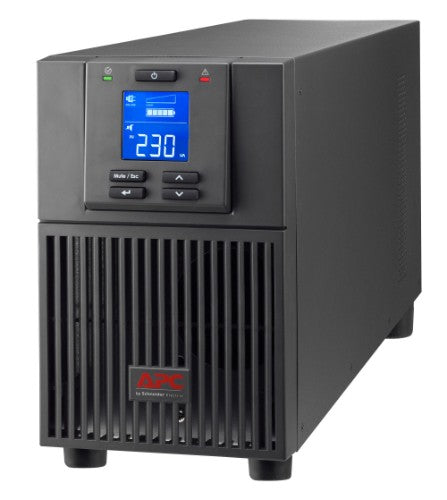

SRV2KI, 1.6kW, 230V, 50/60Hz, 4x IEC 320 C13, IEC-320 C14, USB, 145x400x238 mm
Description
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
LCD display
Alpha-Numeric Display which displays system parameters and alarms.
Serial connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1600 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
600 J |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Input frequency |
40 - 70 Hz |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Waveform |
Sine |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
2 kVA |
| Output power |
1600 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
600 J |
| Surge protection |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Crest factor |
3:1 |
| Audible alarm(s) |
Yes |
| ECO mode |
Yes |
| Input frequency |
40 - 70 Hz |

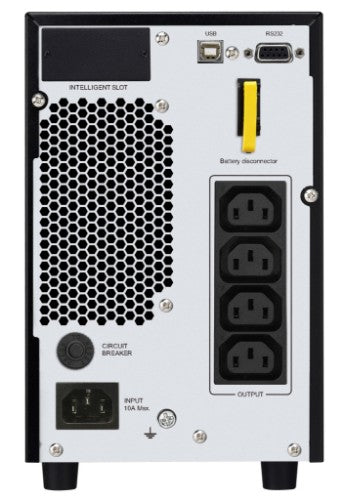

| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Certification |
CE, IEC 62040-1-1, IEC 62040-1-2, REACH |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 14763.6 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
145 mm |
| Depth |
400 mm |
| Height |
238 mm |
| Weight |
16.8 kg |
| Package width |
235 mm |
| Package depth |
525 mm |
| Package height |
355 mm |
| Package weight |
18.1 kg |
| Packaging data |
|---|
| Cables included |
USB cable |
| Manual |
Yes |
| Package width |
235 mm |
| Package depth |
525 mm |
| Package height |
355 mm |
| Package weight |
18.1 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
CE, IEC 62040-1-1, IEC 62040-1-2, REACH |
| Packaging content |
|---|
| Cables included |
USB cable |
| Manual |
Yes |
