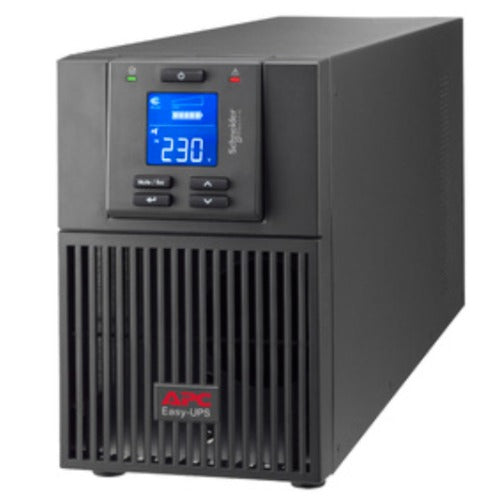

Easy UPS On-Line SRV 2000VA 1800W 230V, black
Description
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1800 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
88% |
| Crest factor |
3:1 |
| Input frequency |
50/60 Hz |

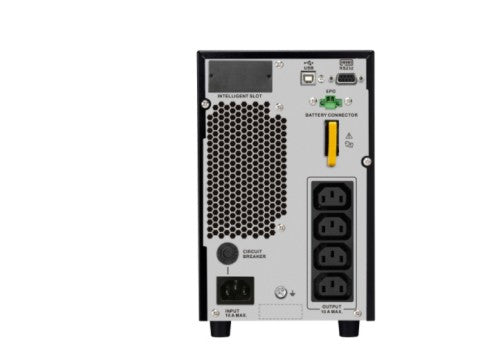

| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| USB port |
Yes |
| SmartSlot |
Yes |
| AC outlet types |
C13 coupler |
| Power plug |
C19 coupler |
| RS-232 ports |
1 |
| SmartConnect port |
No |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Waveform |
Sine |
| Noise level |
50 dB |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
2 kVA |
| Output power |
1800 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
88% |
| Surge protection |
Yes |
| Waveform |
Sine |
| Crest factor |
3:1 |
| Noise level |
50 dB |
| Input frequency |
50/60 Hz |
| Power source type |
AC |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Battery voltage |
48 V |
| Design |
|---|
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Cable length |
1.5 m |
| Display type |
LCD |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Packaging content |
|---|
| Management card included |
No |
| Weight & dimensions |
|---|
| Width |
145 mm |
| Depth |
400 mm |
| Height |
238 mm |
| Weight |
17 kg |
| Package width |
525 mm |
| Package depth |
235 mm |
| Package height |
355 mm |
| Package weight |
18.9 kg |
| Packaging data |
|---|
| Package width |
525 mm |
| Package depth |
235 mm |
| Package height |
355 mm |
| Package weight |
18.9 kg |
| Management card included |
No |
