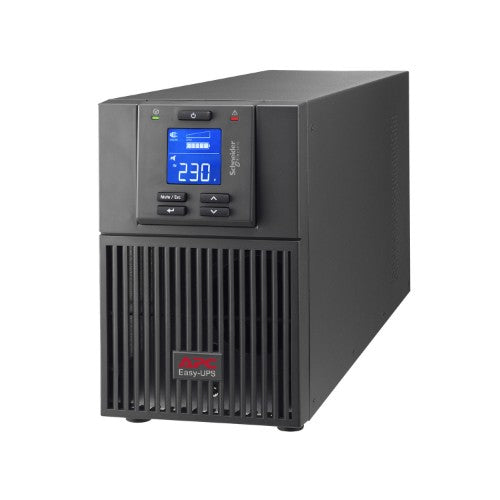

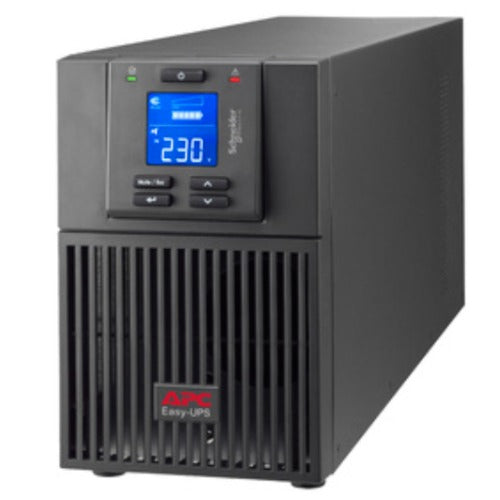

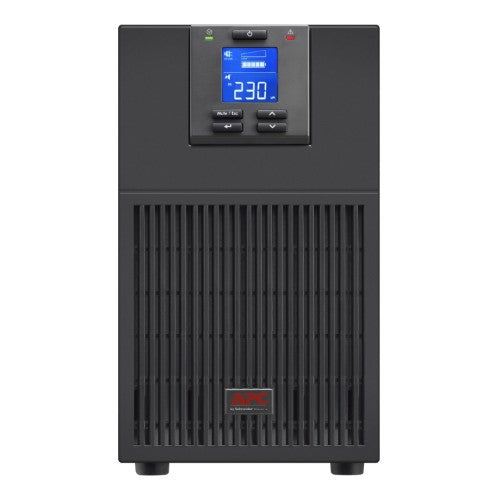

APC Easy UPS On-Line, 1000VA/900W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD
Key Features
- Replacement battery (1) is available
- 1000VA/900W double-conversion on-line pure sine wave tower UPS
- High operating efficiency in energy-saving ECO mode
- Prolonged battery life with intelligent temperature-compensated charging
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Description

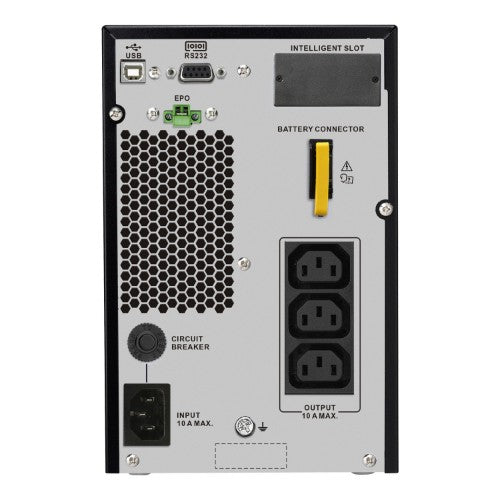

his APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV203. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
1 kVA |
| Output power |
900 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
945 J |
| Efficiency |
88% |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| SmartSlot |
Yes |
| AC outlets quantity |
3 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| SmartConnect port |
No |
| Performance |
|---|
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Waveform |
Sine |
| Noise level |
50 dB |
| LED indicators |
Status |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
1 kVA |
| Output power |
900 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
945 J |
| Efficiency |
88% |
| Surge protection |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Crest factor |
3:1 |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| ECO mode |
Yes |
| Input frequency |
40 - 70 Hz |
| Power source type |
AC |
| Detachable power cord |
Yes |
| Heat dissipation |
380 BTU/h |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Battery voltage |
24 V |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Certification |
CE
UKCA
TISI |
| Cable length |
1.5 m |
| LED indicators |
Status |
| Control type |
Buttons |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Certificates |
|---|
| Certification |
CE
UKCA
TISI |
| Packaging content |
|---|
| Cables included |
Input power cable, Output power cable, RS-232, USB cable |
| Rack mount kit |
No |
| Manual |
Yes |
| Management card included |
No |
| Weight & dimensions |
|---|
| Width |
145 mm |
| Depth |
288 mm |
| Height |
223 mm |
| Weight |
9.6 kg |
| Package width |
235 mm |
| Package depth |
365 mm |
| Package height |
330 mm |
| Package weight |
10.9 kg |
| Packaging data |
|---|
| Cables included |
Input power cable, Output power cable, RS-232, USB cable |
| Rack mount kit |
No |
| Manual |
Yes |
| Package width |
235 mm |
| Package depth |
365 mm |
| Package height |
330 mm |
| Package weight |
10.9 kg |
| Management card included |
No |
