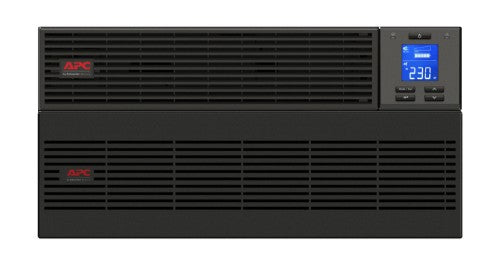

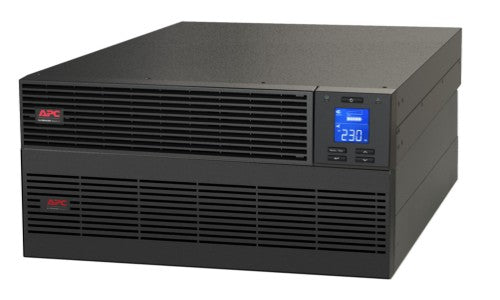

APC SRV10KRILRK uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

APC

APC SRV10KRILRK uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 10000 W

Read reviews
SKU: SRV10KRILRK
Your price $5,456.00
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Protect & complete your setup

Add with one click — goes straight into your cart.

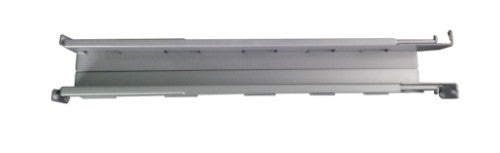

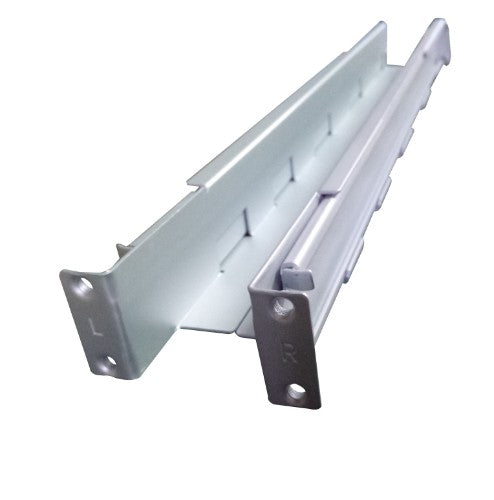

Easy UPS SRV RM 10000VA 230V with External Battery Pack, with RailKit

Key Features

  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
  • Includes: CD with software, USB cable, User Manual

Description

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Includes: CD with software, USB cable, User Manual.

Specifications

Power
Output frequency 50/60 Hz
Output power capacity 10 kVA
Output power 10000 W
Input operation voltage (min) 110 V
Input operation voltage (max) 300 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Surge energy rating 600 J
Emergency Power Off (EPO) Yes
Crest factor 3:1
ECO mode Yes
Input frequency 40/70 Hz
Performance
Audible alarm modes Low battery alarm, Overload alarm
UPS topology Double-conversion (Online)
Waveform Pure sine
Auto-restart Yes
LED indicators Yes
Audible alarm(s) Yes
Features
Output frequency 50/60 Hz
Audible alarm modes Low battery alarm, Overload alarm
UPS topology Double-conversion (Online)
Output power capacity 10 kVA
Output power 10000 W
Input operation voltage (min) 110 V
Input operation voltage (max) 300 V
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Surge energy rating 600 J
Emergency Power Off (EPO) Yes
Waveform Pure sine
Crest factor 3:1
Auto-restart Yes
Audible alarm(s) Yes
ECO mode Yes
Input frequency 40/70 Hz
Ports & interfaces
Emergency Power Off (EPO) connector Yes
USB port Yes
Serial interface Yes
SmartSlot Yes
AC outlet types Hard Wire 3-wire (1PH + N + G)
SmartConnect port No
Battery
Hot-swap battery Yes
Automatic battery test Yes
Design
Rack capacity 5U
Form factor Rackmount
Product colour Black
Certification CE, IEC 62040-1-1, IEC 62040-1-2 REACH
LED indicators Yes
Display type LCD
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 14763 m
Technical details
Output frequency 50/60 Hz
Harmonized System (HS) code 85078000
Compliance certificates RoHS
Certificates
Certification CE, IEC 62040-1-1, IEC 62040-1-2 REACH
Compliance certificates RoHS
Packaging content
Cables included USB cable
Manual Yes
Management card included No
Weight & dimensions
Width 438 mm
Depth 615 mm
Height 220 mm
Weight 78 kg
Package weight 79 kg
Packaging data
Cables included USB cable
Manual Yes
Package weight 79 kg
Management card included No
Logistics data
Harmonized System (HS) code 85078000
Other features
Nominal output voltage 230 V
Nominal input voltage 230 V
Brand
APC
SKU
SRV10KRILRK
