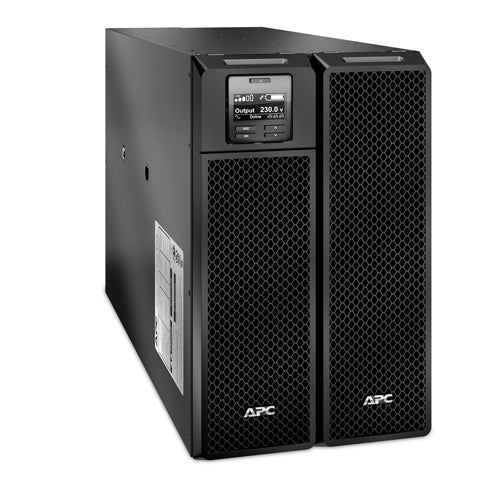

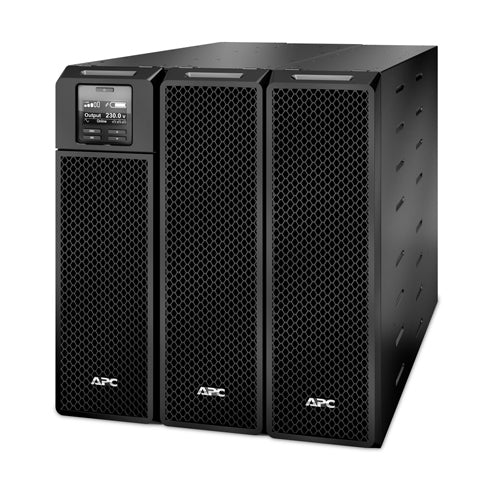

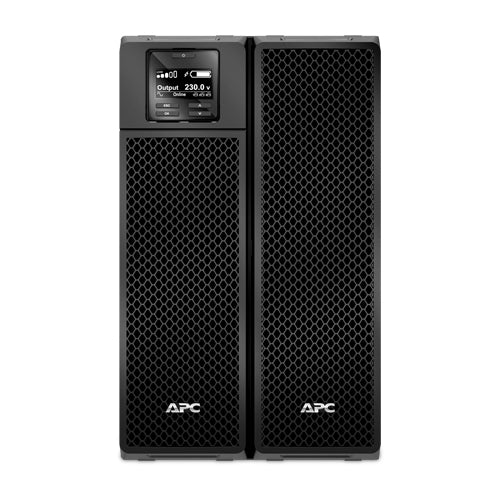

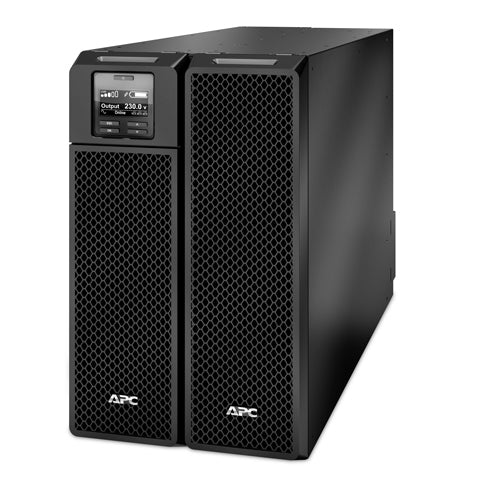

Smart-UPS On-Line, 8kVA/8kW, Tower, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
Description

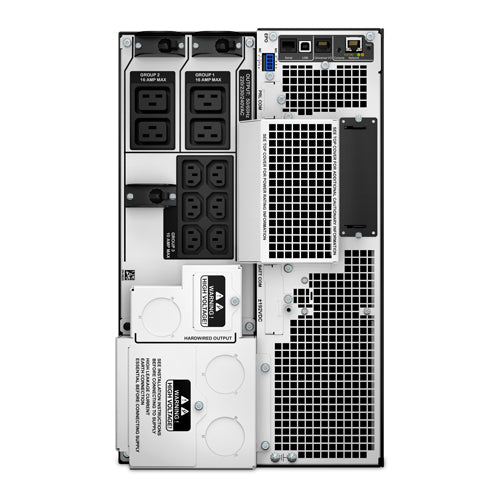

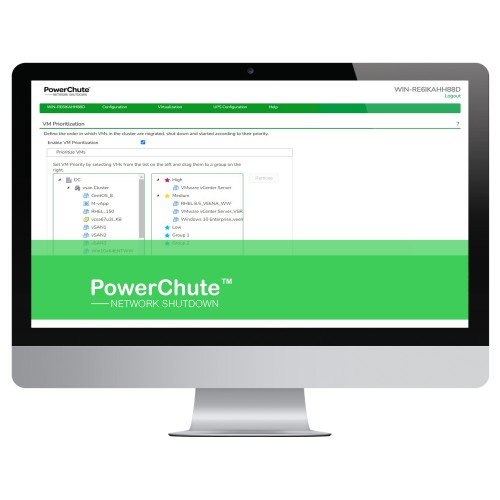

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Specifications
| Power |
|---|
| Output power capacity |
8 kVA |
| Output power |
8000 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
476 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
480 J |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output frequency regulation |
50/60 Hz |
| Crest factor |
3:1 |
| Input frequency |
40 - 70 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Number of output phases |
1 |
| Surge protection |
Yes |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Noise level |
55 dB |
| LED indicators |
Status |
| Audible alarm(s) |
Yes |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
8 kVA |
| Number of output phases |
1 |
| Output power |
8000 W |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
476 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
480 J |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output frequency regulation |
50/60 Hz |
| Crest factor |
3:1 |
| Auto-restart |
Yes |
| Noise level |
55 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| AC outlets quantity |
10 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
Hardwire |
| Number of output IEC jumpers |
3 |
| SmartConnect port |
No |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery capacity |
1728 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
1.5 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| LED indicators |
Status |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
18610.79 |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Packaging content |
Web/SNMP Management Card |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Warranty card |
Yes |
| Temperature sensor |
Yes |
| Software CD |
Yes |
| Package width |
600 mm |
| Package depth |
1000 mm |
| Package height |
461 mm |
| Package weight |
126.8 kg |
| Management card included |
Yes |
| Certificates |
|---|
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Management card included |
Yes |
| Warranty card |
Yes |
| Temperature sensor |
Yes |
| Software CD |
Yes |
| Packaging content |
Web/SNMP Management Card |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
263 mm |
| Depth |
715 mm |
| Height |
432 mm |
| Weight |
111.8 kg |
| Package width |
600 mm |
| Package depth |
1000 mm |
| Package height |
461 mm |
| Package weight |
126.8 kg |
| Logistics data |
|---|
| Products per pallet |
1 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Total carbon footprint (kg of CO2e) |
18610.79 |
| Other features |
|---|
| Packaging content |
Web/SNMP Management Card |
