Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
Description
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
15 kVA |
| Output power |
15000 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
415 V |
| Output operation voltage (max) |
230 V |
| Maximum current |
66 A |
| Efficiency |
93% |
| Emergency Power Off (EPO) |
Yes |
| Output frequency regulation |
0.1 Hz |
| Input current Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Number of output phases |
3 |
| Surge protection |
Yes |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Noise level |
58 dB |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
15 kVA |
| Number of output phases |
3 |
| Output power |
15000 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
415 V |
| Output operation voltage (max) |
230 V |
| Maximum current |
66 A |
| Efficiency |
93% |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Output frequency regulation |
0.1 Hz |
| Input current Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Auto-restart |
Yes |
| Noise level |
58 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| SmartSlot |
Yes |
| AC outlet types |
Hard Wire 5-wire (3PH + N + G) |
| Power plug |
Hardwire |
| SmartConnect port |
No |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Cold start |
Yes |
| Battery voltage |
192 V |
| Design |
|---|
| Rack capacity |
7U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| LED indicators |
Yes |

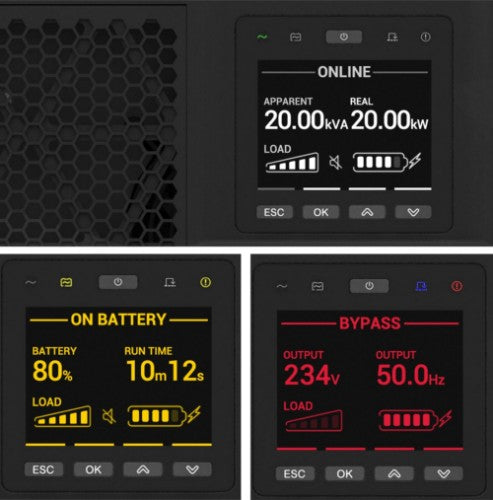

| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 2011.68 m |
| Non-operating altitude |
0 - 15240 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Packaging content |
|---|
| Cables included |
RS-232 |
| Management card included |
Yes |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
700 mm |
| Height |
306 mm |
| Weight |
142.5 kg |
| Package width |
590 mm |
| Package depth |
790 mm |
| Package height |
535 mm |
| Package weight |
156.7 kg |
| Packaging data |
|---|
| Cables included |
RS-232 |
| Package width |
590 mm |
| Package depth |
790 mm |
| Package height |
535 mm |
| Package weight |
156.7 kg |
| Management card included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
