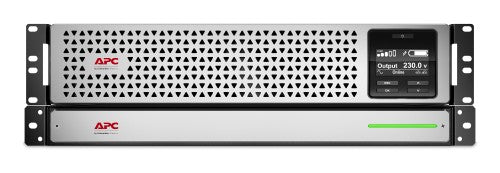

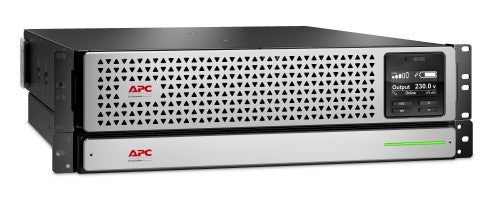

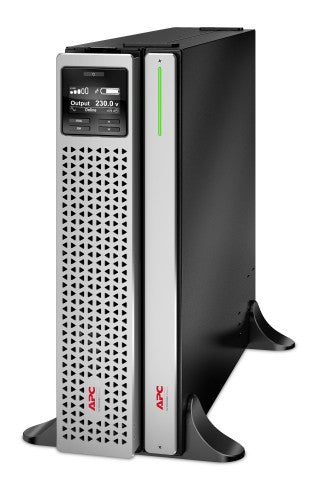

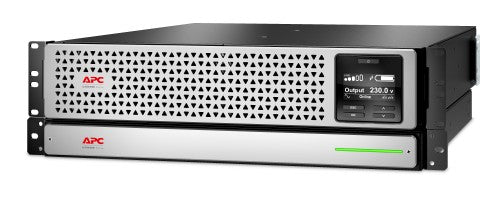

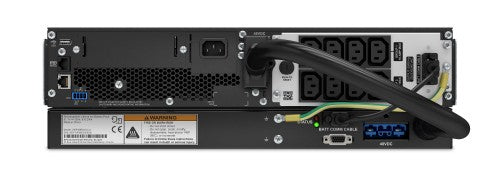

Smart-UPS On-Line, 1500VA, Rackmount 3U, 230V, 8x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit, W/ Lithium-ion external battery
Description

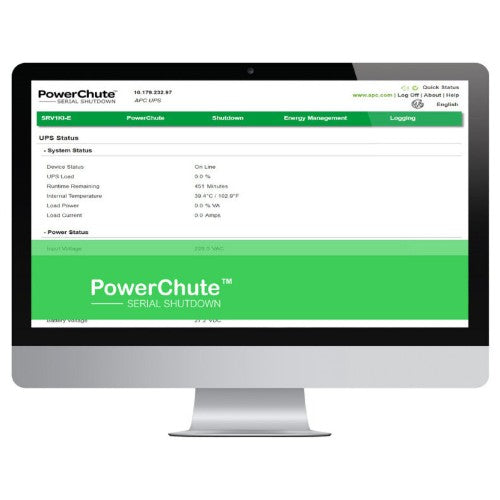

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1500VA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
1.5 kVA |
| Output power |
1350 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
340 J |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Waveform |
Sine |
| Auto-restart |
Yes |
| Noise level |
50 dB |
| LED indicators |
Status |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
1.5 kVA |
| Output power |
1350 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
340 J |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Waveform |
Sine |
| Crest factor |
3:1 |
| Auto-restart |
Yes |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Serial ports quantity |
1 |
| SmartConnect port |
No |
| Battery |
|---|
| Battery life (max) |
10 year(s) |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery recharge time |
6 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Design |
|---|
| Rack capacity |
3U |
| Form factor |
Rackmount |
| Product colour |
Black, Grey |
| International Protection (IP) code |
IP20 |
| Certification |
CE, EAC, RCM, VDE |
| LED indicators |
Status |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output voltage |
230 V |
| Output frequency |
50/60 Hz |
| Sustainability certificates |
Green Premium |
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
CE, EAC, RCM, VDE |
| Packaging content |
|---|
| Management card included |
No |
| Sustainability |
|---|
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
590 mm |
| Height |
128 mm |
| Weight |
25.7 kg |
| Package width |
600 mm |
| Package depth |
850 mm |
| Package height |
445 mm |
| Package weight |
37.4 kg |
| Packaging data |
|---|
| Package width |
600 mm |
| Package depth |
850 mm |
| Package height |
445 mm |
| Package weight |
37.4 kg |
| Management card included |
No |
| Logistics data |
|---|
| Products per pallet |
6 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Output voltage |
230 V |
