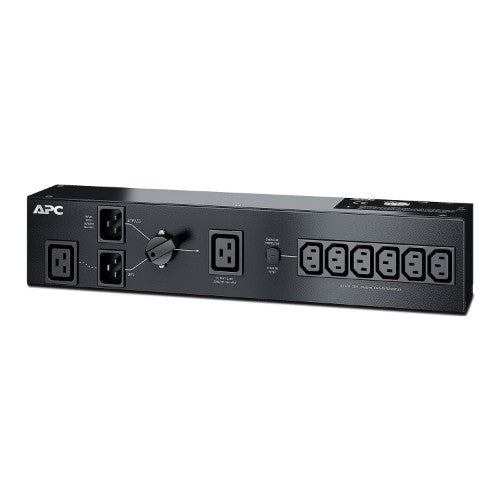

Service Bypass PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
Key Features
- APC SERVICE BYPASS PDU
- Extremely reliable service bypass panels designed for APC InfraStruXure Type A - Smart-UPS - and Symmetra UPS products.
- Load capacity 3000VA
- Allows easy maintenance of a UPS by isolating it from the critical load
- 2 years repair or replace warranty
Reasons To Buy
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Load test port provides simple connection for full testing of a Symmetra PX UPS
Description
The APC SBP3000RMI Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (6) IEC C13, (1) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Specifications
| Features |
|---|
| Rack capacity |
2U |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Certification |
VDE, REACH |
| Ports & interfaces |
|---|
| Input connections |
IEC 60320 C20 |
| Certificates |
|---|
| Certification |
VDE, REACH |
| Compliance certificates |
RoHS, REACH, WEEE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Depth |
76 mm |
| Height |
89 mm |
| Weight |
2.09 kg |
| Technical details |
|---|
| Compliance certificates |
RoHS, REACH, WEEE |
