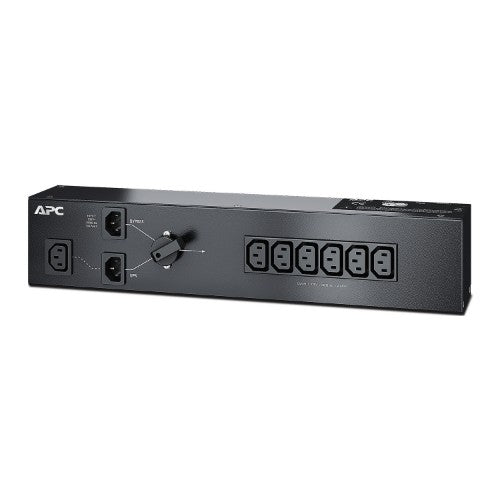

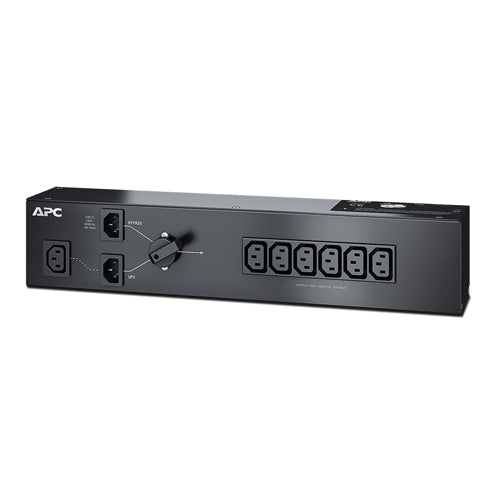

Service Bypass PDU, 230V 10AMP W/ (6) IEC C13
Key Features
- APC SERVICE BYPASS PDU
- Extremely reliable service bypass panels designed for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS products.
- Includes Rack mounting brackets & User manual
- 2 years repair or replace warranty
Reasons To Buy
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Load test port provides simple connection for full testing of a Symmetra PX UPS
Description
The APC Service Bypass Panel support voltage of 230V. It includes 6 IEC 60320 C13 and 1 IEC Jumpers outlets. It features a 2U rack-mount design and is rack mountable. The unit includes rack mounting brackets and user manual.
Specifications
| Features |
|---|
| Rack capacity |
2U |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Certification |
REACH, CE |
| Ports & interfaces |
|---|
| Input connections |
IEC 60320 C14 |
| Power |
|---|
| Maximum current |
10 A |
| Certificates |
|---|
| Certification |
REACH, CE |
| Compliance certificates |
RoHS, REACH, WEEE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
432 mm |
| Height |
89 mm |
| Weight |
2 kg |
| Technical details |
|---|
| Compliance certificates |
RoHS, REACH, WEEE |
