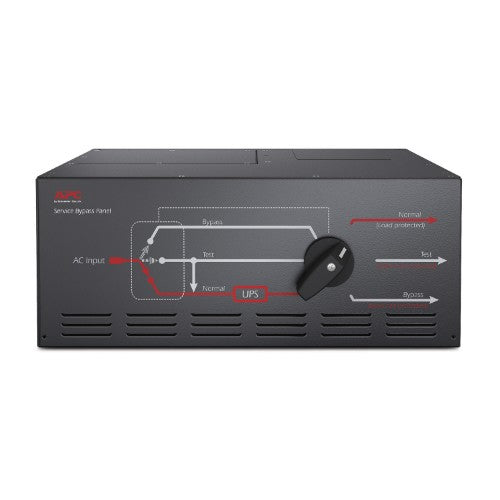

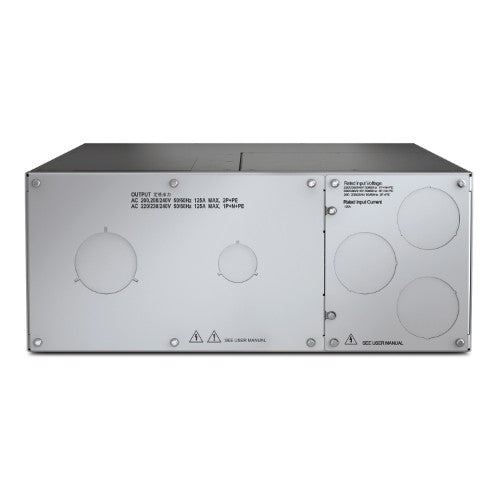

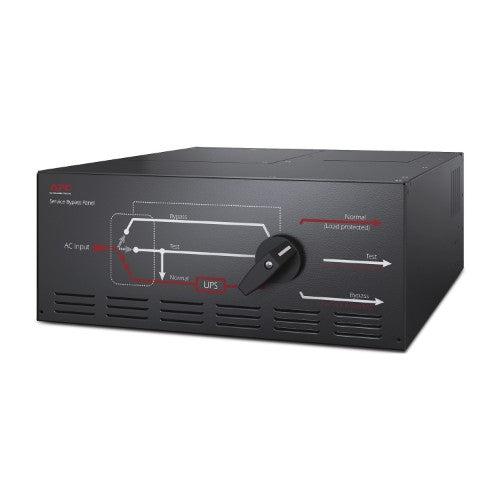

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output

APC

APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output

Read reviews
SKU: SBP20KP
Your price $4,104.10
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

Need bulk pricing for schools or councils? Request a quote via Contact Us.

Service Bypass Panel 200/208/230/240V 125A HW Input/Output

Key Features

  • Supports up to 125A, suitable for high-demand applications
  • Compatible with various input and output voltages
  • Includes a bypass switch for seamless maintenance
  • Designed for rack installation, saving space in data centers

Reasons To Buy

(3) Breaker maintenance bypass panel to isolate the UPS from the critical load

Load test port provides simple connection for full testing of a Symmetra PX UPS

Description

The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.

Specifications

Power
Output power capacity 20 kVA
Input operation voltage (min) 200 V
Input operation voltage (max) 240 V
Maximum current 125 A
Input frequency 50/60 Hz
Features
Country of origin China
Output power capacity 20 kVA
Input operation voltage (min) 200 V
Input operation voltage (max) 240 V
Maximum current 125 A
Input frequency 50/60 Hz
Ports & interfaces
AC outlet types Hard Wire 5-wire (3PH + N + G)
Design
Country of origin China
Rack capacity 4U
Form factor Tower
Product colour Black
Certification CSA; GOST
Operational conditions
Operating temperature (T-T) -20 - 50 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 4500 m
Non-operating altitude 0 - 15000 m
Technical details
Mounting front
Harmonized System (HS) code 85078000
Compliance certificates RoHS, REACH, WEEE
Packaging data
Package dimensions (WxDxH) 610 x 845 x 305 mm
Package weight 31.4 kg
Certificates
Certification CSA; GOST
Compliance certificates RoHS, REACH, WEEE
Weight & dimensions
Width 432 mm
Depth 554 mm
Height 178 mm
Weight 19.3 kg
Package weight 31.4 kg
Logistics data
Country of origin China
Customs product code (TARIC) 8536508000
Harmonized System (HS) code 85078000
Other features
Mounting front
Output connections hard wire 3-wire (H N + E) for 1 zone(s); hard wire 3-wire (2P + E) for 1 zone(s)
Package dimensions (WxDxH) 610 x 845 x 305 mm
Overload protection Yes
Operating temperature (T-T) -4 - 122 °F
Brand
APC
SKU
SBP20KP
