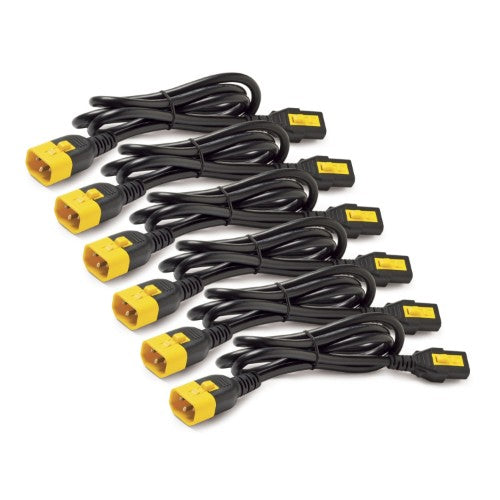

Power Cord Kit (6 ea), Locking, C13 to C14, 1.2m
Description

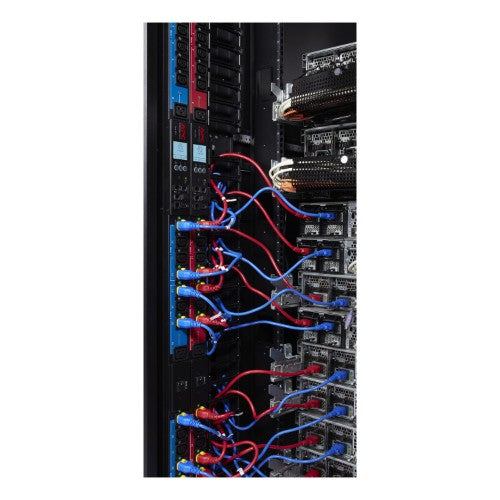

This Series of Rack Power Distribution Units (PDU) comes with Locking IEC Receptacles. The output and input connections are C13 to C14. The cord length is 1.2m. Locking IEC system allows the use of optional locking IEC power cords for added power cord security and enhanced reliability. No tools are required to disengage the locking feature and remove the plug from the locking receptacle.
Specifications
| Features |
|---|
| Connector 1 |
IEC C14 |
| Connector 2 |
C14 coupler |
| Cable length |
1.21 m |
| Certification |
CCC; PSE; VDE |
| Connector 2 gender |
Male |
| Connector 1 gender |
Female |
| Product colour |
Black |
| Power |
|---|
| Input current |
10 A |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-25 - 75 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating altitude |
0 - 3000 m |
| Certificates |
|---|
| Certification |
CCC; PSE; VDE |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Weight & dimensions |
|---|
| Width |
70 mm |
| Depth |
45 mm |
| Height |
240 mm |
| Weight |
1.01 kg |
| Certification |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Technical details |
|---|
| Harmonized System (HS) code |
84733080 |
| Total carbon footprint (kg of CO2e) |
134.2789006765848 |
| Compliance certificates |
RoHS, REACH, WEEE |
| Logistics data |
|---|
| Customs product code (TARIC) |
8544429090 |
| Harmonized System (HS) code |
84733080 |
| Total carbon footprint (kg of CO2e) |
134.2789006765848 |
| Other features |
|---|
| Input connection type |
IEC 60320 C14 |
