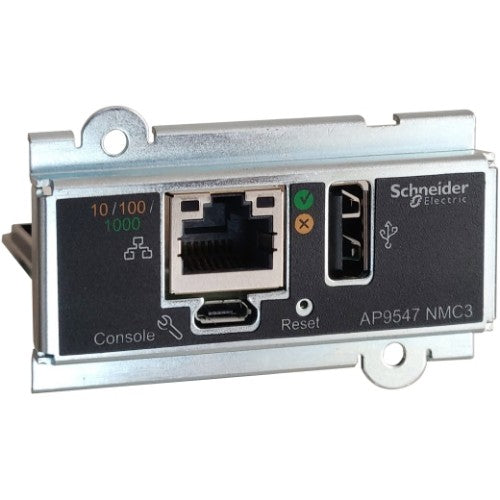

APC Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS

Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS

Description

The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure.  The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.

Specifications

Ports & interfaces
Internal	Yes
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Network
Ethernet interface type	Gigabit Ethernet, Fast Ethernet
MIB support	PowerNet MIB
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000
Web-based management	Yes
Security algorithms	HTTPS, SNMP, SNMPv3, SSH
Management protocols	BACnet
Design
Internal	Yes
Product colour	Black, Metallic
Certification	AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A
Reset button	Yes
Component for	Uninterruptible power supply (UPS)
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-15 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Width	52 mm
Depth	80 mm
Height	44 mm
Weight	50 g
Package width	170 mm
Package depth	240 mm
Package height	50 mm
Package weight	300 g
Protocols
Management protocols	BACnet
Packaging data
Package width	170 mm
Package depth	240 mm
Package height	50 mm
Package weight	300 g
Manual	Yes
Cables included	USB
Packaging content
Manual	Yes
Cables included	USB
Performance
MIB support	PowerNet MIB
Web-based management	Yes
Security algorithms	HTTPS, SNMP, SNMPv3, SSH
System requirements
Compatibility	Easy UPS 3 Series
Technical details
Sustainability compliance	Yes
Total carbon footprint (kg of CO2e)	69.41
Compliance certificates	Federal Communications Commission (FCC), ICES, RoHS, VCCI
Product type	Network management card
Compatibility	Easy UPS 3 Series
Certificates
Certification	AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A
Other features
Manual	Yes
Product type	Network management card
Management protocols	BACnet
Interface type	RJ-45
Compatibility	Easy UPS 3 Series
