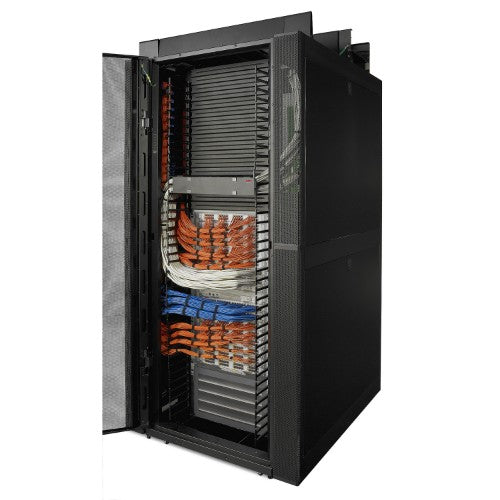

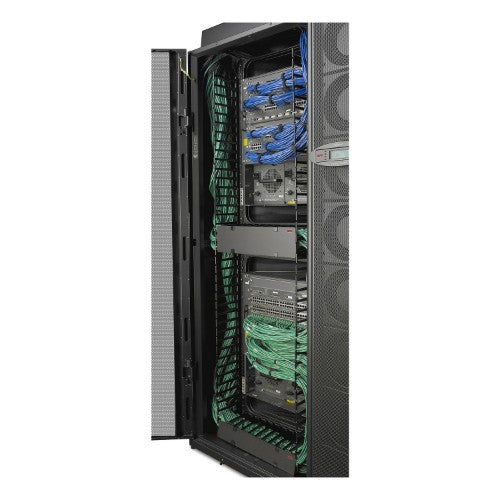

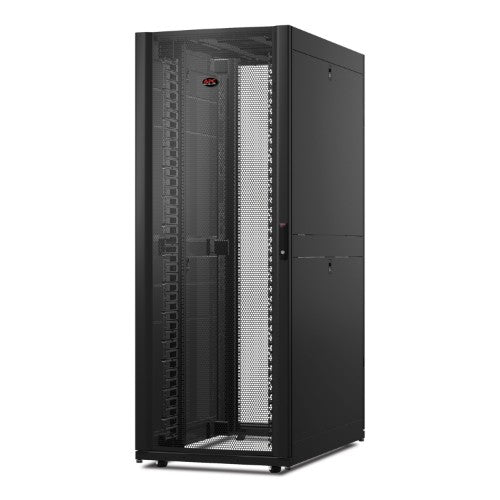

NetShelter SX, Networking Rack Enclosure, 42U, Black, 1991H x 750W x 1200D mm
Key Features
- Network rack design helps enable faster deployment of network switches
- Optimized rack mounting space designed specifically for large core networking switches
- Height designed to easily fit through standard doorways
- Standard server rack ready for medium to high density environments
Reasons To Buy

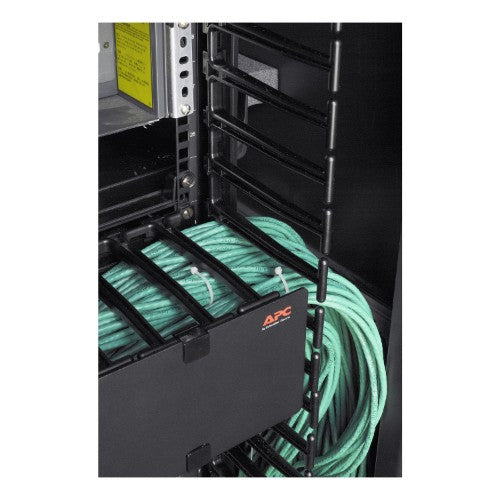

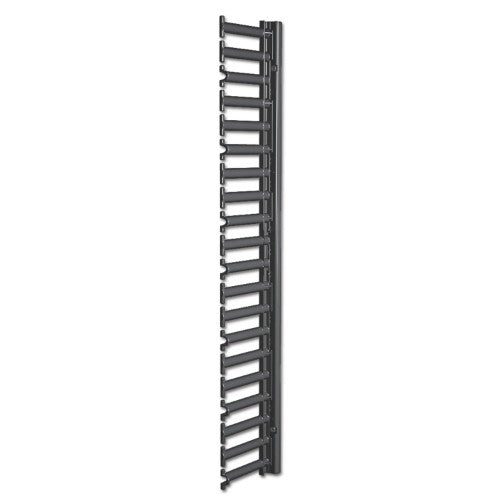

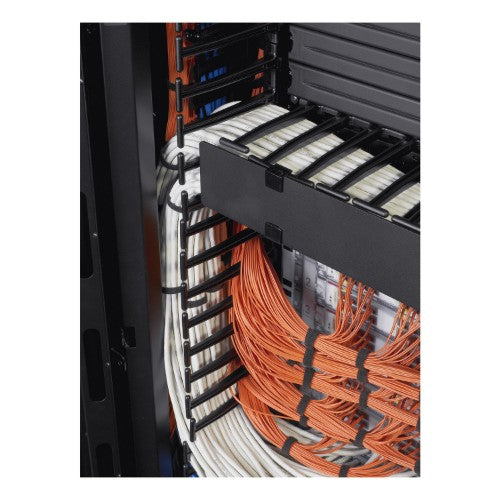

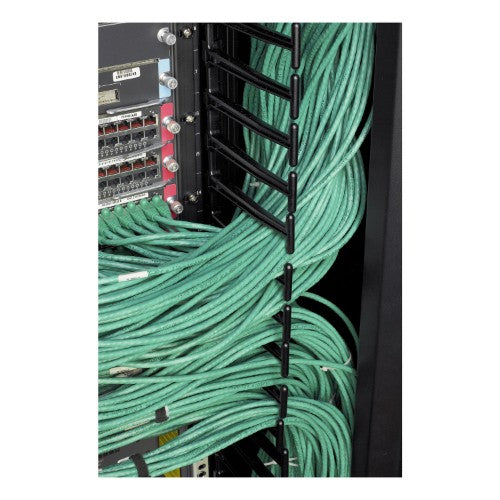

Integrated high density cable management
Decrease installation time while supporting the cabling needs of large networking switches.
Smooth plastic fingers provide proper bend radius.
Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.

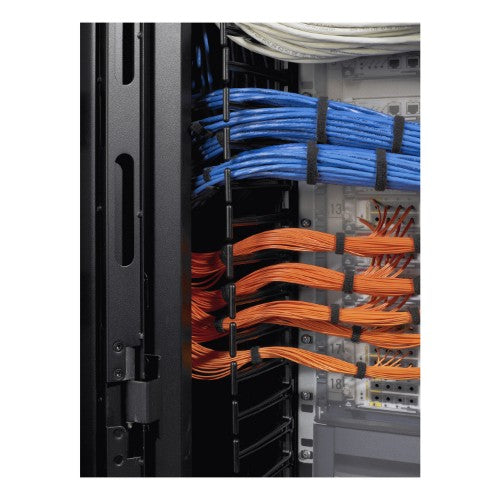

Improved cable access
Maintain and organize large cable bundles for improved efficiency with open vertical mounting rails and large cable openings in roof.
The vertical mounting rails are opened up for increased cable access and the roof design has large open areas for cable entry/exit from the enclosure.
Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
Optimized enclosure design for side-to-side airflow
Airflow management panels, left vertical mounting rail, and side airflow duct kit ensure proper side-to-side airflow to the networking switches from the cold aisle and provide isolation of hot air preventing it from re-entering the cold aisle. Additionally, the front left vertical mounting rail acts as an air block for exhaust air from networking switches.
Description
APC NetShelter SX Networking Rack Enclosure is industry standard server rack ready for medium to high density environments. Rack design offers 42RU height with 959 mm max equipment mounting depth, 1701 kg (3750 lb) static load, and 1021 kg (2250 kg) dynamic load. Network rack design helps enable faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management.
Specifications
| Features |
|---|
| Size (imperial) |
48.3 cm (19") |
| Rack capacity |
42U |
| Type |
Freestanding rack |
| Maximum weight capacity |
1704 kg |
| Product colour |
Black |
| Certification |
UL 60950-1, RoHS, REACH |
| Weight & dimensions |
|---|
| Package weight |
183.2 kg |
| Mounting depth (max) |
95.9 cm |
| Mounting depth (min) |
27.9 cm |
| Width |
750 mm |
| Depth |
1200 mm |
| Height |
1991 mm |
| Weight |
161.4 kg |
| Size (imperial) |
48.3 cm (19") |
| Packaging data |
|---|
| Package weight |
183.2 kg |
| Technical details |
|---|
| Harmonized System (HS) code |
85381000 |
| Total carbon footprint (kg of CO2e) |
642.8652969861699 |
| Compliance certificates |
RoHS, REACH, WEEE |
| Preferred mounting position |
no preference |
| Take-back system |
No |
| Sustainable packaging |
No |
| Packaging without single use plastic |
No |
| Rack capacity |
42U |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Certification |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Logistics data |
|---|
| Country of origin |
China |
| Customs product code (TARIC) |
9403208000 |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Package dimensions (WxDxH) |
850 x 1320 x 2118 mm |
| Dimensions (WxDxH) |
750 x 1200 x 1991 mm |
| Static load |
1363.64 kg |
| Dynamic load |
1022.73 kg |
