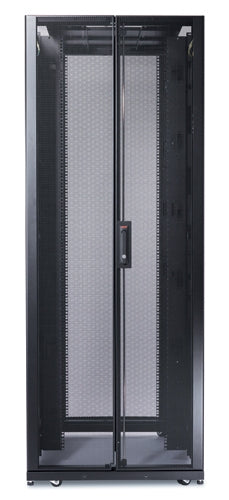

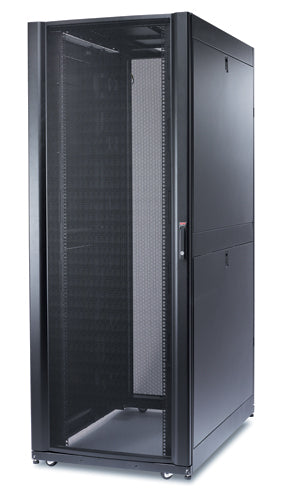

APC NetShelter SX 48U Freestanding rack Black

NetShelter SX 48U with 50mm Wide x 1200mm Deep Enclosure dvanced cooling, power distribution, and cable management for server.

Description

Integrated with APC InfraStruXure products Guaranteed compatibility

- APC cooling, power distribution, and cable management products work seamlessly with the enclosures to provide a complete IT infrastructure support system.

- Vendor-neutral mounting for guaranteed compatibility with all EIA-310 compliant 19" equipment. The APC "Fits Like a Glove" money back guarantee provides peace of mind that all of your EIA-310-D compliant rack-mount equipment will physically fit in a NetShelter SX enclosure.

Cable Access

- Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor.

Simple Selection

No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. APC has made it easy by handling the details and providing complete enclosures with single part numbers.

Ventilated

- Perforated front and rear doors provide ample ventilation for servers and networking equipment.

Half-height side panels

- Half-height quick release side panels reduce size and weight for easy handling and access to equipment. Side panels are lockable utilizing a single key with the doors.

Overhead cable management

- Overhead cable troughs and partitions install toollessly on the roof of the enclosure eliminating the need for ceiling mounted or underfloor mounted cable trays. Cable troughs and partitions are designed to manage both power and data cables while maintaining separation.

Safety

- The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.

Specifications

Features
Size (imperial)	48.3 cm (19")
Rack capacity	48U
Type	Freestanding rack
Maximum weight capacity	1704 kg
Product colour	Black
Certification	EIA-310-D
Weight & dimensions
Mounting depth (max)	104.8 cm
Mounting depth (min)	26.2 cm
Width	750 mm
Depth	1200 mm
Height	2258 mm
Weight	169.1 kg
Size (imperial)	48.3 cm (19")
Technical details
Harmonized System (HS) code	85381000
Total carbon footprint (kg of CO2e)	612.38
Rack capacity	48U
Logistics data
Harmonized System (HS) code	85381000
Other features
Dimensions (WxDxH)	750 x 1200 x 2258 mm
