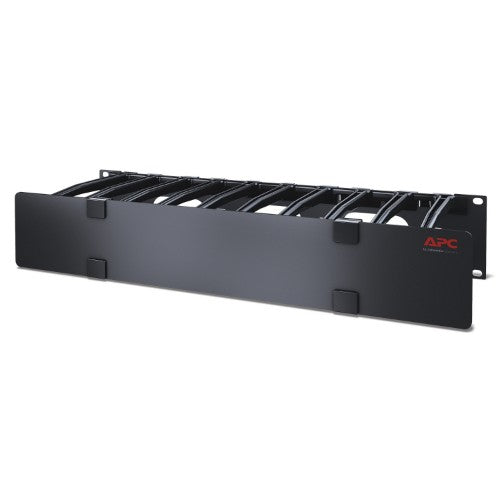

APC NetShelter Cable Management, Horizontal Cable Manager, 2U, Single Side with Cover, Black, 482.6 x 88.9 x 165.1 mm

NetShelter Cable Management, Horizontal Cable Manager, 2U, Single Side with Cover, Black, 482.6 x 88.9 x 165.1 mm

Key Features

• Features a 2U, 6 inches deep horizontal cable manager for high-capacity cable management
• Includes cable tie-off and access slots for front-to-back cable routing
• Provides double-sided cable management for enhanced organization

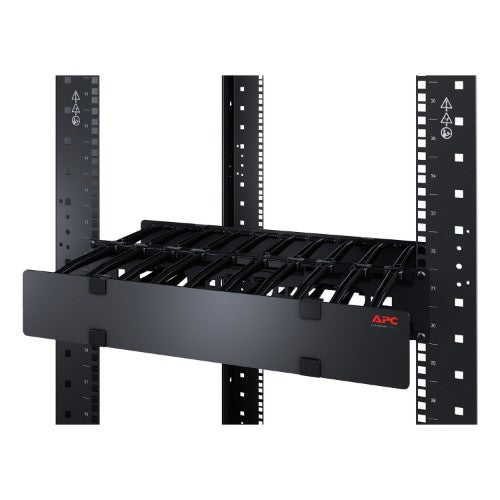

• Can be mounted in front or rear of the rack

Reasons To Buy

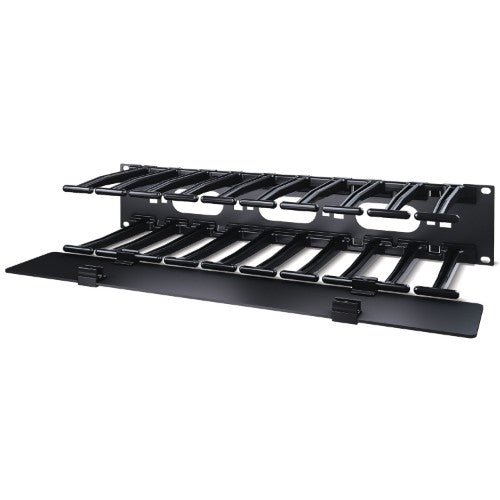

Covers with snap hinges provide trouble-free access to cables.

Supports toolless installation of AR8444 fiber spools.

Smooth plastic fingers provide proper bend radius.

Deployment flexibility allows sensor pods to be up to 1000 meters from a compatible NetBotz appliance.

Cable access slots in the backplane provide improved accessibility from the front to the rear of the enclosure for cable routing.

Unique design delivers cold air to the intake and isolation of hot and cold aisle ensuring cooler intake temperatures, increasing equipment life.

Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.

Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.

Double-sided capable

Horizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.

Description

"High density 2U, 6-in (150-mm) deep, horizontal cable manager with cover" "Features cable tie-off and cable access slots in the backplate for front to back cable pass-through"

Specifications

Features
On/off switch	No
Type	Cable management panel
Rack capacity	2U
Hot-swap	No
Product colour	Black
Certification	TAA compliance
Castor wheels	No
Built-in fan	No
Locking	No
Harmonized System (HS) code	85389099
Country of origin	United States
Cooling
Built-in fan	No
Weight & dimensions
Package width	521 mm
Package depth	200 mm
Package height	153 mm
Package weight	1.25 kg
Depth (max)	16.6 cm
Width	482.6 mm
Weight	1 kg
Height	889 mm
Depth	165.1 mm
Packaging data
Package width	521 mm
Package depth	200 mm
Package height	153 mm
Package weight	1.25 kg
Technical details
Harmonized System (HS) code	85389099
Total carbon footprint (kg of CO2e)	4.38684147413862
Compliance certificates	RoHS, REACH, WEEE
Preferred mounting position	no preference
Mounting	front; rear
Take-back system	No
Sustainable packaging	No
Packaging without single use plastic	No
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Logistics data
Harmonized System (HS) code	85389099
Customs product code (TARIC)	8302420090
