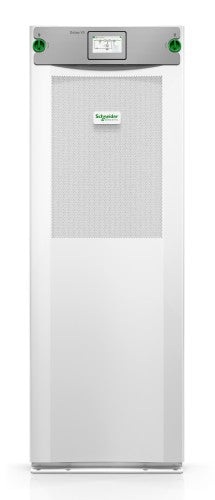

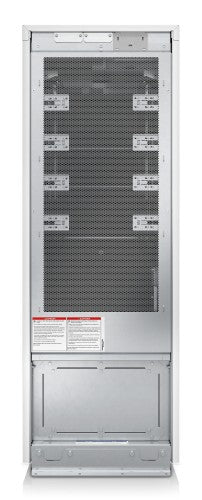

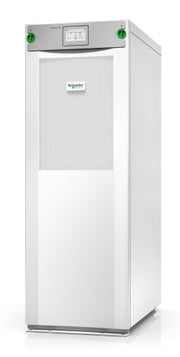

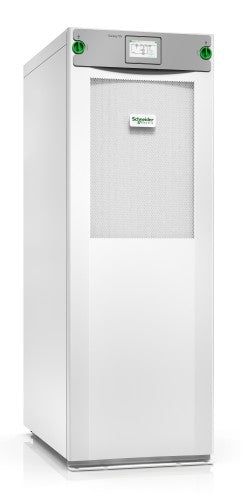

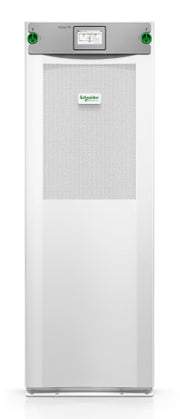

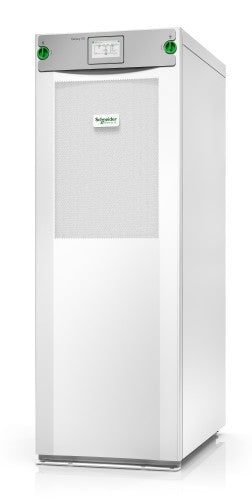

Galaxy VS UPS 20kW 400V for External Batteries, Start-up 5x8
Key Features
- Highly efficient, easy-to-deploy 20kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data
- Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry
Description
Highly efficient, easy-to-deploy 20kW, 400V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels. Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5x8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.
Includes: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-Up Service, Top and bottom cable entry
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
20 kVA |
| Output power |
20000 W |
| Input operation voltage (min) |
340 V |
| Input operation voltage (max) |
460 V |
| Output operation voltage (min) |
380 V |
| Output operation voltage (max) |
415 V |
| Maximum current |
37 A |
| Efficiency |
96.9% |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Input power factor |
0.99 |
| Crest factor |
2.5:1 |
| Input frequency |
40/70 Hz |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Waveform |
Sine |
| Noise level |
65 dB |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
20 kVA |
| Number of output phases |
3 |
| Number of input phases |
3 |
| Output power |
20000 W |
| Input operation voltage (min) |
340 V |
| Input operation voltage (max) |
460 V |
| Output operation voltage (min) |
380 V |
| Output operation voltage (max) |
415 V |
| Maximum current |
37 A |
| Efficiency |
96.9% |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Input power factor |
0.99 |
| Crest factor |
2.5:1 |
| Noise level |
65 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| SmartSlot |
Yes |
| AC outlet types |
Hard Wire 5-wire (3PH + N + G) |
| SmartConnect port |
No |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
White |
| International Protection (IP) code |
IP21 |
| Certification |
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| LED indicators |
Yes |

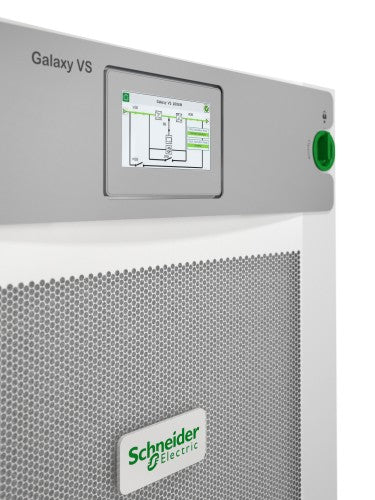

| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-25 - 55 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
10 - 80% |
| Operating altitude |
0 - 984.3 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Certification |
CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, FCC Part 15 Class A, IEC 60721-4-2 Level 2M2, UL 1778 5th edition |
| Packaging content |
|---|
| Management card included |
Yes |
| Weight & dimensions |
|---|
| Width |
521 mm |
| Depth |
847 mm |
| Height |
1485 mm |
| Weight |
210 kg |
| Package width |
640 mm |
| Package depth |
990 mm |
| Package height |
1680 mm |
| Package weight |
235 kg |
| Packaging data |
|---|
| Package width |
640 mm |
| Package depth |
990 mm |
| Package height |
1680 mm |
| Package weight |
235 kg |
| Management card included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Input connection type |
4-wire (3PH + G), 5-wire (3PH + N + G) |
| Nominal output voltage |
400 V |
| Nominal input voltage |
400 V |
