APC Easy UPS SRV RM 6000VA 230V uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W

Easy UPS On-Line SRV 6000VA RM 230V with Extended Runtime Battery Pack

Description

Always stay online and prevent data loss
An APC Easy-UPS On-Line, thanks to its double-conversion technology, always provides perfectly clean power to all connected equipment. Even power outages won't affect this. The APC Easy-UPS On-Line automatically provides backup power without switching. This prevents unwanted outages of a PC, server, storage device, or switch, for example. With the included shutdown software, you can even shut down critical IT hardware (Windows-based) in an automated and controlled manner. This prevents data loss, downtime, and physical damage to hardware.

Availability
The Easy-UPS On-Line has an internal bypass and uses double-conversion technology to maximize the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency generator. The On-Line double-conversion technology ensures clean, uninterrupted power to protected equipment, even when generator power is being used.

Maximum power
Thanks to the high unity power factor, this 6kVA UPS delivers an actual power output of up to 6000 watts.

Extend battery life

You can easily increase the number of minutes the APC SRV6KRILRK can independently provide backup power by connecting up to four additional external battery packs (SRV240RLBP-9A). This allows for a runtime of several hours.

Battery life

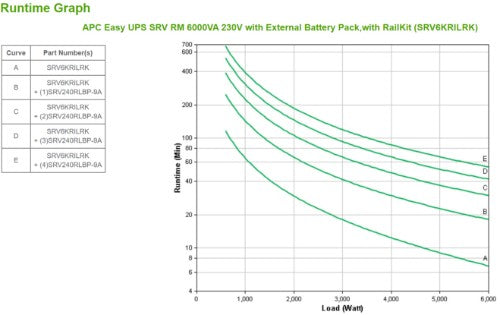

You can easily determine the expected battery life using the runtime graph, which you can find among the product images. This allows you to estimate how long the UPS will provide backup power at a given load.

Safety

This Easy-UPS On-Line protects connected devices against surges, such as those caused by lightning.

Easy to use
With the optional Easy-UPS On-Line Network Management Card (AP9544), you can connect these UPSs directly to your network. This makes the APC UPS easy to manage remotely via SNMP and allows it to send a shutdown signal to multiple, potentially virtual, servers via the network using PowerChute network shutdown software. If you want to monitor the UPSs using floating/dry contacts, choose the relay (VGL9901i) plug-in card.

Power distribution
The optional APC rack PDU AP7585 distributes power to 4x C19 and is easily connected to the hardwire output of the UPS.

Mounting

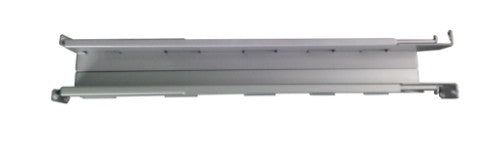

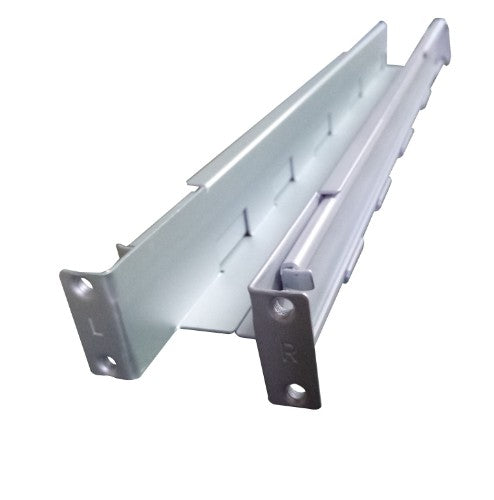

The UPS comes with a 19-inch rail kit for easy rack mounting.

Extend Lifespan
The standard included external battery cartridge (SRV240RLBP-9A) is easy, safe, and user-replaceable. This is without having to turn off the APC UPS or connected equipment. This allows you to easily and affordably extend the lifespan of this APC UPS, keeping your equipment always online.

Warranty
The SRV6KRILRK's manufacturer's warranty is 2 years and can be extended with up to 2x WEXTWAR1YR-SE-06, increasing the warranty by two one-year periods to 4 years respectively.

Included
The SRV6KRILRK consists of the SRVPM6KRIL + SRVRK1 + SRV240RLBP-9A + SRVRK2

Specifications

Power
Output frequency	50/60 Hz
Output power capacity	6 kVA
Output power	6000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	600 J
Efficiency	94%
Output voltage Total Harmonic Distortion (THD)	1%
Crest factor	3:1
Input frequency	40/70 Hz
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Surge protection	Yes
Waveform	Pure sine
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Output power capacity	6 kVA
Output power	6000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	600 J
Efficiency	94%
Surge protection	Yes
Waveform	Pure sine
Output voltage Total Harmonic Distortion (THD)	1%
Crest factor	3:1
Noise level	55 dB
Audible alarm(s)	Yes
Input frequency	40/70 Hz
Auto shut-off	Yes
Power source type	AC
Detachable power cord	Yes
Ports & interfaces
USB port	Yes
SmartSlot	Yes
AC outlet types	Hard Wire 3-wire (1PH + N + G)
SmartConnect port	No
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	9 h
Hot-swap battery	Yes
Battery voltage	240 V
Design
Rack capacity	5U
Form factor	Rackmount
Product colour	Black
International Protection (IP) code	IP20
Certification	CE, UKCA, EAC, TISI
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Certificates
Certification	CE, UKCA, EAC, TISI
Packaging content
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Management card included	No
Weight & dimensions
Width	438 mm
Depth	615 mm
Height	220 mm
Weight	78 kg
Packaging data
Cables included	RS-232, USB cable
Rack mount kit	Yes
Manual	Yes
Management card included	No
Logistics data
Harmonized System (HS) code	85078000
