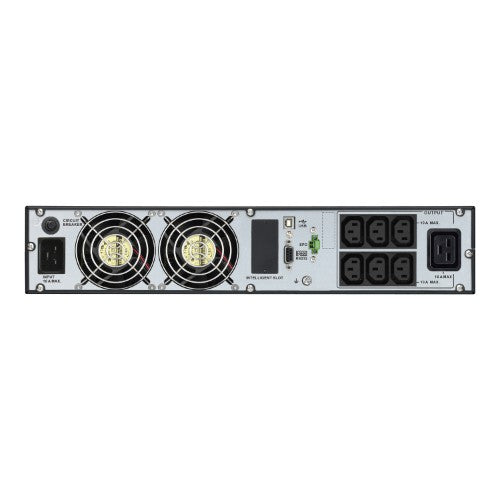

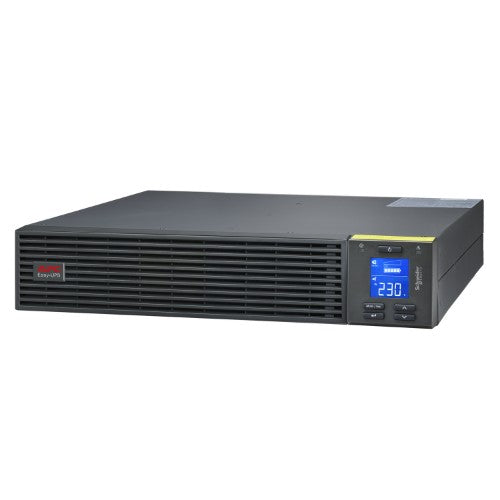

APC Easy UPS On-Line, 3kVA/2700W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/O rail kit

Easy UPS On-Line, 3kVA/2700W, Rackmount 2U, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD, W/O rail kit

Key Features

• 3kVA/2700W double-conversion on-line pure sine wave 2U rackmount UPS
• High operating efficiency in energy-saving ECO mode
• Prolonged battery life with intelligent temperature-compensated charging
• Easy-to-read LCD interface for detailed and accurate information on UPS status

Reasons To Buy

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

Intelligent Card Slot

Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms.

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Registering license keys unlocks the features of the data center management software.

Automatically starts up the connected equipment upon the return of utility power.

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Minimizes installation costs by enabling the use of smaller generators and cabling.

Prevents unauthorized access to the UPS.

Serial connectivity

Provides management of the UPS via a serial port.

Provides management of the UPS via a USB port (not available on all models).

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Description

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV202." "The UPS is compatible with SRVRK1 rail kit sold separately." "The UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."

Specifications

Power
Output power capacity	3 kVA
Output power	2700 W
Input operation voltage (min)	110 V
Input operation voltage (max)	285 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	945 J
Efficiency	88%
Crest factor	3:1
Single-phase input voltage supported	230 V
Input frequency	50/60 Hz
Ports & interfaces
Cable length	1.5 m
USB port	Yes
AC outlet types	C13 coupler
Power plug	C19 coupler
RS-232 ports	1
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Number of output phases	1
Number of input phases	1
Waveform	Sine
Noise level	50 dB
Features
Country of origin	China
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Number of output phases	1
Number of input phases	1
Output power	2700 W
Input operation voltage (min)	110 V
Input operation voltage (max)	285 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	945 J
Efficiency	88%
Waveform	Sine
Crest factor	3:1
Noise level	50 dB
Single-phase input voltage supported	230 V
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	4 h
Battery voltage	72 V
Replacement battery cartridge	APCRBCV202
Design
Country of origin	China
Rack capacity	2U
Product colour	Black
International Protection (IP) code	IP20
Certification	CE; UKCA; TISI
Cable length	1.5 m
Display type	LCD
Technical details
Output voltage	230 V
Mounting	front; horizontal
Total carbon footprint (kg of CO2e)	2217.534185534854
Compliance certificates	RoHS, REACH, WEEE
Certificates
Certification	CE; UKCA; TISI
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Packaging content
Rack mount kit	Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Weight & dimensions
Width	438 mm
Depth	632 mm
Height	86 mm
Weight	28.5 kg
Package width	794 mm
Package depth	570 mm
Package height	228 mm
Package weight	32.5 kg
Packaging data
Rack mount kit	Yes
Package width	794 mm
Package depth	570 mm
Package height	228 mm
Package weight	32.5 kg
Logistics data
Country of origin	China
Customs product code (TARIC)	8504409590
Total carbon footprint (kg of CO2e)	2217.534185534854
Other features
Output voltage	230 V
Mounting	front; horizontal
Input connection type	IEC 60320 C20
Output connection type	6 IEC 60320C13; 1 IEC 60320C19
