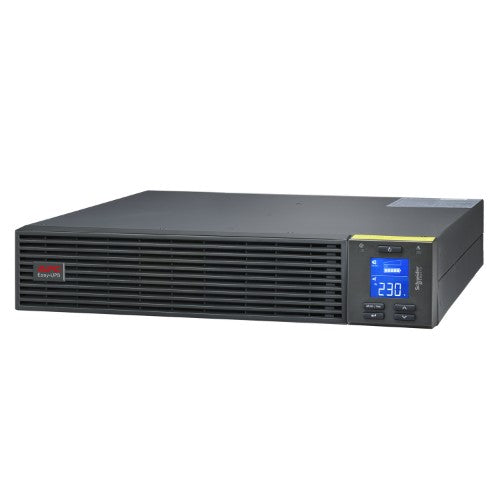

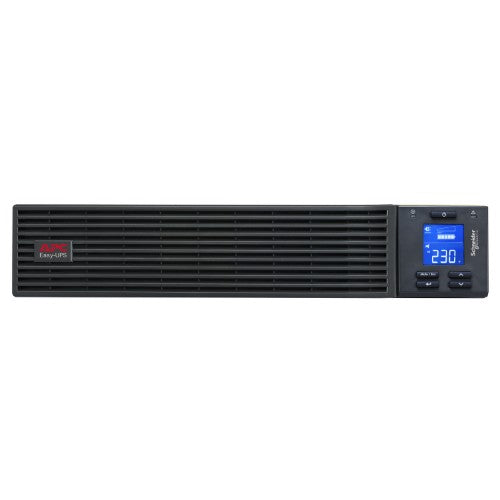

Easy UPS On-Line, 2000VA/1800W, Rackmount 2U, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD, W/O rail kit
Key Features
- 2000VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Prolonged battery life with intelligent temperature-compensated charging
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Reasons To Buy
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Intelligent Card Slot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Full color text and mimic diagrams that easily display modes of operation, systems parameters and alarms.
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Registering license keys unlocks the features of the data center management software.
Automatically starts up the connected equipment upon the return of utility power.
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Minimizes installation costs by enabling the use of smaller generators and cabling.
Prevents unauthorized access to the UPS.
Serial connectivity
Provides management of the UPS via a serial port.
Provides management of the UPS via a USB port (not available on all models).
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Description

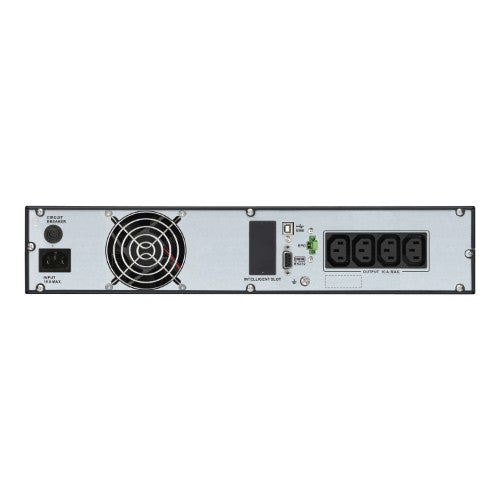

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 2000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C14 input and 4x IEC 320 C13 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV201." "The UPS is compatible with SRVRK1 rail kit sold separately." "The UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1800 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
945 J |
| Efficiency |
88% |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output voltage regulation |
3% |
| Crest factor |
3:1 |
| Single-phase input voltage supported |
230 V |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| USB port |
Yes |
| Serial interface |
Yes |
| AC outlets quantity |
3 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| USB 2.0 ports quantity |
1 |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Surge protection |
Yes |
| Waveform |
Sine |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Country of origin |
China |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
2 kVA |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Output power |
1800 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
285 V |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
945 J |
| Efficiency |
88% |
| Surge protection |
Yes |
| Waveform |
Sine |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Output voltage regulation |
3% |
| Crest factor |
3:1 |
| Noise level |
50 dB |
| Audible alarm(s) |
Yes |
| Single-phase input voltage supported |
230 V |
| Input frequency |
40 - 70 Hz |
| Power source type |
AC |
| Detachable power cord |
Yes |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Battery voltage |
48 V |
| Battery capacity |
9 Ah |
| Replacement battery cartridge |
APCRBCV201 |
| Design |
|---|
| Country of origin |
China |
| Rack capacity |
2U |
| Form factor |
Rackmount |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| Certification |
CE; UKCA; TISI |
| Cable length |
1.5 m |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Output voltage |
230 V |
| Output frequency |
50/60 Hz |
| Mounting |
front; horizontal |
| Compliance certificates |
RoHS, REACH, WEEE |
| Certificates |
|---|
| Certification |
CE; UKCA; TISI |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Packaging content |
|---|
| Cables included |
Output power cable, RS-232, USB cable, Input power cable |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Certification |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
438 mm |
| Depth |
462 mm |
| Height |
86 mm |
| Weight |
18.8 kg |
| Package width |
525 mm |
| Package depth |
235 mm |
| Package height |
355 mm |
| Package weight |
18.9 kg |
| Packaging data |
|---|
| Cables included |
Output power cable, RS-232, USB cable, Input power cable |
| Rack mount kit |
Yes |
| Manual |
Yes |
| Package width |
525 mm |
| Package depth |
235 mm |
| Package height |
355 mm |
| Package weight |
18.9 kg |
| Logistics data |
|---|
| Country of origin |
China |
| Customs product code (TARIC) |
8504409590 |
| Other features |
|---|
| Output voltage |
230 V |
| Mounting |
front; horizontal |
| Input connection type |
IEC 60320 C14 |
| Output connection type |
4 IEC 60320C13 |
