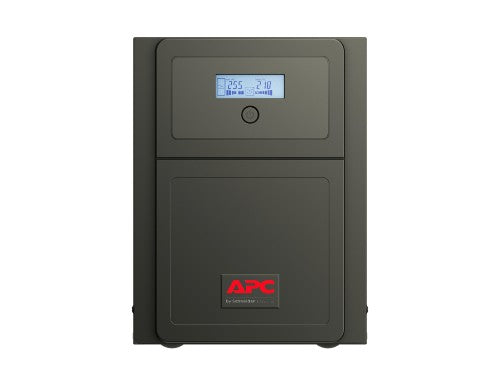

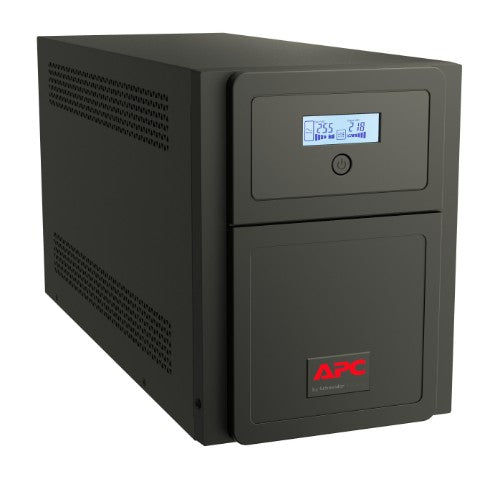

Easy UPS 1 Ph Line Interactive, 2000VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support
Description

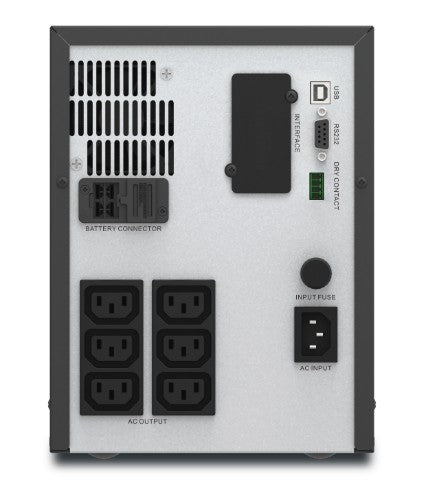

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 2000VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV208.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power capacity |
2 kVA |
| Output power |
1400 W |
| Input operation voltage (min) |
157 V |
| Input operation voltage (max) |
303 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Maximum current |
20 A |
| Output voltage regulation |
-1 - 1% |
| Crest factor |
3:1 |
| Input frequency |
45/65 Hz |
| Performance |
|---|
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Power protection features |
Overload, Short circuit |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
45 dB |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology |
Line-Interactive |
| Output power capacity |
2 kVA |
| Output power |
1400 W |
| Input operation voltage (min) |
157 V |
| Input operation voltage (max) |
303 V |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Maximum current |
20 A |
| Waveform |
Sine |
| Power protection features |
Overload, Short circuit |
| Output voltage regulation |
-1 - 1% |
| Crest factor |
3:1 |
| Automatic Voltage Regulation (AVR) |
Yes |
| Noise level |
45 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
45/65 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| SmartSlot |
No |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
IEC 320 |
| SmartConnect port |
No |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of batteries supported |
4 |
| Battery recharge time |
4 h |
| Cold start |
Yes |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| International Protection (IP) code |
IP20 |
| LED indicators |
Yes |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Harmonized System (HS) code |
85078000 |
| Packaging content |
|---|
| Cables included |
USB cable |
| Manual |
Yes |
| Management card included |
No |
| Weight & dimensions |
|---|
| Width |
180 mm |
| Depth |
455 mm |
| Height |
240 mm |
| Weight |
23.5 kg |
| Battery width |
32.6 cm |
| Battery depth |
60.1 cm |
| Battery height |
41 cm |
| Battery weight |
26.9 kg |
| Packaging data |
|---|
| Cables included |
USB cable |
| Manual |
Yes |
| Management card included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
