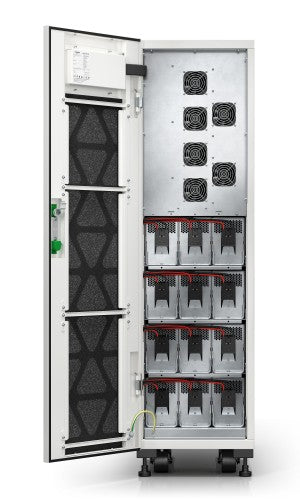

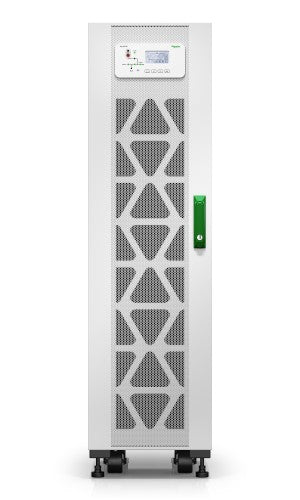

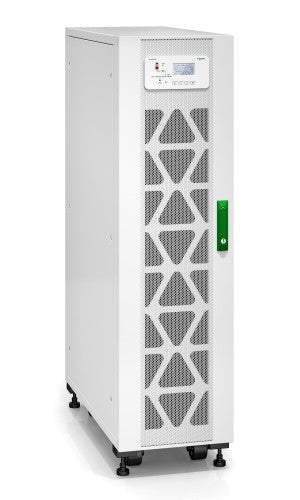

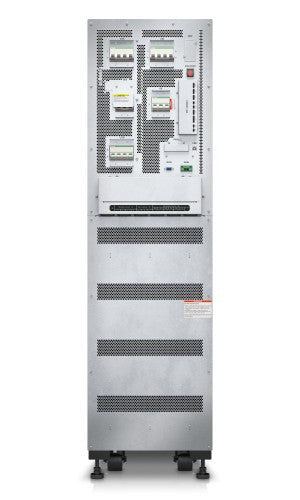

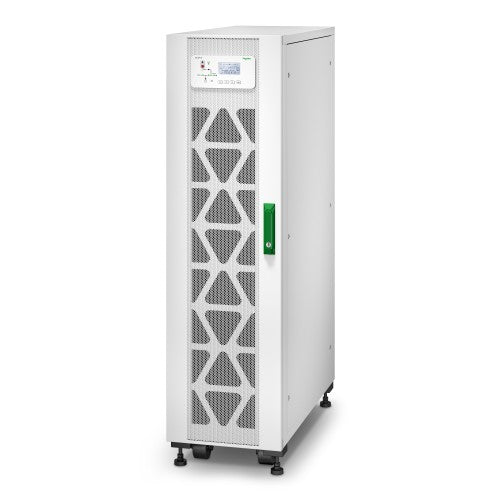

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
SAVE 25%

APC

APC Easy 3S uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

Read reviews
SKU: E3SUPS20KHB
Your price $9,632.21
List price $12,760.00 Save $3,127.79
GST included · AUD
New Sealed in box Australian stock Warehouses in Sydney, Melbourne, Brisbane, Adelaide and Perth Delivery only - Pickup unavailable 2-5 Business days metro delivery. Australian manufacturer Warranty

In stock — ready to ship

Estimate shipping

Enter an Australian postcode for a quick estimate.

Final shipping options and price are confirmed at checkout.

  • Local Australian stock
  • Australian manufacturer warranty
  • GST included
  • Secure checkout

Need bulk pricing for schools or councils? Request a quote via Contact Us.

APC Easy 3S, Double-conversion (Online), 20 kVA, 20000 W, Pure sine, 304 V, 477 V

Description

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. AC outlet types: Hardwire. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH

Specifications

Power
Output frequency 50/60 Hz
Output power capacity 20 kVA
Output power 20000 W
Input operation voltage (min) 304 V
Input operation voltage (max) 477 V
Output operation voltage (min) 380 V
Output operation voltage (max) 415 V
Maximum current 37 A
Output voltage Total Harmonic Distortion (THD) 3%
Input power factor 0.99
Input current Total Harmonic Distortion (THD) 3%
Input frequency 45/65 Hz
Performance
UPS topology Double-conversion (Online)
Number of output phases 3
Number of input phases 3
Waveform Pure sine
Features
Output frequency 50/60 Hz
UPS topology Double-conversion (Online)
Output power capacity 20 kVA
Number of output phases 3
Number of input phases 3
Output power 20000 W
Input operation voltage (min) 304 V
Input operation voltage (max) 477 V
Output operation voltage (min) 380 V
Output operation voltage (max) 415 V
Maximum current 37 A
Waveform Pure sine
Output voltage Total Harmonic Distortion (THD) 3%
Input power factor 0.99
Input current Total Harmonic Distortion (THD) 3%
Input frequency 45/65 Hz
Ports & interfaces
SmartSlot Yes
AC outlet types Hardwire
SmartConnect port No
Battery
Battery technology Sealed Lead Acid (VRLA)
Number of batteries supported 3
Battery voltage 220 V
Design
Form factor Tower
Product colour White
International Protection (IP) code IP20
Certification CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Display type LED
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 40 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 999.9 m
Non-operating altitude 0 - 15000 m
Technical details
Output voltage 400 V
Output frequency 50/60 Hz
Harmonized System (HS) code 85078000
Compliance certificates RoHS
Certificates
Certification CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Compliance certificates RoHS
Packaging content
Quick installation guide Yes
Management card included No
Weight & dimensions
Width 380 mm
Depth 928 mm
Height 1400 mm
Weight 122 kg
Package width 563 mm
Package depth 1014 mm
Package height 1640 mm
Package weight 158 kg
Packaging data
Quick installation guide Yes
Package width 563 mm
Package depth 1014 mm
Package height 1640 mm
Package weight 158 kg
Management card included No
Logistics data
Harmonized System (HS) code 85078000
Other features
Output voltage 400 V
Brand
APC
SKU
E3SUPS20KHB
