Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
Description
This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.
Specifications
| Power |
|---|
| Output power capacity |
0.5 kVA |
| Output power |
300 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
300 V |
| Surge energy rating |
310 J |
| Efficiency |
99% |
| Output frequency regulation |
47 - 63 Hz |
| Input frequency |
50/60 Hz |
| Ports & interfaces |
|---|
| Cable length |
1.83 m |
| USB port |
Yes |
| SmartSlot |
No |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Number of output IEC jumpers |
2 |
| SmartConnect port |
No |
| Performance |
|---|
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Standby (Offline) |
| Surge protection |
Yes |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Waveform |
Sine |
| Power protection features |
Overload |
| Noise level |
40 dB |
| LED indicators |
Battery replacement |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Audible alarm modes |
Low battery alarm, Overload alarm |
| UPS topology |
Standby (Offline) |
| Output power capacity |
0.5 kVA |
| Output power |
300 W |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
300 V |
| Surge energy rating |
310 J |
| Efficiency |
99% |
| Surge protection |
Yes |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Waveform |
Sine |
| Power protection features |
Overload |
| Output frequency regulation |
47 - 63 Hz |
| Noise level |
40 dB |
| Audible alarm(s) |
Yes |
| Input frequency |
50/60 Hz |
| Battery |
|---|
| Battery life (max) |
6 year(s) |
| Battery capacity |
83 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
8 h |

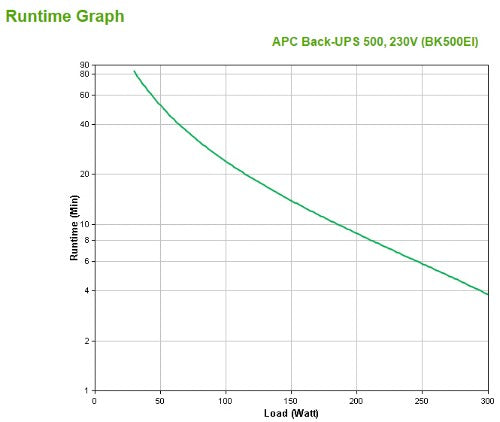

| Typical backup time at half load |
13.8 min |
| Typical backup time at full load |
3.8 min |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Beige |
| Certification |
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
| Cable length |
1.83 m |
| LED indicators |
Battery replacement |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR, Green Premium |
| Harmonized System (HS) code |
85078000 |
| Compliance certificates |
RoHS |
| Packaging data |
|---|
| Packaging content |
Detachable 1.2m IEC power cord
Detachable 1.8 m IEC power cord |
| Quick installation guide |
Yes |
| Cables included |
Phone (RJ-11), USB cable |
| Warranty card |
Yes |
| Software CD |
Yes |
| Bundled software |

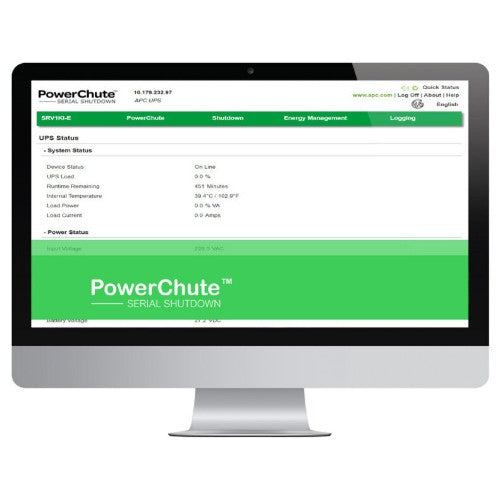

PowerChute Serial Edition |
| Package width |
241 mm |
| Package depth |
368 mm |
| Package height |
178 mm |
| Package weight |
7.05 kg |
| Management card included |
No |
| Certificates |
|---|
| Certification |
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Phone (RJ-11), USB cable |
| Management card included |
No |
| Warranty card |
Yes |
| Software CD |
Yes |
| Packaging content |
Detachable 1.2m IEC power cord
Detachable 1.8 m IEC power cord |
| Bundled software |
PowerChute Serial Edition |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, Green Premium |
| Weight & dimensions |
|---|
| Width |
91 mm |
| Depth |
284 mm |
| Height |
165 mm |
| Weight |
6.32 kg |
| Package width |
241 mm |
| Package depth |
368 mm |
| Package height |
178 mm |
| Package weight |
7.05 kg |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Products per pallet |
48 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Packaging content |
Detachable 1.2m IEC power cord
Detachable 1.8 m IEC power cord |
| Filtering |
Yes |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
