ALOGIC TB4D3TB laptop dock/port replicator Wired Thunderbolt 4 Black

Thunderbolt 4 BLAZE Docking Station

Key Features

• 3 x USB-C Thunderbolt 4/USB 4.0 (40 Gbps/3A), 3 x USB-A 3.1 Gen 2 (10Gbps), 1 x USB-A 2.0 (480Mbps) BC1.2 (1.5A), 1 x 3.5mm Combo Jack, , 1 x Gigabit Ethernet Port,1 x SD Card Reader (SD 4.0)
• Dual 4K@60Hz Display Support
• Up to 96W power to laptop

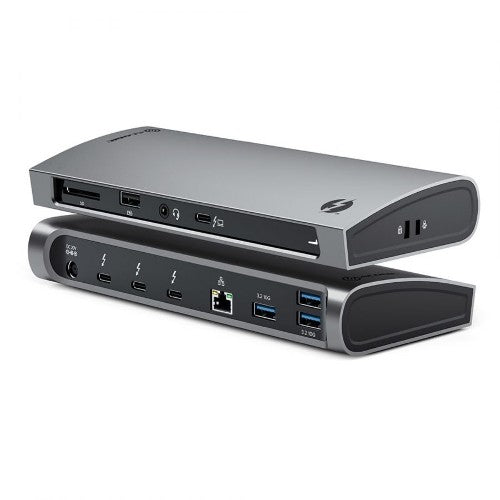

• Premium Aluminium Design

Description

Thunderbolt 4 Blazing Performance

Designed for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals.

Single Cable Simplicity –96W Charging

This dock truly does it all –and all over a single cable. In addition to transferring data and video over a single connection to the computer, the dock can also provide up to 96W of power to charge laptops using USB Power Delivery technology. This is sufficient to power almost any notebook PC including 16” MacBook devices.

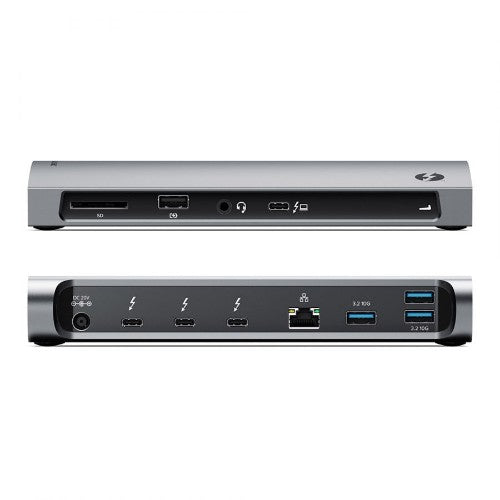

Comprehensive Connectivity

The ALOGIC BLAZE dock features a comprehensive range of ports to allow connection of all standard peripherals including:
- 3 x Thunderbolt/USB-C (40G)
- 3 x USB-A (10G)
- 1 x USB-A with Mobile Device Charging (480Mbps)
- Gigabit Ethernet
- Combo Headphone/Microphone Jack
- SD 4.0 Card Reader

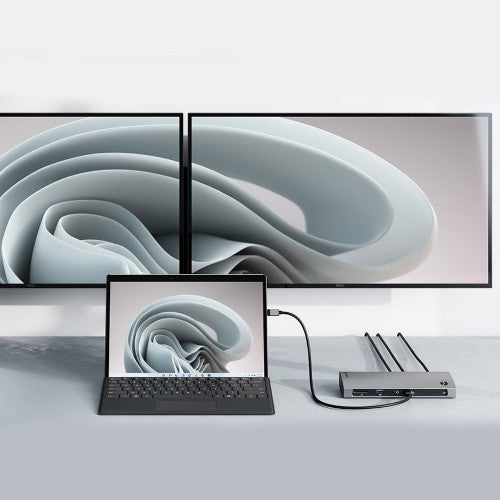

Dual Ultra-High Definition Display: 4K@60Hz

The BLAZE dock provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB-C (DP Alt Mode) as follows:

- Thunderbolt 3 or 4: Dual 4K monitors at 60Hz
- USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Connectivity technology	Wired
USB 2.0 ports quantity	1
Host interface	Thunderbolt 4
Ethernet LAN (RJ-45) ports	1
Microphone in	No
Headphone connectivity	3.5 mm
DC-in jack	Yes
Thunderbolt 4 ports quantity	3
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Black
Card reader integrated	Yes
Compatible memory cards	SD
Compatibility	Apple, Microsoft
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Yes
HD type	4K Ultra HD
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium
Maximum refresh rate	60 Hz
Storage
Card reader integrated	Yes
Compatible memory cards	SD
Power
Power consumption (max)	96 W
Power supply	135 W
Weight & dimensions
Width	84 mm
Depth	194 mm
Height	30 mm
Design
Product colour	Black
Cable lock slot	Yes
LED indicators	Yes
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Cables included	AC
AC adapter included	Yes
Quantity per pack	1 pc(s)
