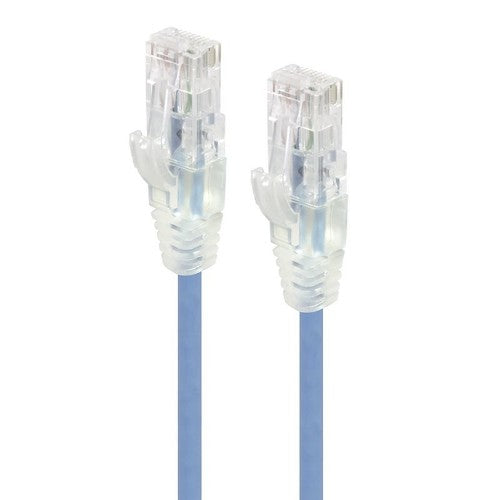

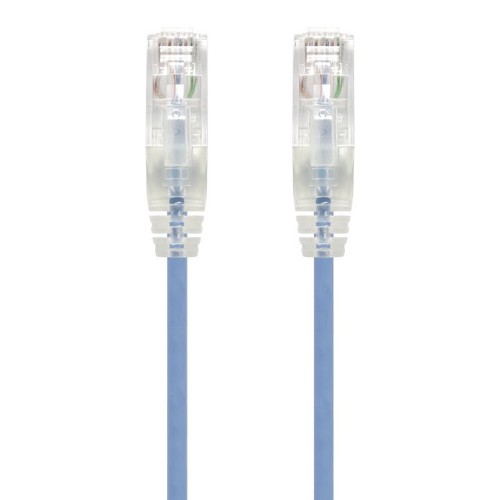

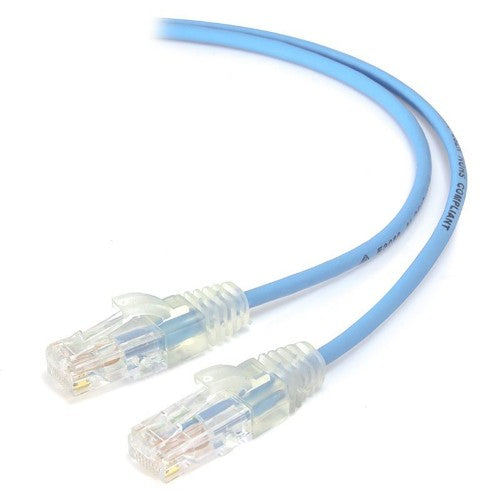

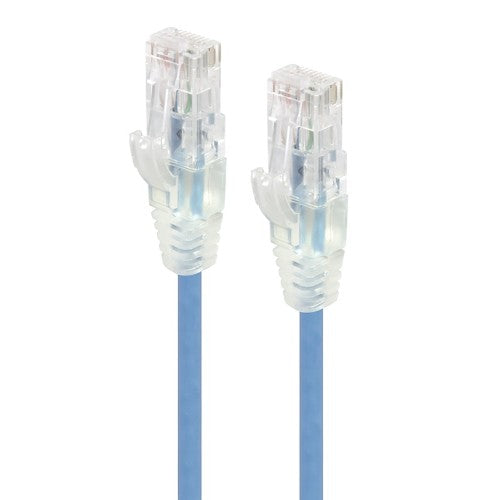

1m Blue Series Alpha Ultra Slim Cat6 Network Cable, UTP, 28AWG
Key Features
- Exceeds all ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Edition 2.1 electrical performance requirements.

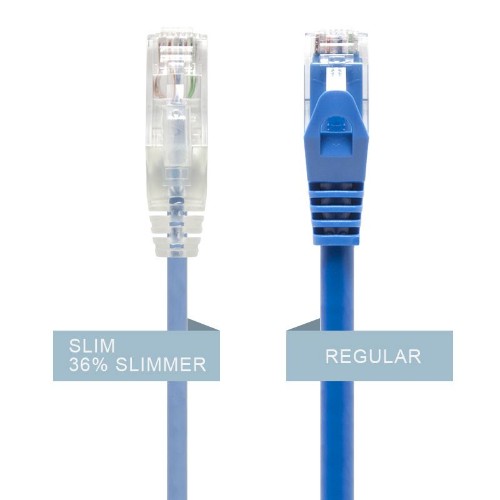

- Ultra Slim design saves valuable space.
- Suitable for high density environment.
- Flexible cable allows for high bend radius.
- 50u gold plated connected connectors and 100% copper construction.
- Fully Moulded tangle Free Snag-less boot allow for a clean and time saving install and move.
- Available in ten colours for colour coding your installation.
Description
The Ultra Slim Cat6 UTP, 28AWG, Network Cable joins the Series Alpha Structured Cabling Solution from ALOGIC. The Ultra Slim Cat6 Cable are constructed of 28 AWG, unshielded, twisted pair, stranded copper with LSZH jacket and high performance RJ45 modular plugs.
Specifications
| Features |
|---|
| Product colour |
Blue |
| Connector shielding |
No |
| Snagless cable boot |
Yes |
| Conductor material |
Copper |
| Cable length |
1 m |
| Cable standard |
Cat6 |
| Cable shielding |
U/UTP (UTP) |
| Connector 1 |
RJ-45 |
| Connector 2 |
RJ-45 |
| Connector contacts plating |
Gold |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Conductor type |
Stranded |
| AWG wire size |
28 |
| Certification |
ANSI/TIA-568-C.2 Category 6, ISO 11801 Class E Edition 2.1, IEC 60603-7, IEEE 802.3af/802.3at, RoHS |
| Cable shape |
Round |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Weight & dimensions |
|---|
| Outer diameter |
3.8 mm |
